Simpson Strong-Tie BPS 5/8-3 (3 in. x 3 in.) Slotted Bearing Plate with 5/8" Bolt Dia.

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10

Simpson Strong-Tie BPS 5/8-3 (3 in. x 3 in.) Slotted Bearing Plate with 5/8" Bolt Dia.

Simpson BPS 5/8-3 Description

The Simpson BPS 5/8-3 Slotted Bearing Plate is designed for structural reinforcement and stability in wood and steel construction projects.

Simpson BPS 5/8-3 Includes

  • (1) Slotted Bearing Plate with 5/8" Bolt Dia.

Simpson BPS 5/8-3 Features

  • Eliminates the need for standard-cut washers when used with Titen HD heavy-duty screw anchors
  • Slotted hole allows for adjustability
  • May be ordered with a hot-dip galvanized (HDG) finish for higher corrosion resistance
  • Heavy-duty construction from 3 Gauge steel
  • Compact 3" x 3" size for versatile applications

Simpson BPS 5/8-3 Applications

  • Wood-to-concrete fastening for structural reinforcement
  • Masonry anchoring for stability in construction projects
  • Heavy framing and critical structural connections

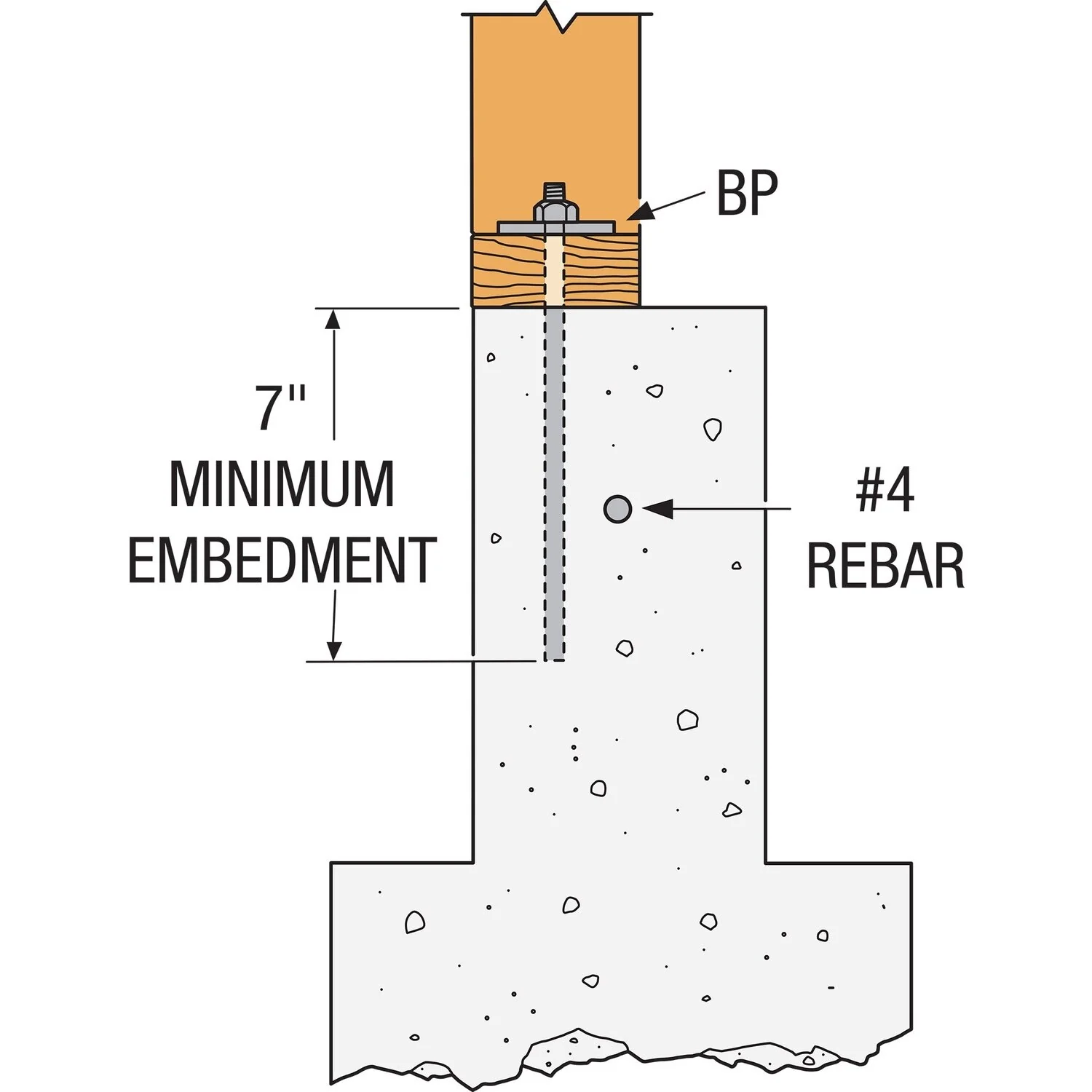

Simpson BPS 5/8-3 Installation Overview

  1. Position edge of plate washer within 1/2" of sheathed edge of sill plate for shearwall applications
  2. Tighten BPS to each anchor bolt with nut and standard cut-washer
  3. Ensure proper alignment and secure fastening

Simpson BPS 5/8-3 Specifications

Material 3 Gauge Steel
Finish Hot Dip Galvanized
Bolt Diameter 5/8"
Width 3"
Length 3"
Weight 0.6 lb

NOTE: Standard cut-washer required with BPS slotted bearing plates. Washer not required when used with Titen HD heavy-duty screw anchors.
