Simpson Strong-Tie BP 1/2-R (2" x 2") Bearing Plate with 1/2" Bolt Diameter

Simpson Strong-Tie BP 1/2-R Description

The BP 1/2-R Bearing Plate provides a greater bearing surface, replacing standard cut-washers, and is designed for wood-to-concrete fastening applications.

Simpson Strong-Tie BP 1/2-R Includes

  • (1) BP 1/2-R Bearing Plate

Simpson Strong-Tie BP 1/2-R Features

  • Replaces standard cut-washers while providing a greater bearing surface
  • Sized for most common anchor bolt sizes
  • Available in HDG for higher corrosion resistance

Simpson Strong-Tie BP 1/2-R Applications

  • Fastening wood to concrete or masonry surfaces
  • Shearwall applications requiring precise positioning

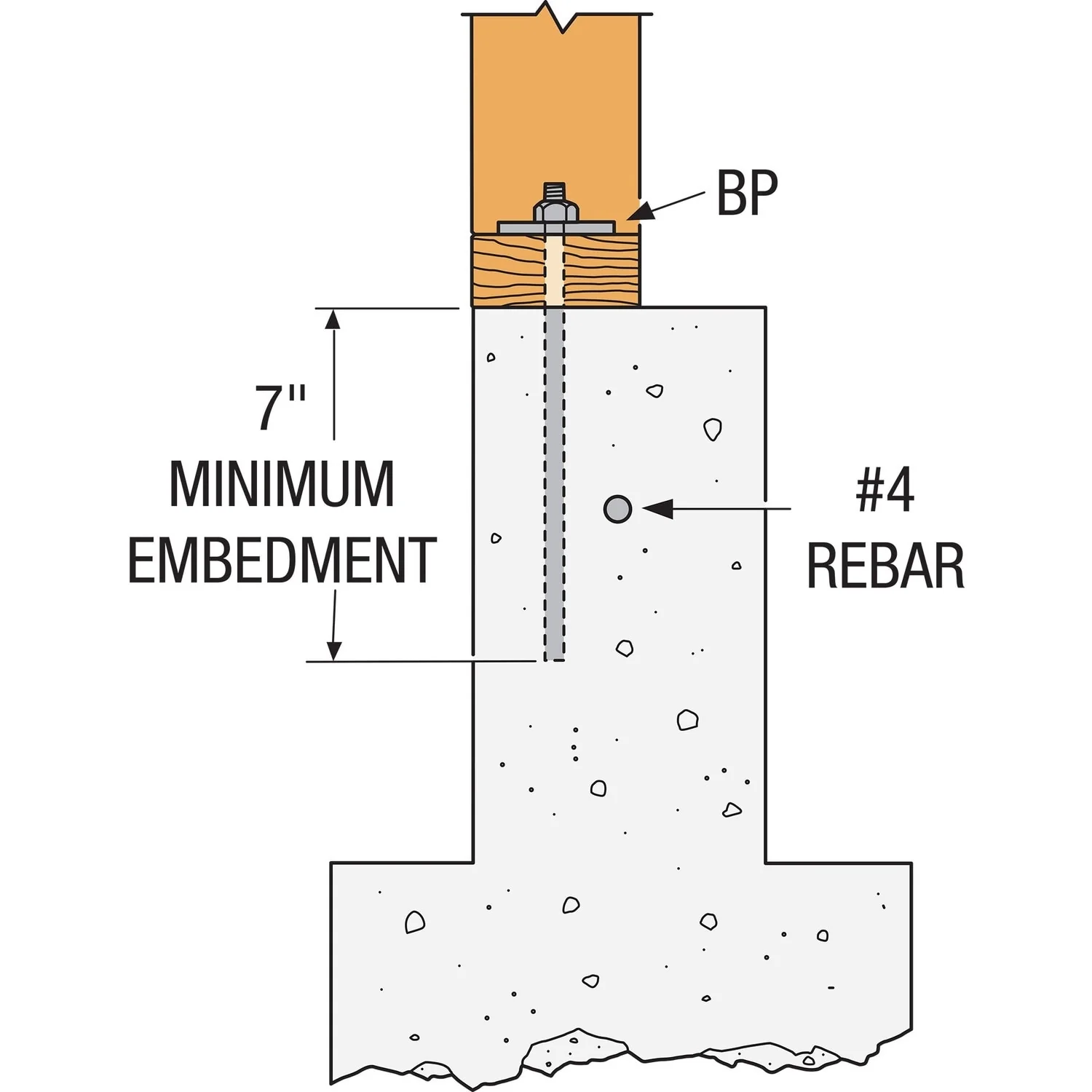

Simpson Strong-Tie BP 1/2-R Installation Overview

  1. Position edge of plate washer within 1/2" of sheathed edge of sill plate
  2. Tighten each anchor bolt with a nut and BP

Simpson Strong-Tie BP 1/2-R Specifications

Bolt Diameter 1/2"
Thickness 3/16"
Width 2"
Length 2"

NOTE: Ensure the edge of the plate washer is positioned within 1/2" of the sheathed edge of the sill plate for shearwall applications.
