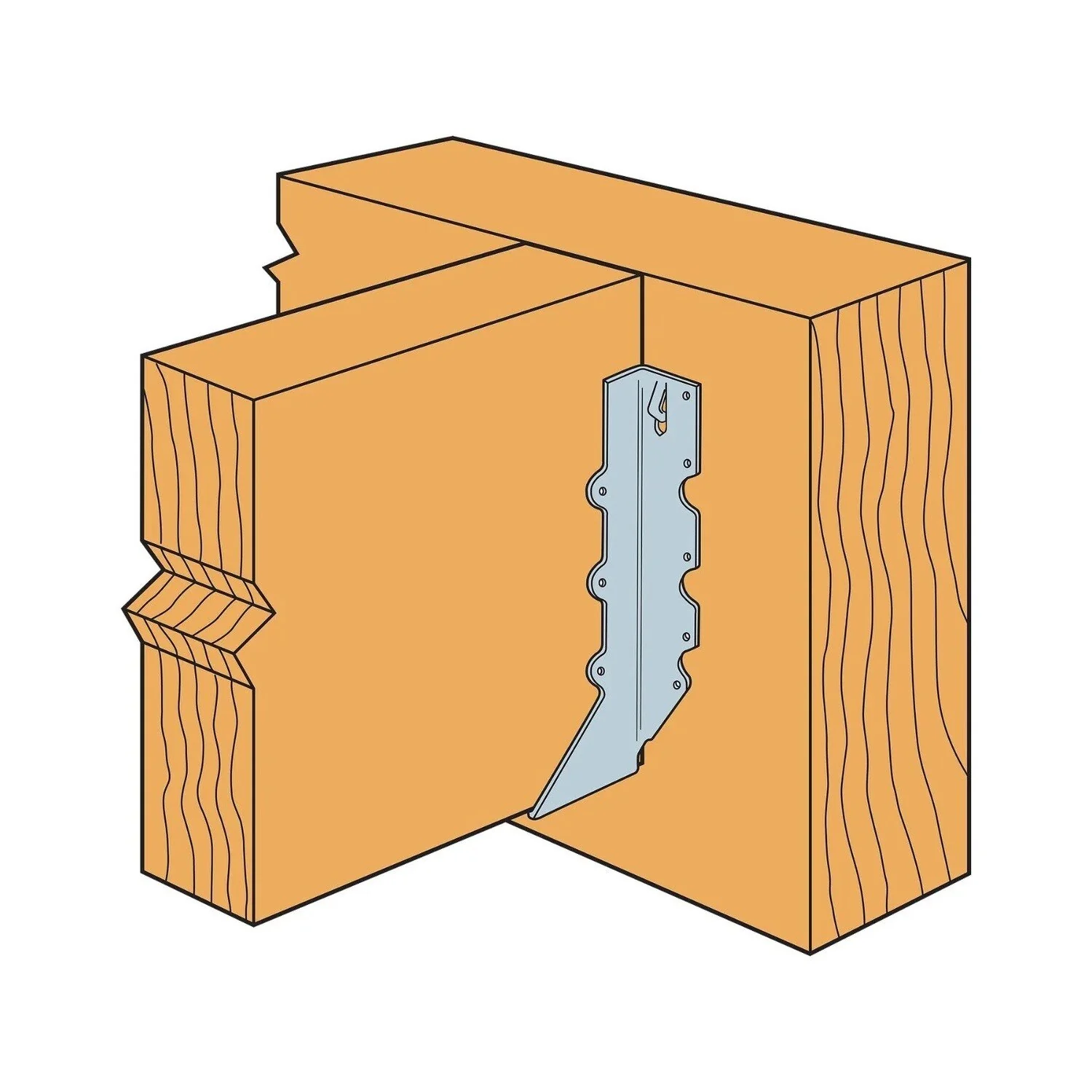

Simpson Strong-Tie U24-2 (3") 16Ga U Face-Mount Joist Hanger - G90 Galvanized

Simpson Strong-Tie U24-2 Features

• Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists, ensuring a secure connection in various framing applications.
• Face-Mount Design: Offers easy installation with a flush, secure connection to the supporting member.
• Optimized Load Distribution: Provides full bearing support, helping to prevent twisting or shifting under load.
• Galvanized Steel Construction: Enhances corrosion resistance, making it suitable for interior and protected exterior applications.
• Precision Engineering: Manufactured for tight tolerances and a snug fit, reducing the need for field adjustments.

Simpson Strong-Tie U24-2 Applications

• Deck Framing: Secures joists to beams, ensuring a stable and long-lasting deck structure.
• Floor Joists: Supports floor framing systems in residential and commercial buildings.
• Roof Framing: Provides strong connections for rafters and ceiling joists.

Simpson Strong-Tie U24-2 Installation Overview

1. Use nails, screws, or Strong-Drive SDS Heavy-Duty Connector screws as specified for the application.
2. The joist should be fully seated in the hanger to achieve maximum bearing support.
3. Install fasteners into all available nail holes for optimal strength and stability.
4. Ensure that the selected hanger meets the required load capacity for your specific application.
