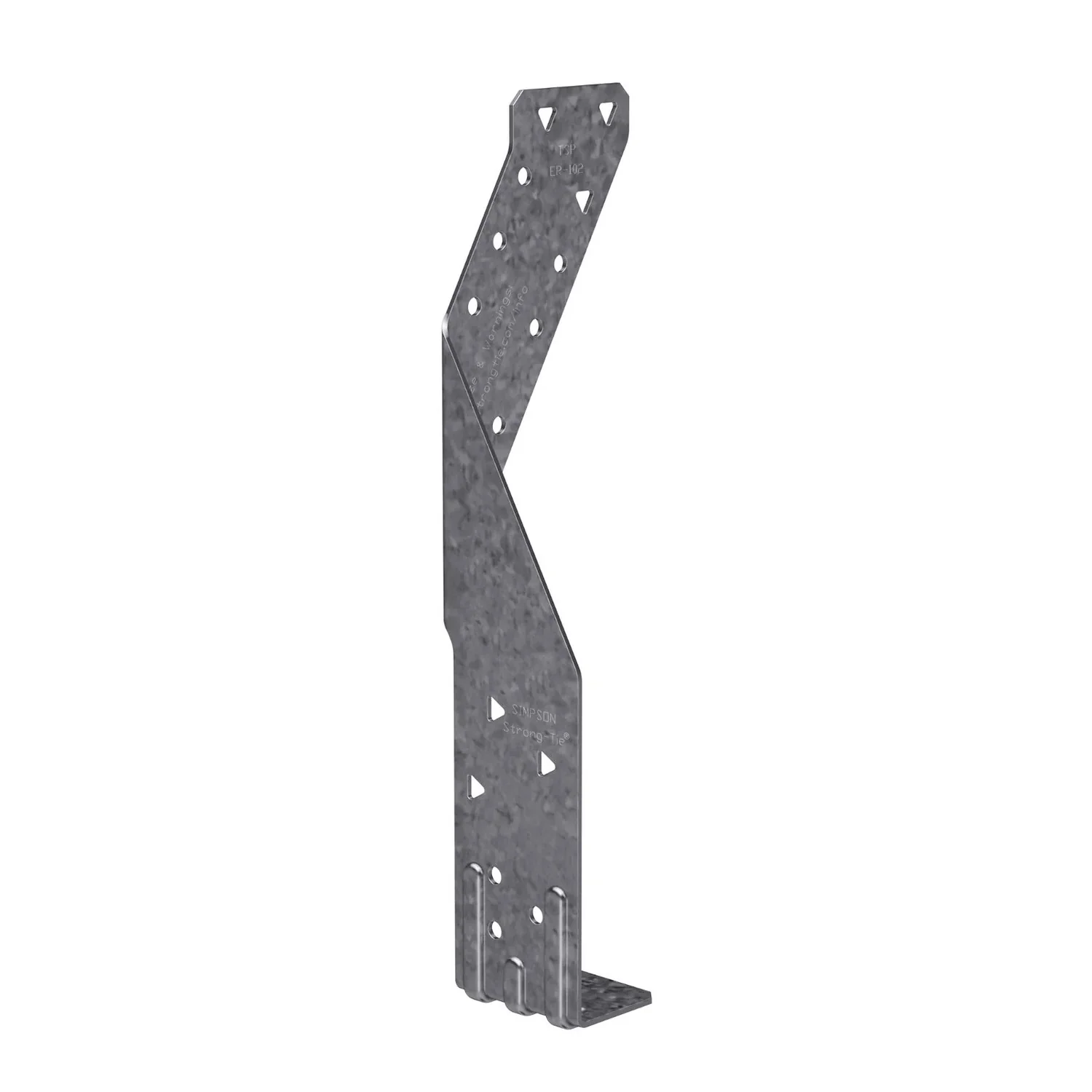

Simpson Strong-Tie TSP Stud-Plate Tie for Wood Construction

Simpson Strong-Tie TSP Description

The Simpson Strong-Tie TSP Stud-Plate Tie provides a secure connection between truss/rafter and wall structures, designed to resist wind and seismic forces.

Simpson Strong-Tie TSP Includes

  • (1) TSP Stud-Plate Tie

Simpson Strong-Tie TSP Features

  • Embossment feature provides strength at the bend
  • Can be installed before or after placement of wall
  • G90 Galvanized finish for corrosion resistance
  • Designed for wood-to-wood fastening

Simpson Strong-Tie TSP Applications

  • Wood-to-wood fastening in construction
  • Securing truss/rafter to wall structures
  • Resisting wind and seismic forces

Simpson Strong-Tie TSP Installation Overview

  1. Use all specified fasteners
  2. Fill all round holes for sill-plate installation
  3. Fill all round and triangle holes for top-plate installation
  4. Use hot-dip galvanized nails with ZMAX and HDG connector products

Simpson Strong-Tie TSP Specifications

Material 16 gauge
Finish G90 Galvanized
Width 1 1/2 in.
Length 7 7/8 in.
Weight 0.2 lb
Fasteners required To Rafters/Truss - (9) 0.148" x 1-1/2" Nails, Top Plates - (6) 0.148" x 1-1/2" Nails OR (6) 0.148" x 3" Nails

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
