Simpson Strong-Tie TNT25314TF Titen Turbo(1/4" x 3-1/4") T30 Flat-Head Concrete and Masonry Screw, Blue (100 Pack)
Simpson TNT25314TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications. Featuring a patented torque reduction channel, it ensures smooth driving with less torque and superior holding power.
Simpson TNT25314TF Includes
- (100) 1/4 x 3-1/4 in. Titen Turbo Concrete and Masonry Screw Anchor
- (1) T30 driver bit
Simpson TNT25314TF Features
- Patented Torque Reduction Channel reduces binding and snapping.
- Available in multiple coated versions for various applications.
- Hex head or 6-lobe-drive countersunk flat head options.
- Superior tension load performance.
- Designed for installation with an impact driver or cordless drill.
- Code listed for uncracked concrete and masonry applications.
Simpson TNT25314TF Applications
- Electrical boxes and conduit installations.
- Securing switch boxes and light fixtures.
- Mounting windows and thresholds.
- Basement furring strips.
- Shelf mounting to concrete or CMU.
- Handrails installation.

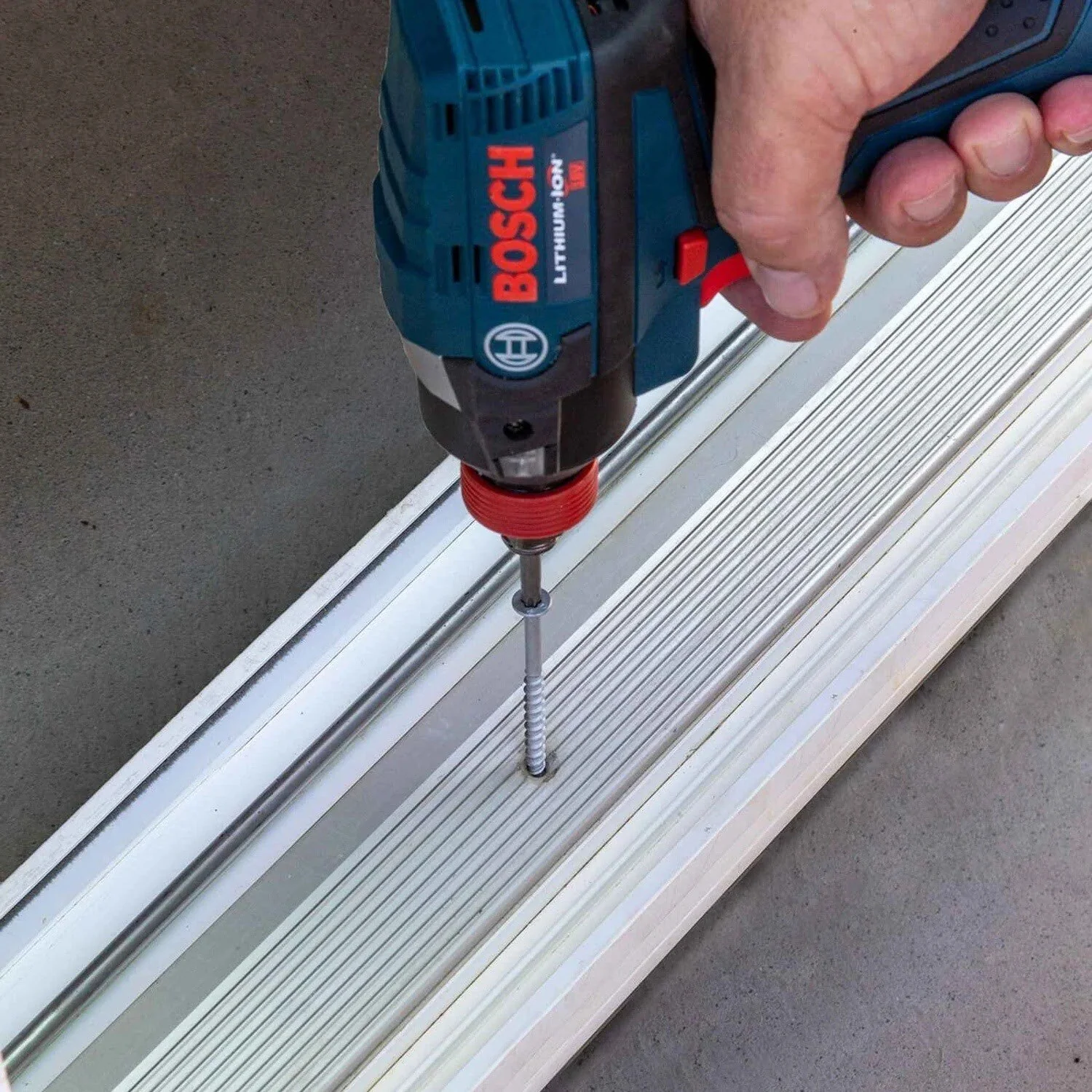

Simpson TNT25314TF Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position fixture and insert screw.
- Tighten using a drill and Titen Turbo screw installation tool.
Simpson TNT25314TF Specifications
| Material | Carbon Steel |
| Finish | Zinc plated with a baked-on ceramic coating |
| Diameter | 1/4" |
| Length | 3-1/4" |
| Drill Bit Diameter | 3/16" |
| Drive Type | T30 Star Drive |
| Head Type | Flat Head |
| Quantity | 100 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
