Simpson Strong-Tie THJM2-4-SDS3 (12 Gauge) Galvanized Multiple-Truss Hip/Jack Hanger
Simpson Strong-Tie THJM2-4-SDS3 Description
The THJM2-4-SDS3 Multiple-Truss Hip/Jack Hanger is a non-welded hanger designed to carry radial-end jack framing efficiently for multi-plane, angled bay roofs.
Simpson Strong-Tie THJM2-4-SDS3 Includes
- (1) THJM2-4-SDS3 Multiple-Truss Hip/Jack Hanger
- (1) Set of Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie THJM2-4-SDS3 Features
- Non-welded hanger design for radial-end jack framing
- Patented design accommodating 2x4 girder bottom chords
- Uses Strong-Drive SDS Heavy-Duty Connector screws for easy installation

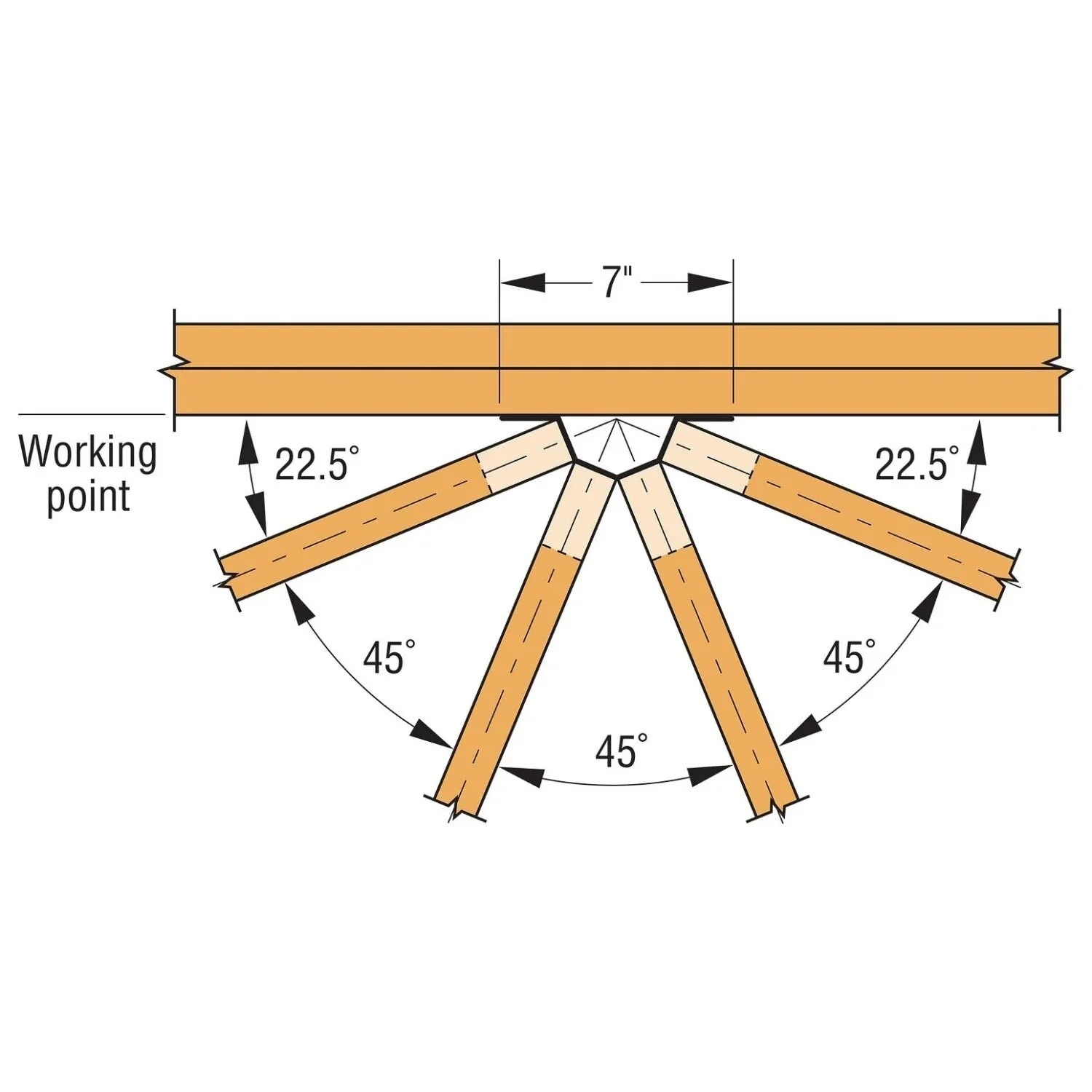

- Designed for four incoming jack trusses with specific angles
- Tabs on the seats assist in jack placement and include obround holes for optional slant nails
Simpson Strong-Tie THJM2-4-SDS3 Applications
- Multi-plane, angled bay roofs over breakfast, study, and library alcoves
- Radial-end jack framing for structural support
Simpson Strong-Tie THJM2-4-SDS3 Installation Overview
- Verify dimensions and alignment of girder and jack trusses
- Position the hanger according to the specified angles
- Secure the hanger using the included Strong-Drive SDS screws
- Optionally use slant nails for increased uplift
Simpson Strong-Tie THJM2-4-SDS3 Specifications
| Thickness | 12 Gauge |
| Fasteners required | See Product Spec Sheet |
| Manufacturer name | Simpson Strong-Tie Company Inc |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
