Simpson Strong-Tie THDT75600HMG Titen HD (3/4" x 6") Mechanically Galvanized HD Screw Anchor (5 Pack)
Simpson THDT75600HMG Description
The Titen HD Screw Anchor is a high-strength, mechanically galvanized anchor designed for easy installation in concrete and masonry.
Simpson THDT75600HMG Includes
- (5) 3/4 in. x 6 in. Titen HD Screw Anchor
Simpson THDT75600HMG Features
- Head-stamped for easy identification
- Serrated teeth on the tip for reduced installation torque
- Thread design efficiently transfers load to base material
- Standard fractional sizes with matching hole size
- Specialized heat-treating for tip hardness
- Hex washer head eliminates need for separate washer
- Fully removable
- Code listed for exterior applications
Simpson THDT75600HMG Applications
- Concrete anchoring for structural support
- Masonry anchoring for secure installations
- Temporary applications requiring removable anchors
- Pressure-treated wood sill plate anchoring

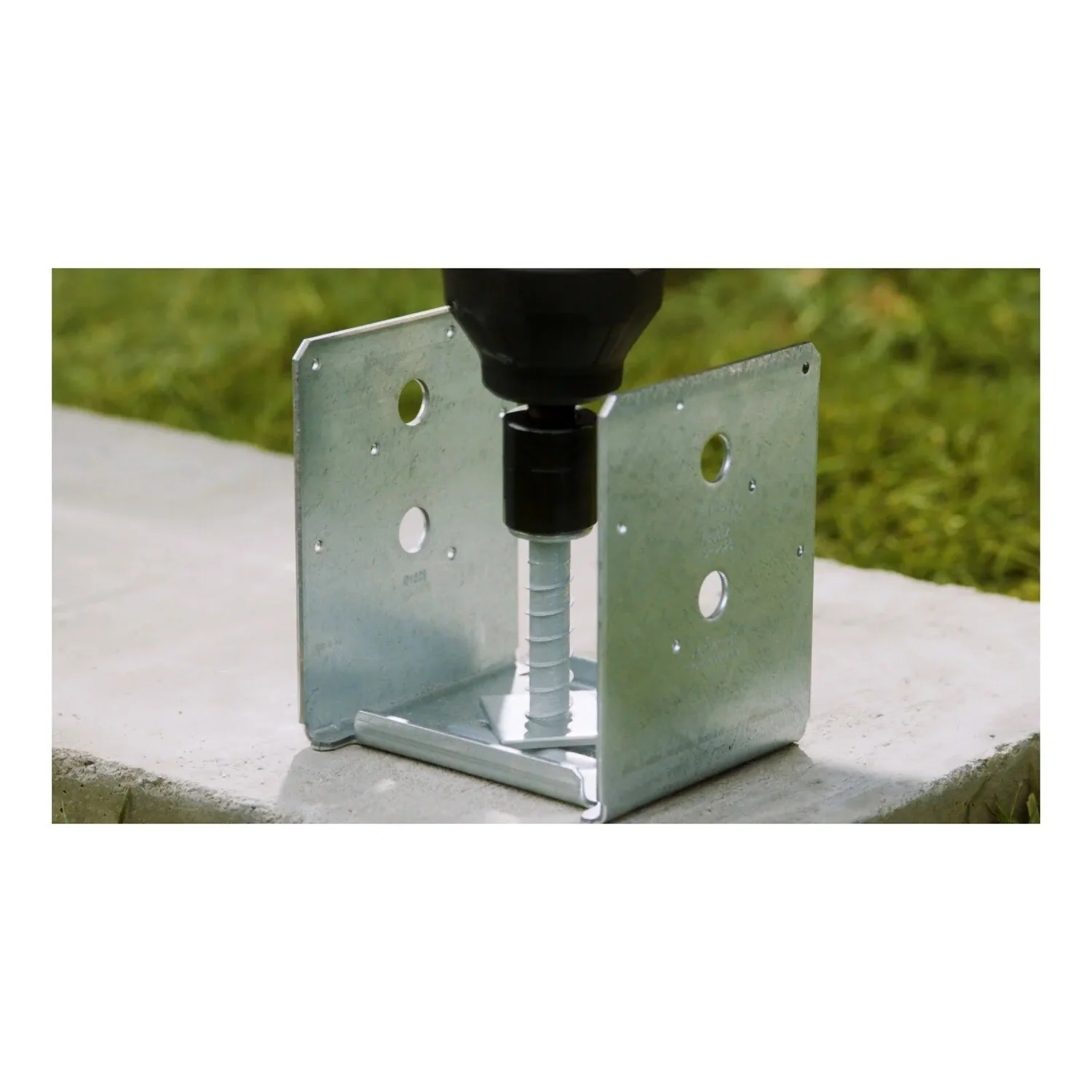

- Post bases and seating installations
- Holdown applications
Simpson THDT75600HMG Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THDT75600HMG Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 3/4 in. |
| Length | 6 in. |
| Drill Bit Diameter | 3/4 in. |
| Drive Type | 1-1/8 in. Hex |
| Fixture Hole Size | 7/8 in. - 15/16 in. |
| Head Type | Hex Head |
| Quantity | 5 |
NOTE: Use the correct fixture hole size and avoid reusing the anchor to maintain load capacity
