Simpson Strong-Tie THD75600H4SS Titen HD (3/4" x 6") Heavy Duty SS Screw Anchor - Type 304 (5 Pack)

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Simpson Strong-Tie THD75600H4SS Titen HD (3/4" x 6") Heavy Duty SS Screw Anchor - Type 304 (5 Pack)

Simpson Strong-Tie THD75600H4SS Description

The Titen HD Screw Anchor is a high-performance, self-undercutting, non-expansion screw anchor made of 304 stainless steel, ideal for general exterior applications.

Simpson Strong-Tie THD75600H4SS Includes

  • (5) Titen HD Screw Anchor 304 Stainless Steel 3/4 in. x 6 in.

Simpson Strong-Tie THD75600H4SS Features

  • Made of 304 stainless steel for corrosion resistance
  • Self-undercutting and non-expansion design
  • Patented thread design with serrated cutting teeth for easy installation
  • Tested in accordance with ACI355.2, AC193, and AC106

Simpson Strong-Tie THD75600H4SS Applications

  • General exterior applications
  • Mechanical, electrical, and plumbing installations

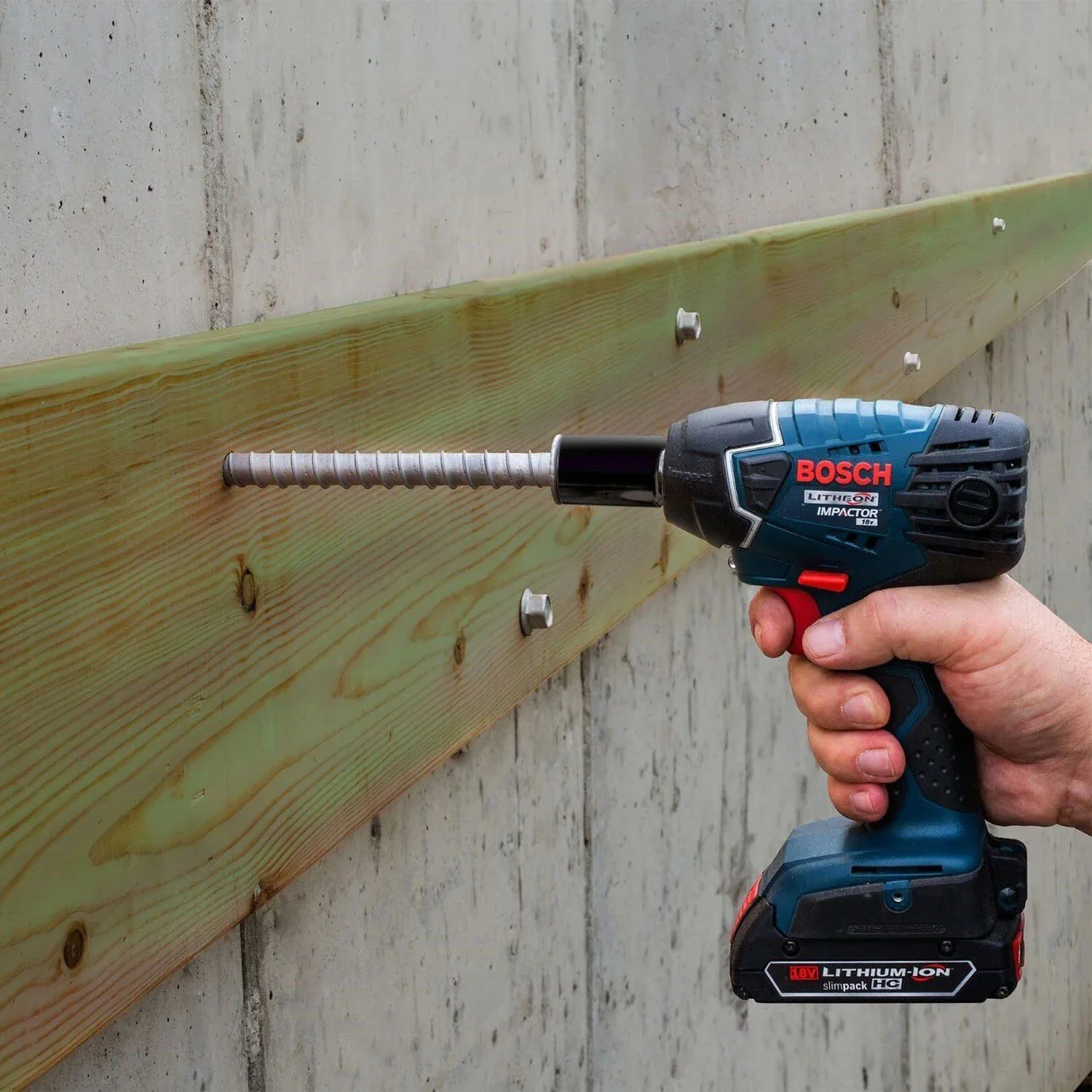

Simpson Strong-Tie THD75600H4SS Installation Overview

  1. Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
  2. Insert the anchor through the fixture and into the hole.
  3. Tighten the anchor into the base material until the hex-washer head contacts the fixture.

Simpson Strong-Tie THD75600H4SS Specifications

Diameter 3/4 in.
Length 6 in.
Material 304 Stainless Steel
Drill Bit Size 3/4 in.
Drive Type 1-1/8 in. Hex
Fixture Hole Size 7/8 in. - 15/16 in.
Head Type Hex Head
Quantity 5

NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
