Simpson Strong-Tie SUBE362-R100 (3-5/8") Bridging Connector for Stud Zinc Galvanized (100 Pack)

Simpson Strong-Tie SUBE362-R100 Features

• Tested to include stud-web strength and stiffness in the tabulated design values
• Design values ensure compliance with AISI S100 Sections C2.2.1 and C2.3 for axially and laterally loaded studs
• Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.) and stud sizes of 3 5/8" and 6"
• Improves onsite safety by eliminating sharp-point screw perforations through the web in traditional clip attachments to wall-end stud webs
• Eliminates drywall bulge with no screw attachment to flange of stud

Simpson Strong-Tie SUBE362-R100 Applications

• Cold-formed steel construction
• Connecting cold-rolled channels to studs
• End of wall, single-stud jamb, or panel walls

Simpson Strong-Tie SUBE362-R100 Installation Overview

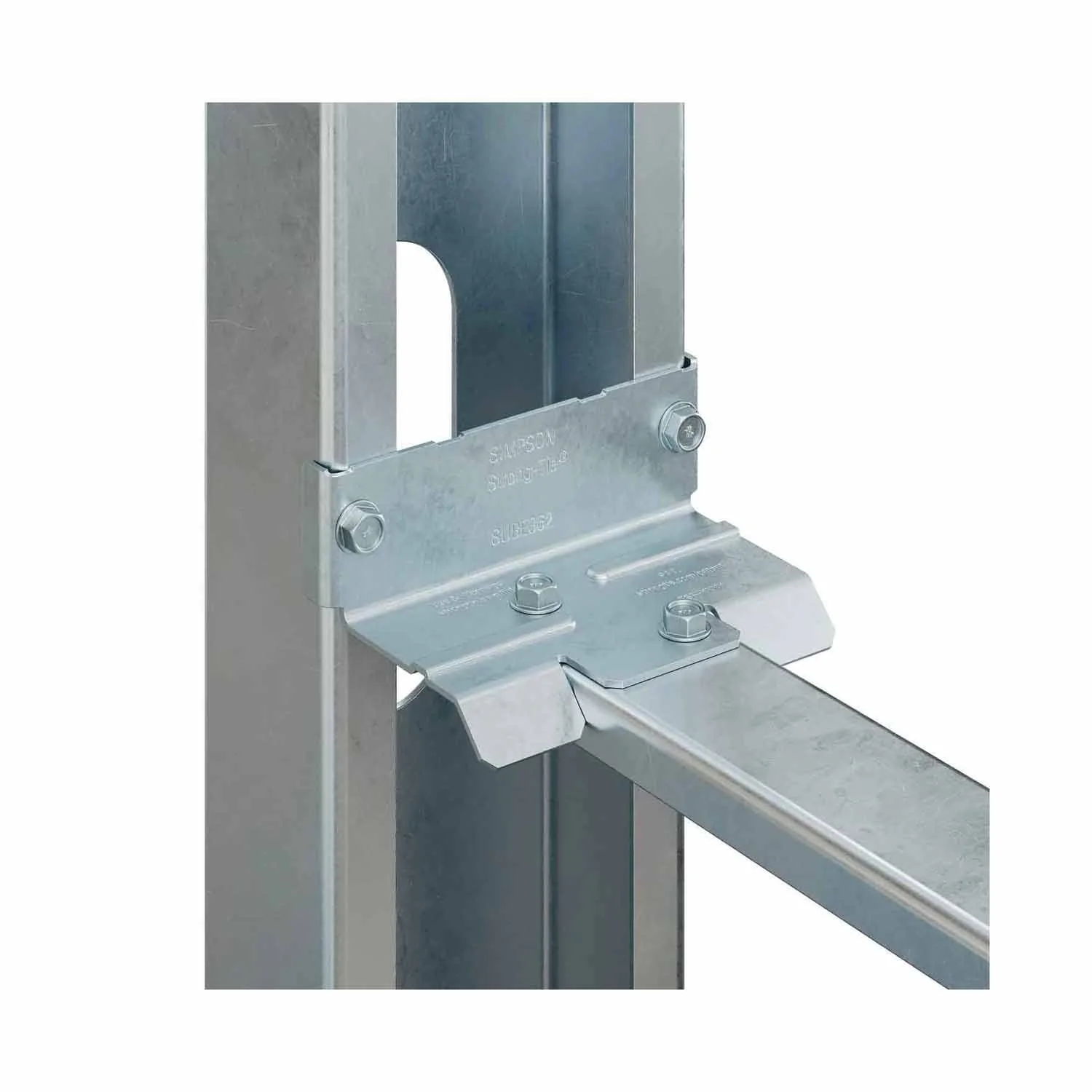

1. Attach the SUBE connector to the open face of the stud using (2) #10 screws.
2. Fasten the u-channel to the clip with (2) #10 screws.
