Simpson Strong-Tie STB2-758124SS Strong Bolt (3/4" x 8-1/2") 2 Wedge Anchor - Type 304, Unassembled (10 Pack)
Simpson STB2-758124SS Description

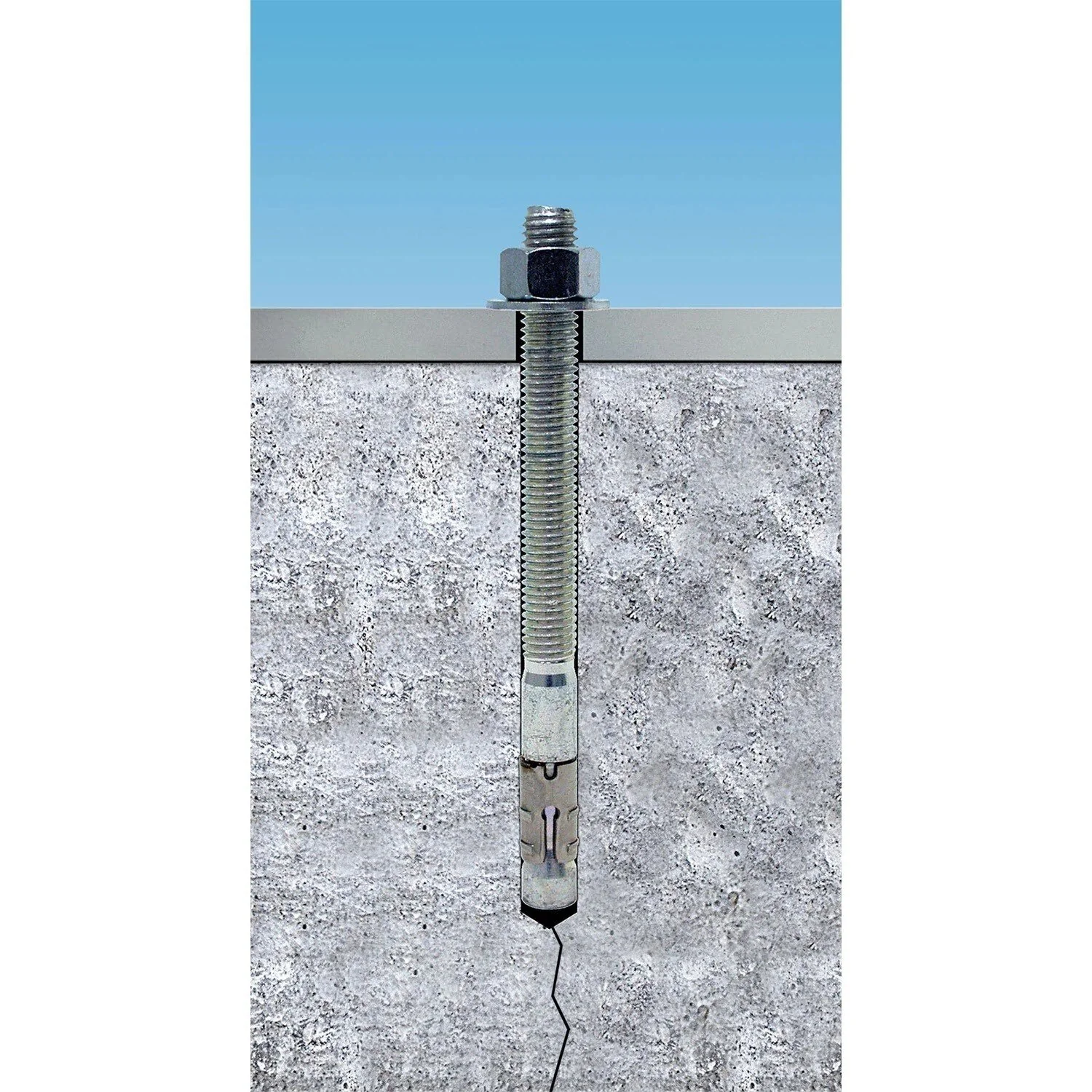

The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete. Made from 304 stainless steel, it is suitable for static and seismic loading conditions.
Simpson STB2-758124SS Includes
- (10) Strong-Bolt 2 Wedge Anchor 304 Stainless Steel 3/4" x 8-1/2"
Simpson STB2-758124SS Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Fits standard fixtures and installs with common drill bit sizes
- Tested per ACI355.2 and AC193
Simpson STB2-758124SS Applications
- Concrete anchoring in cracked and uncracked surfaces
- Seismic applications requiring reliable anchoring
- Horizontal, vertical, and overhead installations
Simpson STB2-758124SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Drive the anchor into the hole until tight against the fixture
- Tighten to the specified installation torque
Simpson STB2-758124SS Specifications
| Diameter | 3/4" |
| Length | 8-1/2" |
| Material | 304 Stainless Steel |
| Drill Bit Size | 3/4" |
| Installation Torque | 150 ft. lbs |
| Thread Length | 6" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
