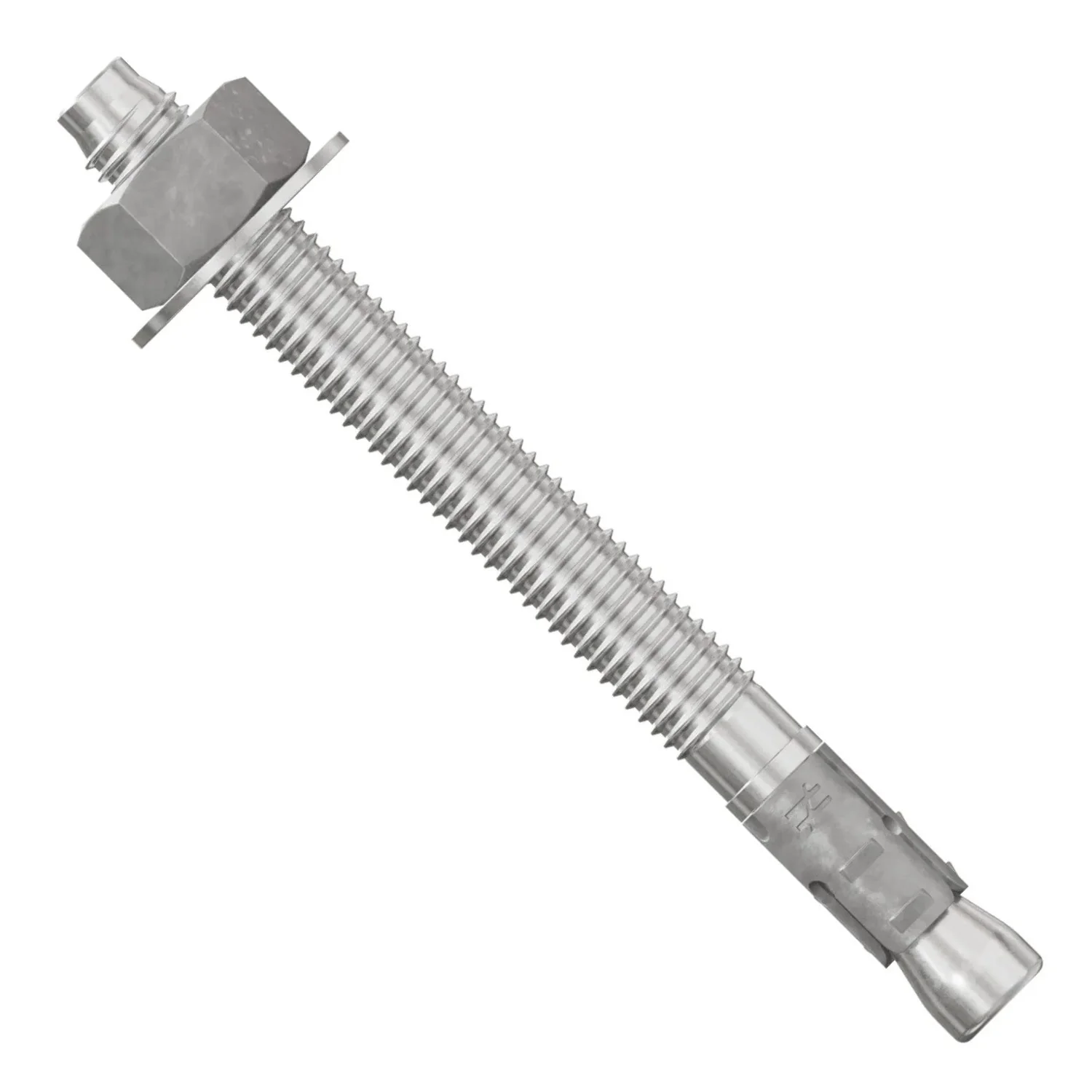

Simpson Strong-Tie STB2-50512S6F25 Strong Bolt (1/2" x 5-1/2") Stainless-Steel Wedge Anchor - Fully Assembled (25 Pack)

Simpson Strong-Tie STB2-50512S6F25 Features

• 316 Stainless Steel Construction: Exceptional corrosion resistance for long-lasting durability in harsh environments.
• Fully Assembled: Includes nut and washer for faster, easier installation out of the box.
• Code-Compliant Performance: ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications.
• Versatile Use: Suitable for anchoring structural supports, machinery, railing systems, and more.
• Variety of Sizes Available: Multiple diameter and length options help you get the right fit for any job.

Simpson Strong-Tie STB2-50512S6F25 Applications

• Anchoring structural supports in corrosive environments.
• Securing machinery and equipment.
• Installing railing systems in residential and commercial settings.
• Reinforcing structural connections in coastal or marine environments.
• Fastening into cracked or uncracked concrete.

Simpson Strong-Tie STB2-50512S6F25 Installation Overview

1. Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
2. Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
3. Assemble the anchor with the nut and washer, ensuring the nut is flush with the top of the anchor.
4. Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
5. Tighten the nut to the required installation torque.
