Simpson Strong-Tie STB2-37334C50 Strong-Bolt (3/4" x 7-3/4") 2 Wedge Anchor - Carbon Steel (50 Pack)
Simpson Strong-Tie STB2-37334C50 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for cracked and uncracked concrete applications, offering static and seismic loading capabilities.
Simpson Strong-Tie STB2-37334C50 Includes
- (50) Wedge Anchors
Simpson Strong-Tie STB2-37334C50 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Tested per ACI355.2 and AC193
- Made from zinc-plated carbon steel
- Size: 3/8 in. x 3-3/4 in.
- Quantity: 50 per package
Simpson Strong-Tie STB2-37334C50 Applications
- Concrete anchoring for structural support
- Seismic and high-wind conditions
- Horizontal, vertical, and overhead applications

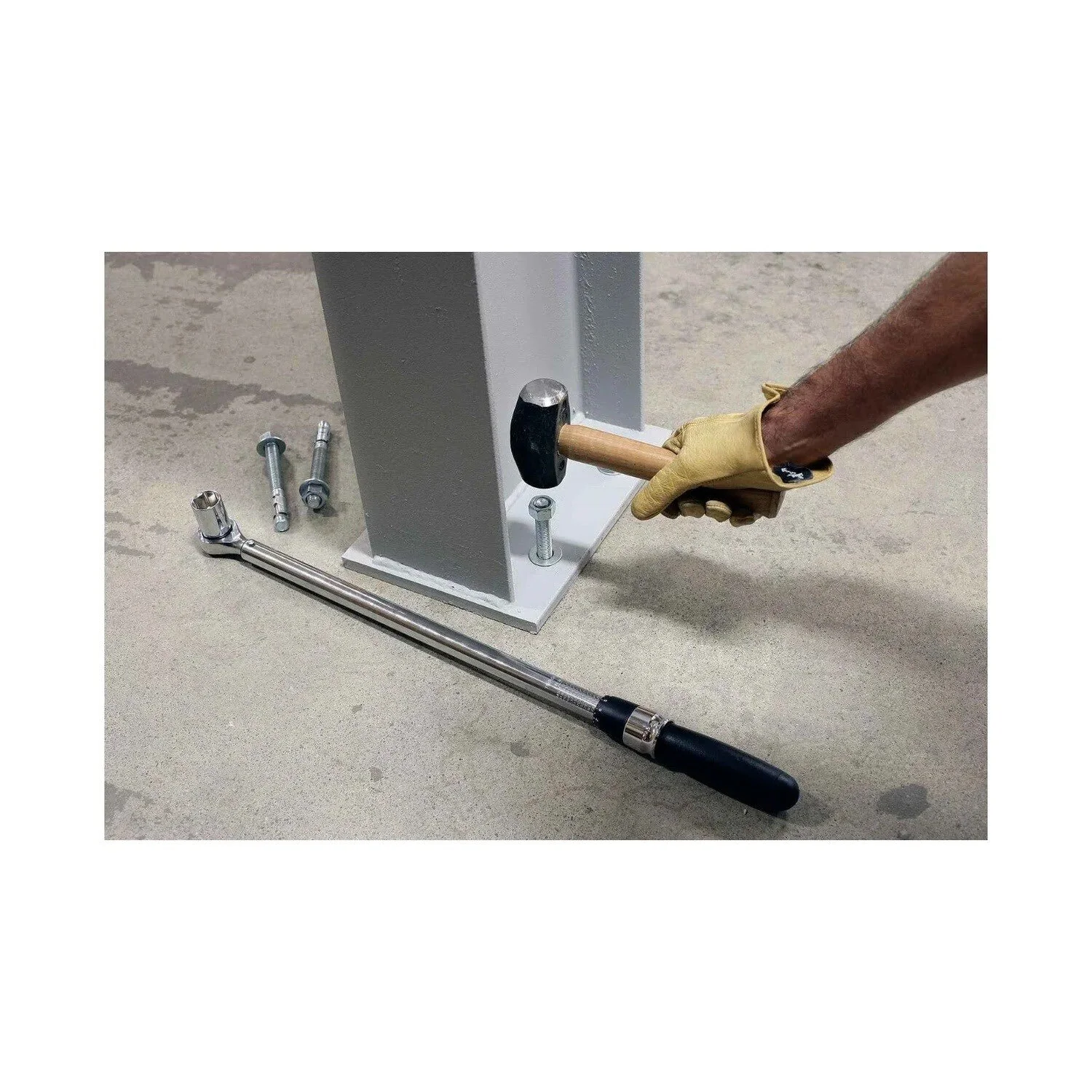

Simpson Strong-Tie STB2-37334C50 Installation Overview
- Drill a 3/8 in. hole into the concrete
- Insert the anchor into the hole
- Tighten using a 9/16 in. wrench to achieve 30 ft. lbs torque
Simpson Strong-Tie STB2-37334C50 Specifications
| Diameter | 3/8 in. |
| Length | 3-3/4 in. |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Drill Bit Size | 3/8 in. |
| Installation Torque | 30 ft. lbs |
WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
