Simpson Strong-Tie SSTB36 (7/8" x 36-7/8") Anchor Bolt for Concrete Applications
Simpson Strong-Tie SSTB36 Description
The SSTB36 Anchor Bolt by Simpson Strong-Tie is designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson Strong-Tie SSTB36 Includes
- (1) 7/8 in. x 36-7/8 in. SSTB Anchor Bolt
Simpson Strong-Tie SSTB36 Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB36 Applications
- Concrete anchoring for structural support
- Use in monolithic and two-pour concrete applications
- Suitable for grout-filled concrete masonry units (GFCMU)

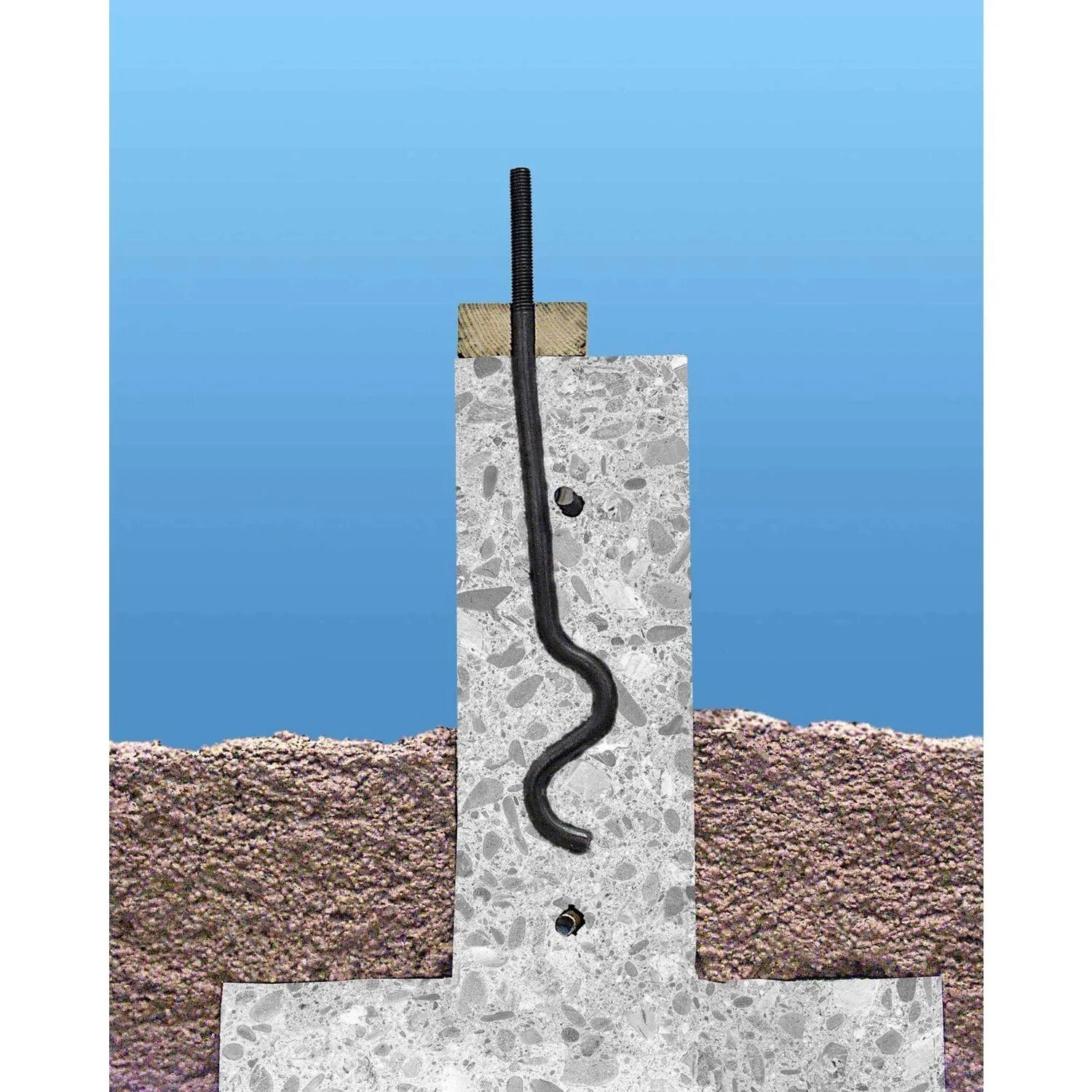

Simpson Strong-Tie SSTB36 Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders
- Ensure minimum concrete compressive strength of 2,500 psi
- Follow plan view details for proper alignment and positioning
- Use standard nuts, couplers, and washers as required
- For HDG SSTB anchors, chase the threads or use overtapped products
Simpson Strong-Tie SSTB36 Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | Plain (HDG available) |
| Diameter | 7/8 in. |
| Length | 36-7/8 in. |
| Thread Length | 6-1/2 in. |
| Weight | 5.7 lb |
