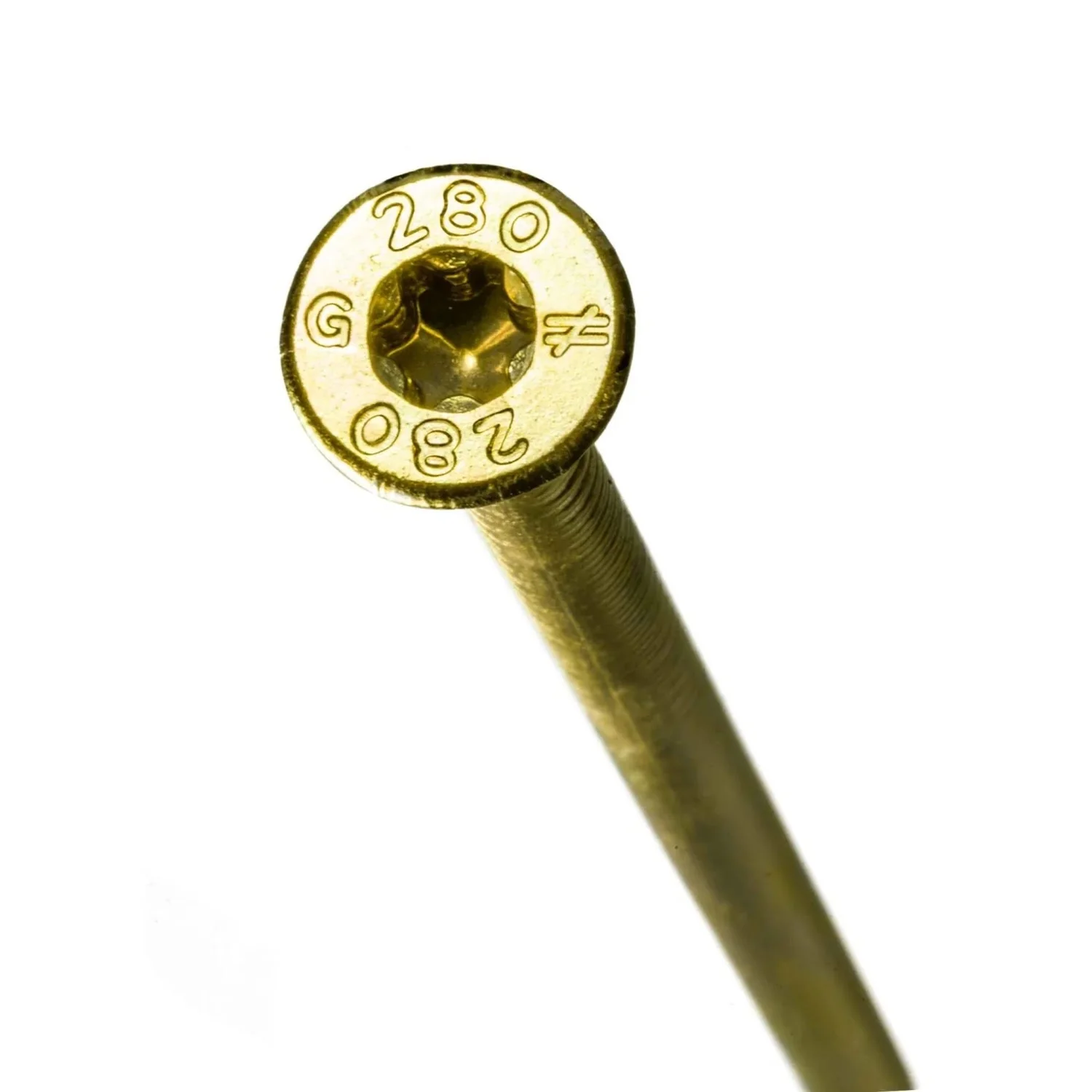

Simpson Strong-Tie SDCP22318-R50 Strong-Drive (0.225" x 3-1/8") T40 Yellow Zinc SDCFC Timber-CFC Screw, Flat Head w/ Nibs (50 Pack)

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Simpson Strong-Tie SDCP22318-R50 Strong-Drive (0.225" x 3-1/8") T40 Yellow Zinc SDCFC Timber-CFC Screw, Flat Head w/ Nibs (50 Pack)

Simpson Strong-Tie SDCP22318-R50 Description

The Simpson Strong-Drive SDCP Timber-CP screw is a structural fastener designed for cross-laminated timber (CLT) and mass timber construction, providing excellent holding power and load capacity.

Simpson Strong-Tie SDCP22318-R50 Includes

  • (50) 0.315 in. x 3-1/8 in. Timber-CP Screw

Simpson Strong-Tie SDCP22318-R50 Features

  • Flat-head with nibs for flush finish
  • Partially threaded for high pullout resistance
  • Heavy-duty shank for strength and durability
  • Yellow-zinc coating for corrosion resistance
  • Deep 6-lobe recess for secure drive
  • Type-17 point for fast starts

Simpson Strong-Tie SDCP22318-R50 Applications

  • Mass timber and cross-laminated timber construction
  • General timber framing
  • Wall to wall, floor to floor, panel to beam connections

Simpson Strong-Tie SDCP22318-R50 Installation Overview

  1. Position screws at a 90-degree angle to the wood surface.
  2. Ensure proper penetration into the main member.
  3. Use specified tools for secure installation.

Simpson Strong-Tie SDCP22318-R50 Specifications

Diameter 0.315 in.
Length 3-1/8 in.
Material Carbon Steel
Finish Yellow Zinc
Drive Type T40 Star Drive
Head Diameter 0.575 in.
Head Type Flat Head with Nibs
Thread Length 2 in.
Point Type Type 17
Quantity 50

NOTE: Ensure screws are installed at a 90-degree angle to the wood surface for optimal performance.

$31.79
Simpson Strong-Tie SDCP22318-R50 Strong-Drive (0.225" x 3-1/8") T40 Yellow Zinc SDCFC Timber-CFC Screw, Flat Head w/ Nibs (50 Pack)—
$31.79
