Simpson Strong-Tie SDCFC272358 Strong-Drive (0.525" x 23-5/8") T50 Yellow Zinc SDCFC Timber-CFC Screw, Cylinder Head (50 Pack)
Simpson Strong-Tie SDCFC272358 Description

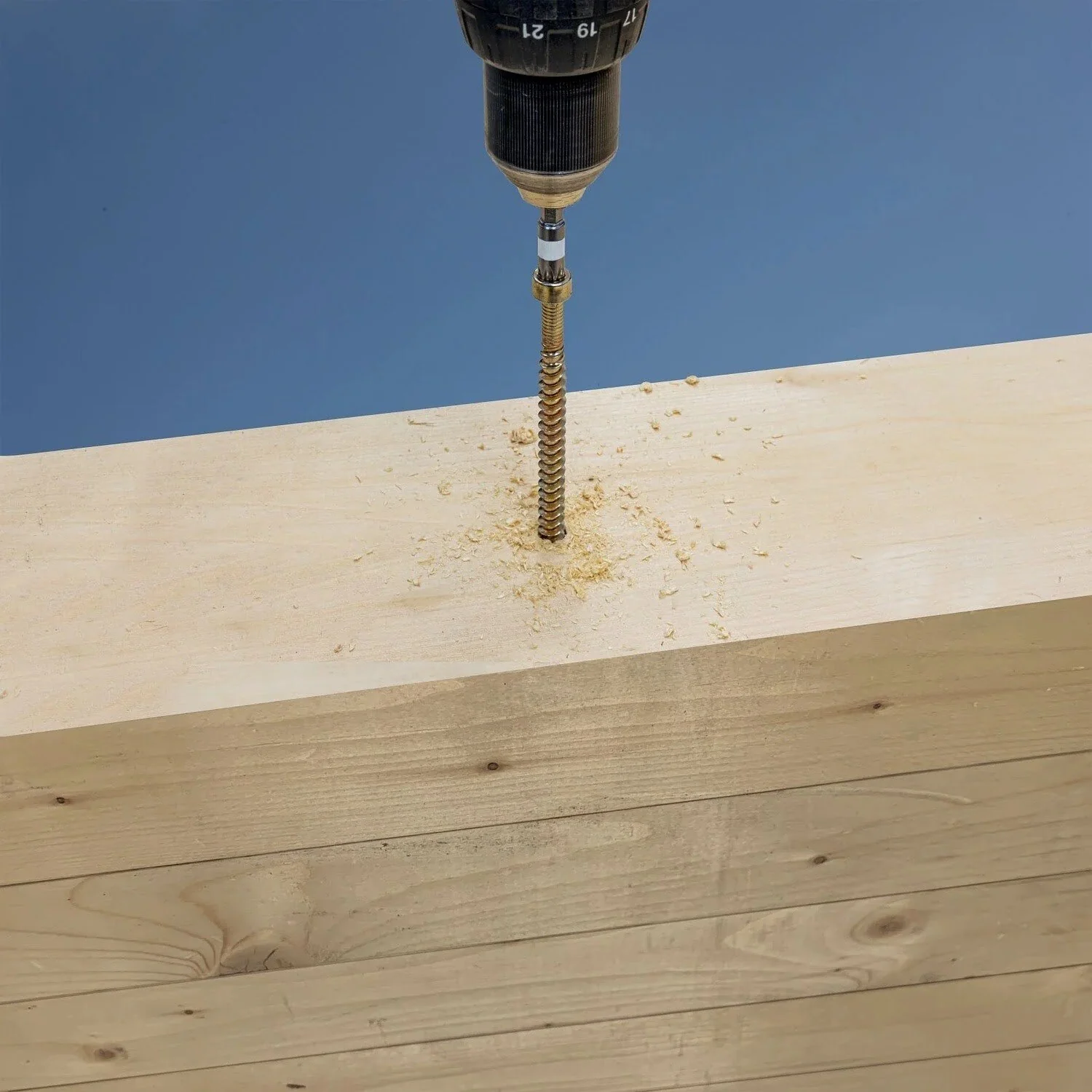

Simpson Strong-Tie SDCFC Timber-CFC Screws are structural fasteners designed for cross-laminated timber (CLT) construction, mass timber construction, and general interior applications. They provide extra strength for demanding applications that require large-sized structural members.
Simpson Strong-Tie SDCFC272358 Includes
- (50) Strong-Drive SDCFC Timber-CFC Screw
Simpson Strong-Tie SDCFC272358 Features
- Interior grade yellow-zinc coating
- Compact cylinder head helps countersink the screw for an unobstructed finish
- Heavy-duty, fully-threaded 0.390" (10 mm) outer diameter provides strength, with superb withdrawal resistance
- Deep 6-lobe recess for a secure drive (replacement bit: BIT50T-2-R1)
- Available in 500 mm (19 5/8"), 600 mm (23 5/8"), 800 mm (31 1/2"), and 1,000 mm (39 3/8") lengths
Simpson Strong-Tie SDCFC272358 Applications
- Beam reinforcement
- Wall-to-wall connections
- Floor-to-floor connections
- Support beams
- Butt joints
- Splitting reinforcement
Simpson Strong-Tie SDCFC272358 Specifications
| Diameter | 0.390" |
| Finish | Yellow Zinc |
| Length | 23-5/8" |
| Material | Carbon Steel |
| Drive type | T50 Star Drive |
| Head diameter | 0.525" |
| Head type | Cylinder Head |
| Point type | Half Point |
| Thread length | 22-1/4" |
| Quantity | 50 |
$1,581.04
Simpson Strong-Tie SDCFC272358 Strong-Drive (0.525" x 23-5/8") T50 Yellow Zinc SDCFC Timber-CFC Screw, Cylinder Head (50 Pack)—
$1,581.04
