Simpson Strong-Tie NCA2X8-16 Nailless Compression Bridging for 2x8 and 2x14

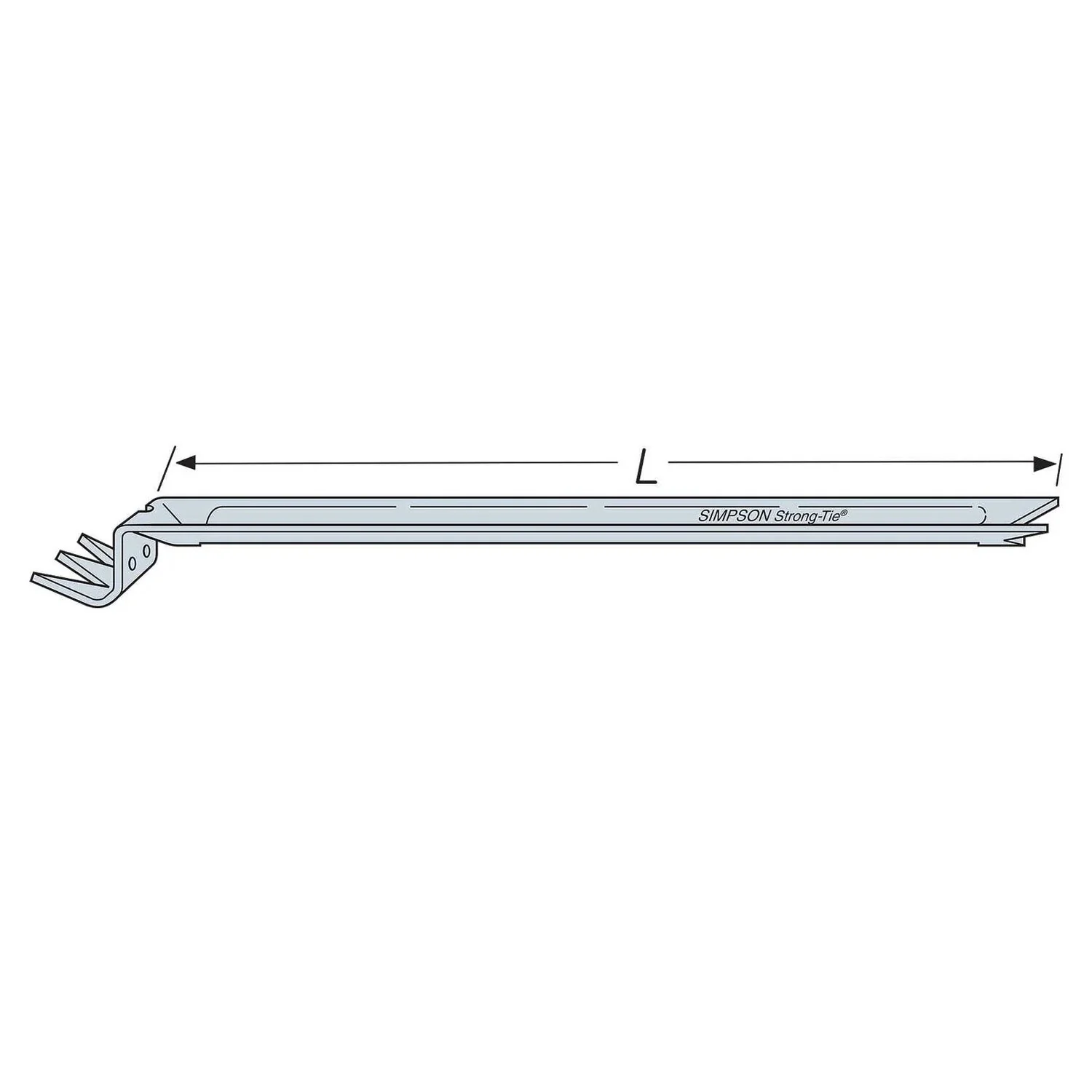

Product image 1

Simpson Strong-Tie NCA2X8-16 Nailless Compression Bridging for 2x8 and 2x14

Simpson Strong-Tie NCA2X8-16 Description

The Simpson NCA Nailless Compression Bridging provides bracing between floor joists as a critical contribution to the structural strength of a floor.

Simpson Strong-Tie NCA2X8-16 Includes

  • (1) Nailless Compression Bridging

Simpson Strong-Tie NCA2X8-16 Features

  • Galvanized for corrosion resistance
  • Keeps floor system continuity and prevents joist rotation
  • Installs with built-in prongs that eliminate nail squeaks

Simpson Strong-Tie NCA2X8-16 Applications

  • Provides bracing between floor joists to enhance structural strength
  • Prevents joist rotation and maintains floor system continuity
  • Distributes loads across multiple joists

Simpson Strong-Tie NCA2X8-16 Installation Overview

  1. Support floor joists with a depth-to-thickness ratio of six or more with bridging at intervals not exceeding 8'.
  2. Install bridging tightly to prevent floor movement.
  3. May be installed before or after sheathing, from the top or bottom.
  4. Locate the bend line approximately 1" from the joist edge.
  5. Use nail holes if prongs are bent during installation.

Simpson Strong-Tie NCA2X8-16 Specifications

Finish G90 Galvanized
Material Galvanized Steel
Thickness 20 Gauge
Length 15-1/4"
Joist size 2X8, 2X14
Quantity 1

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
