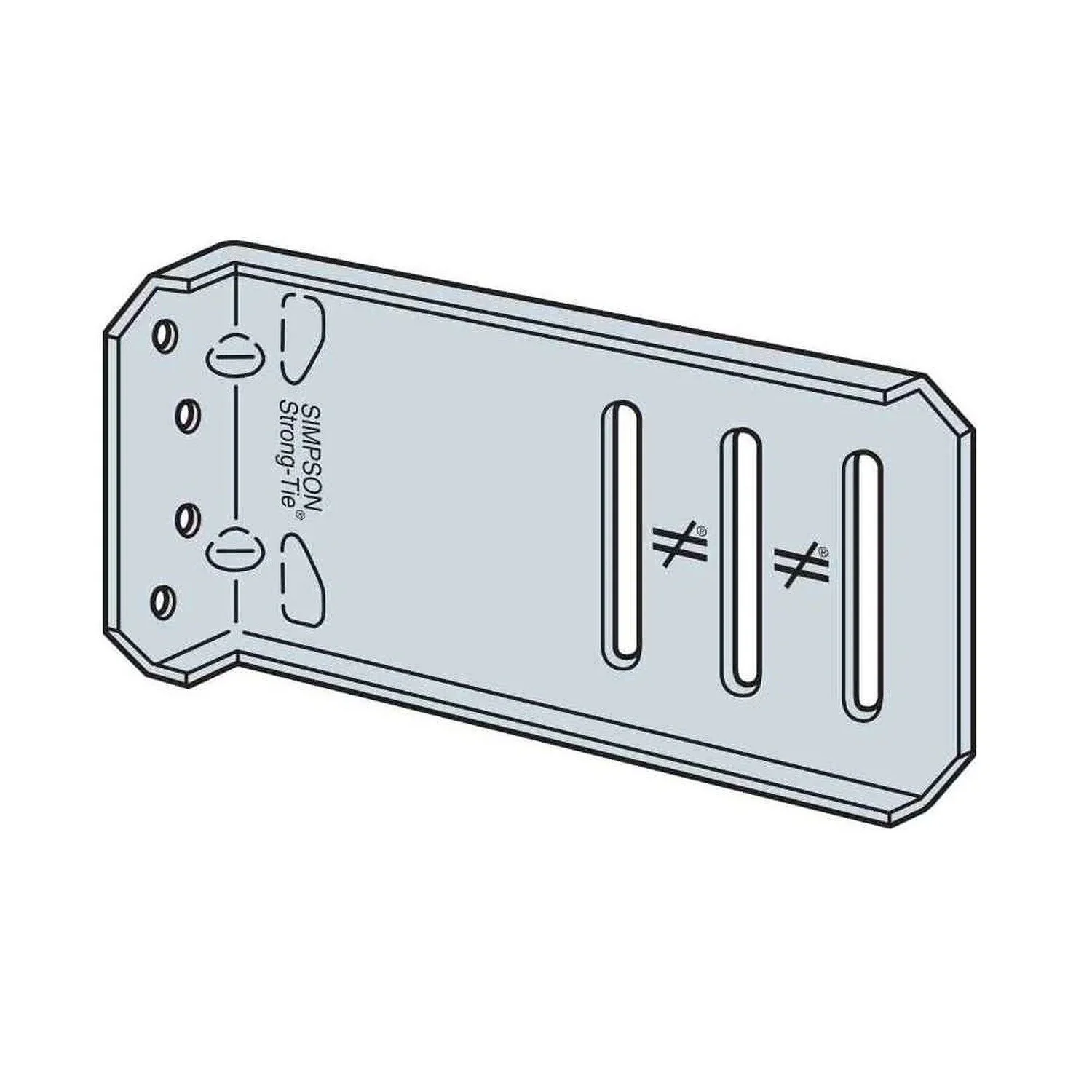

Simpson Strong-Tie MSCB47.5-KT (4" x 7.5") Medium Duty Slide Clip with Screws (25 Pack)
Simpson MSCB47.5-KT Description
The MSCB47.5-KT Medium Duty Slide Clip is designed for bypass framing applications, offering high performance and ease of installation.
Simpson MSCB47.5-KT Includes
- (25) Medium Duty Slide Clip 4x7.5
- (83) XLSH34B1414 #14 shouldered screws
Simpson MSCB47.5-KT Features
- Provides a full 1" of both upward and downward movement
- Precision-manufactured shouldered screws prevent overdriving
- Strategically placed stiffeners and embossments maximize performance
- G90 Galvanized finish for corrosion resistance
Simpson MSCB47.5-KT Applications
- Bypass framing applications
- Reducing design time and installed cost
- Accommodating various stand-off conditions and steel-stud sizes
Simpson MSCB47.5-KT Installation Overview
- Use the specified number of #14 shouldered screws (included)
- Install shouldered screws in the slots adjacent to the 'No-Equal' stamp
- Use a maximum of 1 screw per slot
Simpson MSCB47.5-KT Specifications
| Finish | G90 Galvanized |
| Length | 7-1/2" |
| Height | 4" |
| Thickness | 14 Gauge |
| Fasteners required | (83) XLSH34B1414 #14 shouldered screws (included) |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
