Simpson Strong-Tie MFCB43.5-R25 (3-1/2") Bypass Framing Fixed-Clip Connector (25 Pack)

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10

Simpson Strong-Tie MFCB43.5-R25 (3-1/2") Bypass Framing Fixed-Clip Connector (25 Pack)

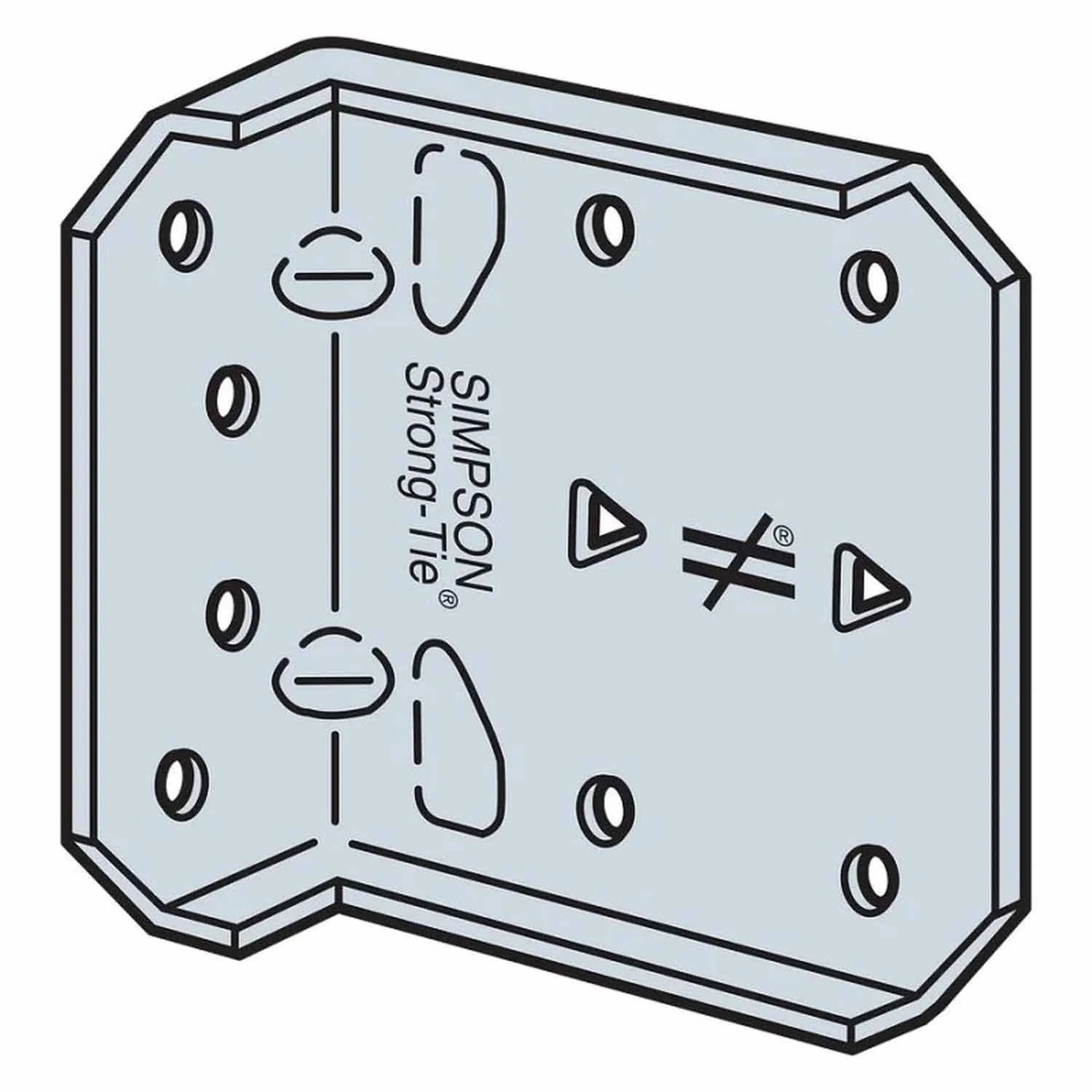

Simpson Strong-Tie MFCB43.5-R25 Description

The Simpson Strong-Tie MFCB clips are economical, high-performance fixed-clip connectors rated for tension, compression, shear, and in-plane loads, offering design flexibility with varying screw and anchorage patterns.

Simpson Strong-Tie MFCB43.5-R25 Includes

  • (25) Bypass Framing Fixed-Clip Connector

Simpson Strong-Tie MFCB43.5-R25 Features

  • Rated for tension, compression, shear, and in-plane loads
  • Provides design flexibility with varying screw and anchorage patterns
  • Strategically placed stiffeners, embossments, and anchor holes maximize connector performance

Simpson Strong-Tie MFCB43.5-R25 Applications

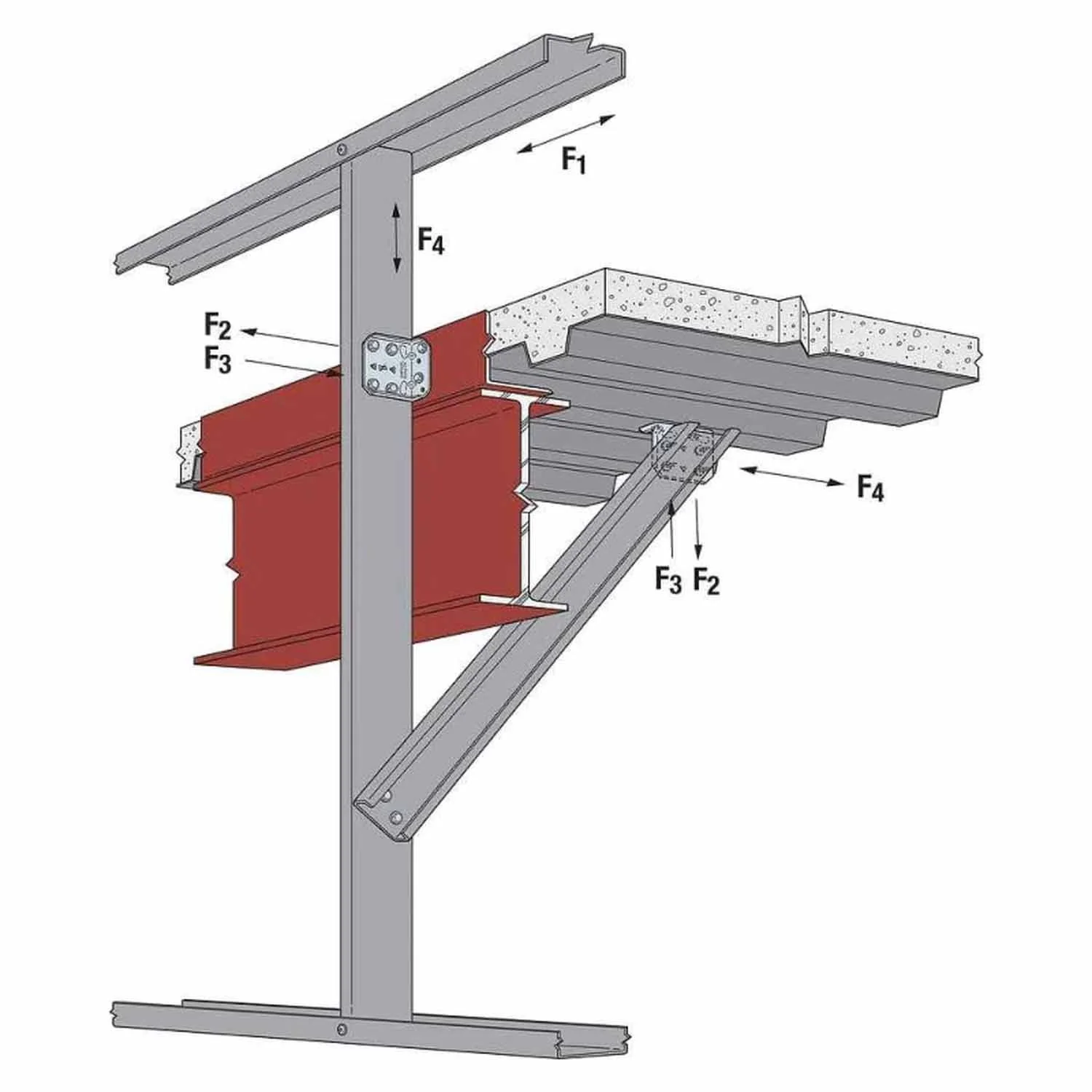

  • Bypass framing in cold-formed steel construction
  • General framing applications requiring fixed-clip connectors

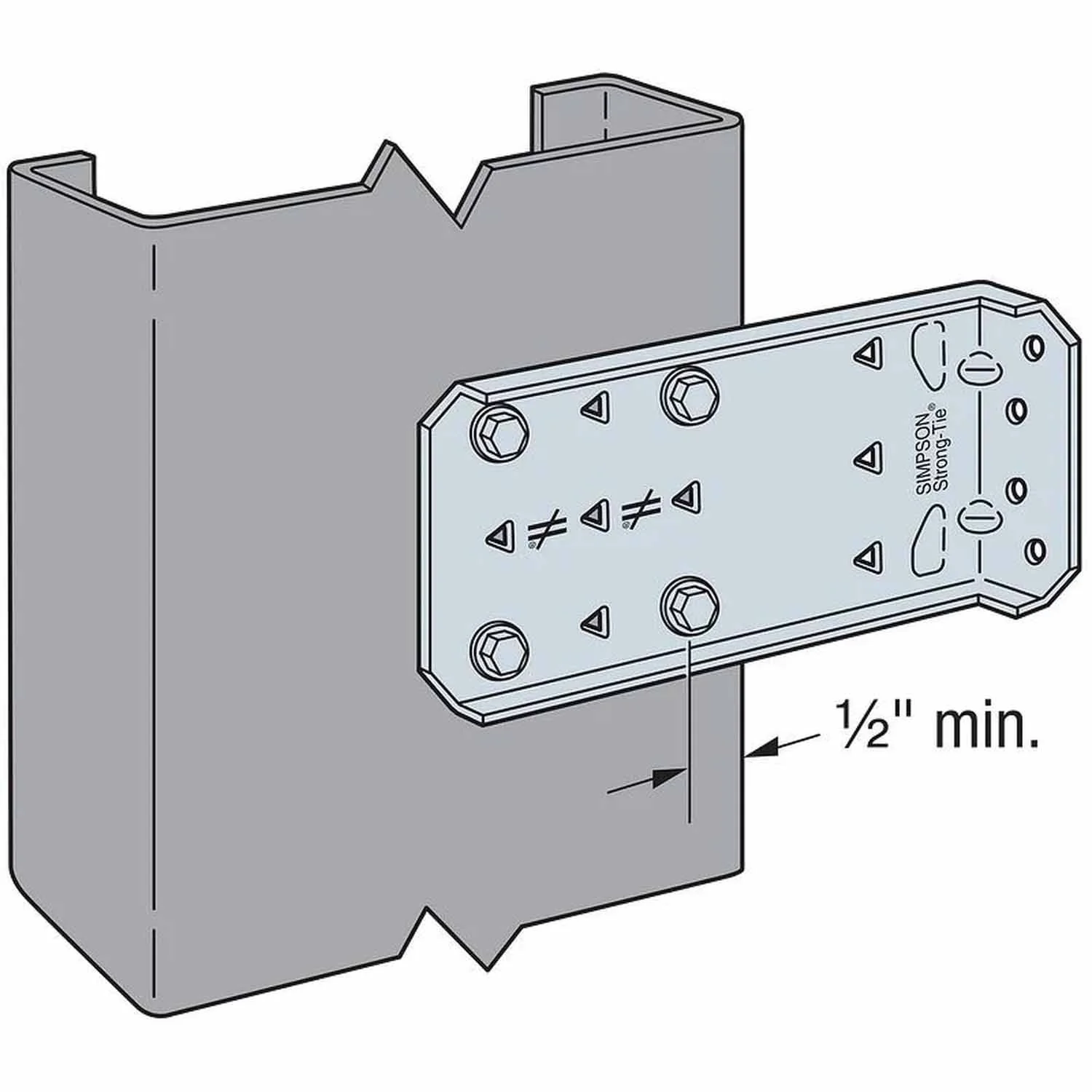

Simpson Strong-Tie MFCB43.5-R25 Installation Overview

  1. Use the specified type and number of anchors
  2. Attach using the specified number of #12 self-drilling screws to CFS framing
  3. For installations to wood framing, refer to Simpson Strong-Tie engineering guidelines

Simpson Strong-Tie MFCB43.5-R25 Specifications

Material 68 mil (14 ga.)
Finish G90 Galvanized
Dimensions 1 1/2 x 4 in.
Length 3-1/2 in.
Packaging Quantity 25
$16.58

Original: $55.26

-70%
Simpson Strong-Tie MFCB43.5-R25 (3-1/2") Bypass Framing Fixed-Clip Connector (25 Pack)—

$55.26

$16.58

Product Information

Shipping & Returns

Description

Simpson Strong-Tie MFCB43.5-R25 Description

The Simpson Strong-Tie MFCB clips are economical, high-performance fixed-clip connectors rated for tension, compression, shear, and in-plane loads, offering design flexibility with varying screw and anchorage patterns.

Simpson Strong-Tie MFCB43.5-R25 Includes

  • (25) Bypass Framing Fixed-Clip Connector

Simpson Strong-Tie MFCB43.5-R25 Features

  • Rated for tension, compression, shear, and in-plane loads
  • Provides design flexibility with varying screw and anchorage patterns
  • Strategically placed stiffeners, embossments, and anchor holes maximize connector performance

Simpson Strong-Tie MFCB43.5-R25 Applications

  • Bypass framing in cold-formed steel construction
  • General framing applications requiring fixed-clip connectors

Simpson Strong-Tie MFCB43.5-R25 Installation Overview

  1. Use the specified type and number of anchors
  2. Attach using the specified number of #12 self-drilling screws to CFS framing
  3. For installations to wood framing, refer to Simpson Strong-Tie engineering guidelines

Simpson Strong-Tie MFCB43.5-R25 Specifications

Material 68 mil (14 ga.)
Finish G90 Galvanized
Dimensions 1 1/2 x 4 in.
Length 3-1/2 in.
Packaging Quantity 25
