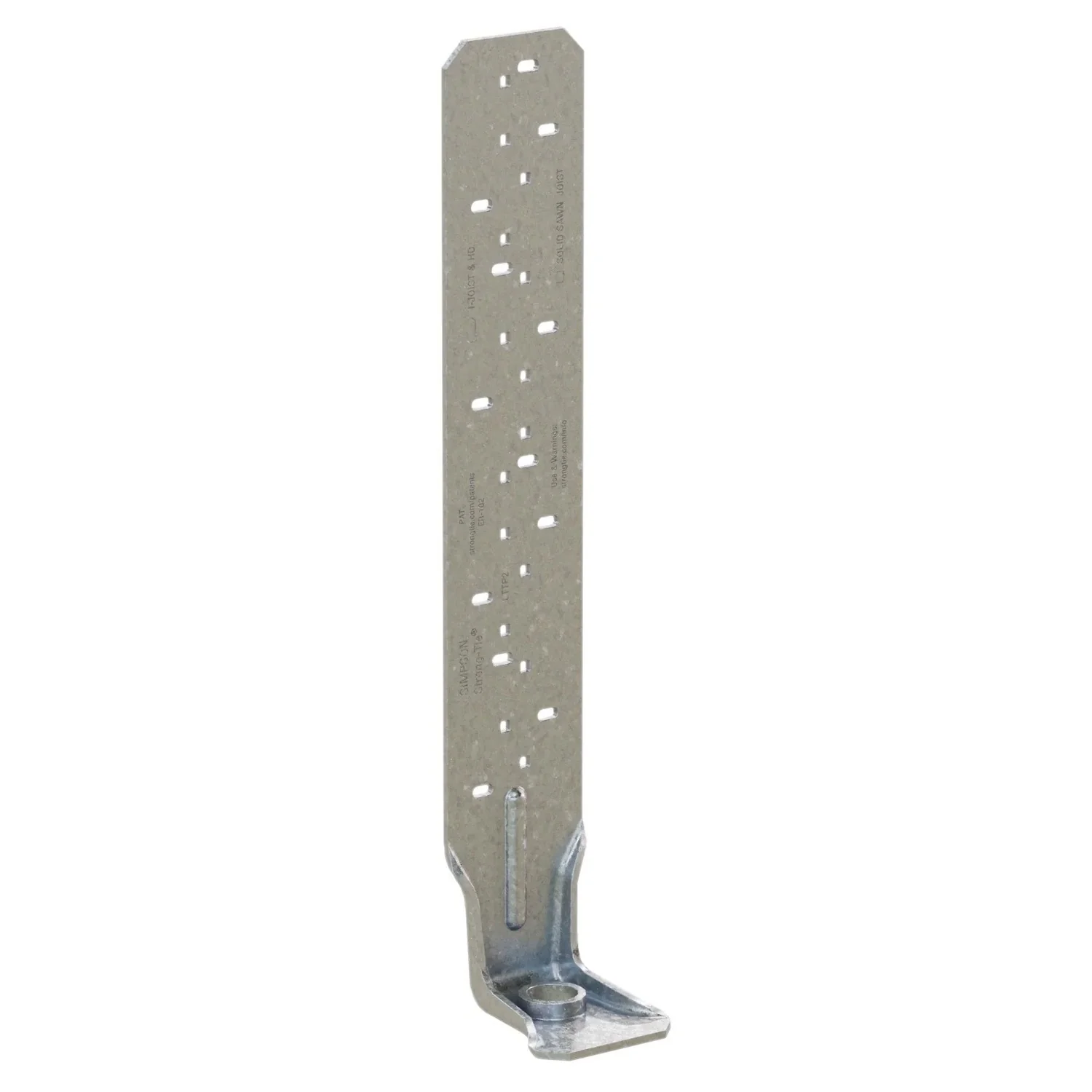

Simpson Strong-Tie LTTP2 (14-15/16") Light Tension Tie for Wood to Concrete or Masonry Applications
Simpson LTTP2 Description
The LTTP2 Light Tension Tie is designed for wood-to-concrete or masonry applications, offering reliable tension load resistance and easy installation.
Simpson LTTP2 Includes
- (1) Light Tension Tie
Simpson LTTP2 Features
- Ideal for retrofit or new construction
- Easy installation for attachment of 1/2"-diameter post-installed or cast-in-place anchors to concrete and #10 screws to CFS studs
- Flanges rolled into bend and extruded anchor bolt hole provides increased strength and limits deflection
Simpson LTTP2 Applications
- Resisting tension loads in wood-to-concrete or masonry connections
- Horizontal purlin applications
- Vertical holdown applications
Simpson LTTP2 Installation Overview
- Attach the strap portion to the steel stud using specified screws
- Bolt the base to the wall or foundation with suitable 1/2"-diameter anchor
- Reference PAB anchor bolts for cast-in-place applications
- Reference Titen HD Heavy-Duty Screw Anchor, SET-3G, and AT-3G for post-installed options
Simpson LTTP2 Specifications
| Material | 118 mil (10 ga.) |
| Finish | Galvanized (G90) |
| Length | 14-15/16" |
| Weight | 1.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
