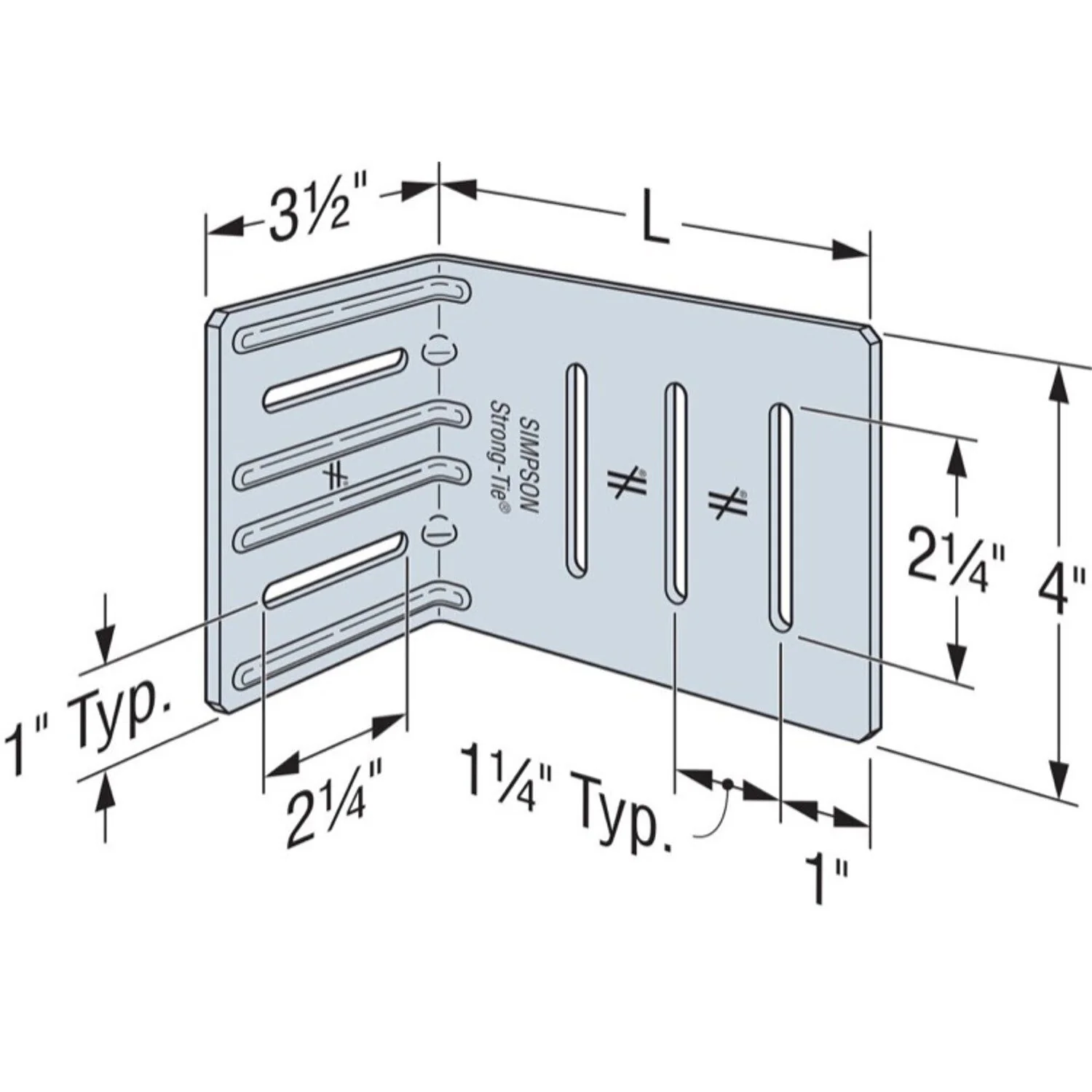

Simpson Strong-Tie IDCB45.5-KT25 Drift Clip Kit for Bypass Framing with Screws (25 Pack)

Simpson Strong-Tie IDCB45.5-KT25 Features

• Horizontal embossments and corner gussets optimize performance in the F2 load direction
• Precision-manufactured shouldered screws prevent overdriving and ensure proper clip function
• No-Equal stamps mark the center of the slots for correct screw and anchor placement

Simpson Strong-Tie IDCB45.5-KT25 Applications

• Securing bypass stud framing to the edge of a slab
• Accommodating lateral drift and vertical deflection in construction

Simpson Strong-Tie IDCB45.5-KT25 Installation Overview

1. Use the specified type and number of fasteners and anchors
2. Install screws in vertical slots aligning with the No-Equal stamp
3. Attach to steel-edge angle using specified screws centered in horizontal slots
4. For steel backed by concrete, predrilling may be required
