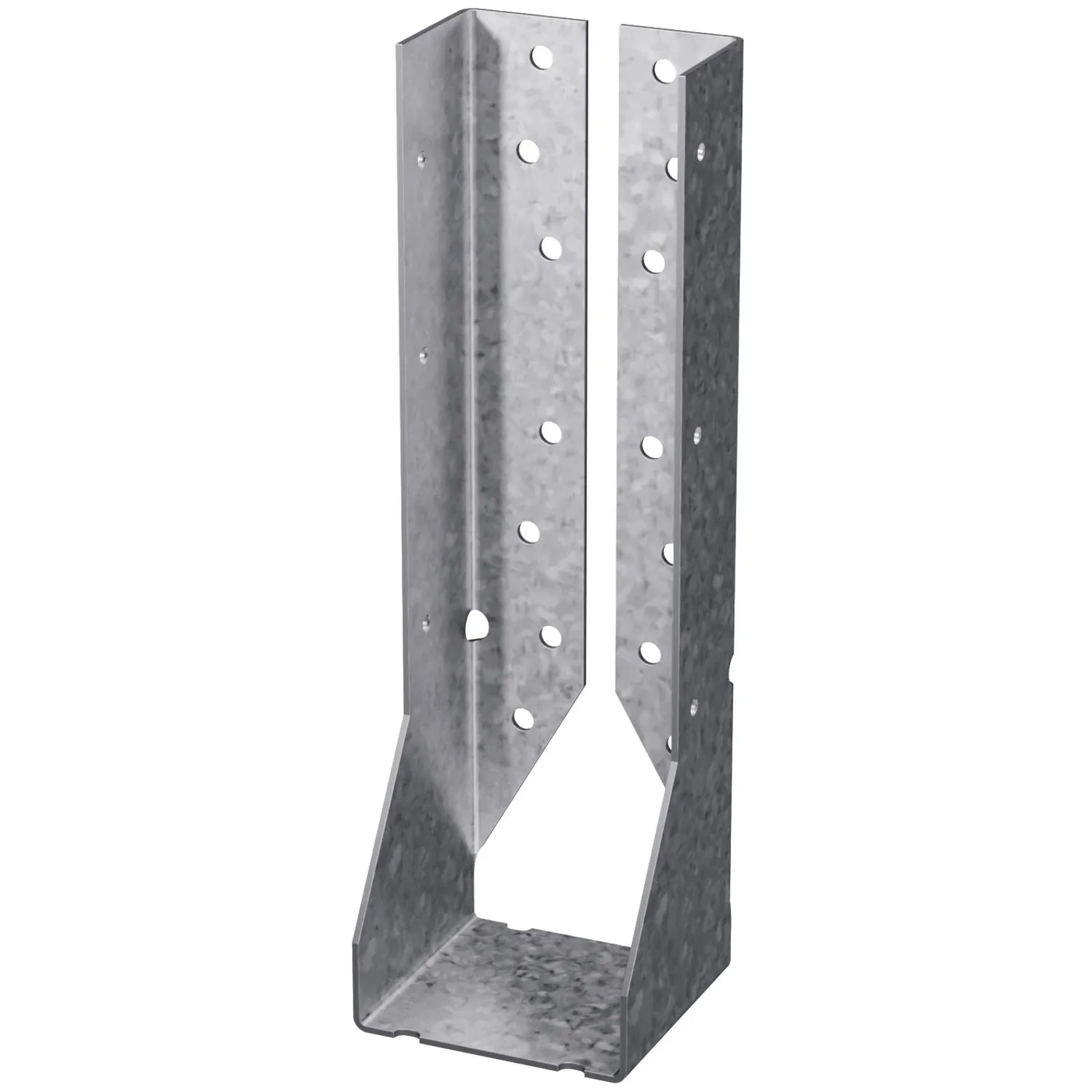

Simpson Strong-Tie HUC310 Concealed Flange Heavy Face Mount Hanger G90 Galvanized
Simpson Strong-Tie HUC310 Description
The Simpson Strong-Tie HUC310 is a heavy-duty concealed flange face-mount hanger designed for robust support in various construction applications. Made from 14-gauge steel with a G90 galvanized finish, it ensures durability and corrosion resistance.
Simpson Strong-Tie HUC310 Includes
- (1) Concealed Flange Heavy Face Mount Hanger
Simpson Strong-Tie HUC310 Features
- Concealed flange design for clean lines and aesthetic appeal
- G90 galvanized finish for corrosion resistance
- Compatible with solid sawn lumber, engineered wood products, and cold-formed steel joists
- Tested and load-rated for code compliance
Simpson Strong-Tie HUC310 Applications
- Decks and outdoor structures: Provides strong, concealed connections for deck framing, pergolas, and covered porches.
- Floor joists and ceiling framing: Ensures secure joist connections in residential and commercial construction.
- Multi-family housing and commercial buildings: Used in large-scale framing applications for apartments, offices, and mixed-use buildings.
- Engineered wood and steel framing: Compatible with LVL, PSL, and CFS joists for advanced construction needs.
- Retrofitting and renovation projects: Ideal for reinforcing existing structures while maintaining a clean, unobtrusive look.
Simpson Strong-Tie HUC310 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Fill both round and optional triangle holes with common nails to achieve maximum loads.
Simpson Strong-Tie HUC310 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 8-7/8" |
| Joist size | 3" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 2-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
