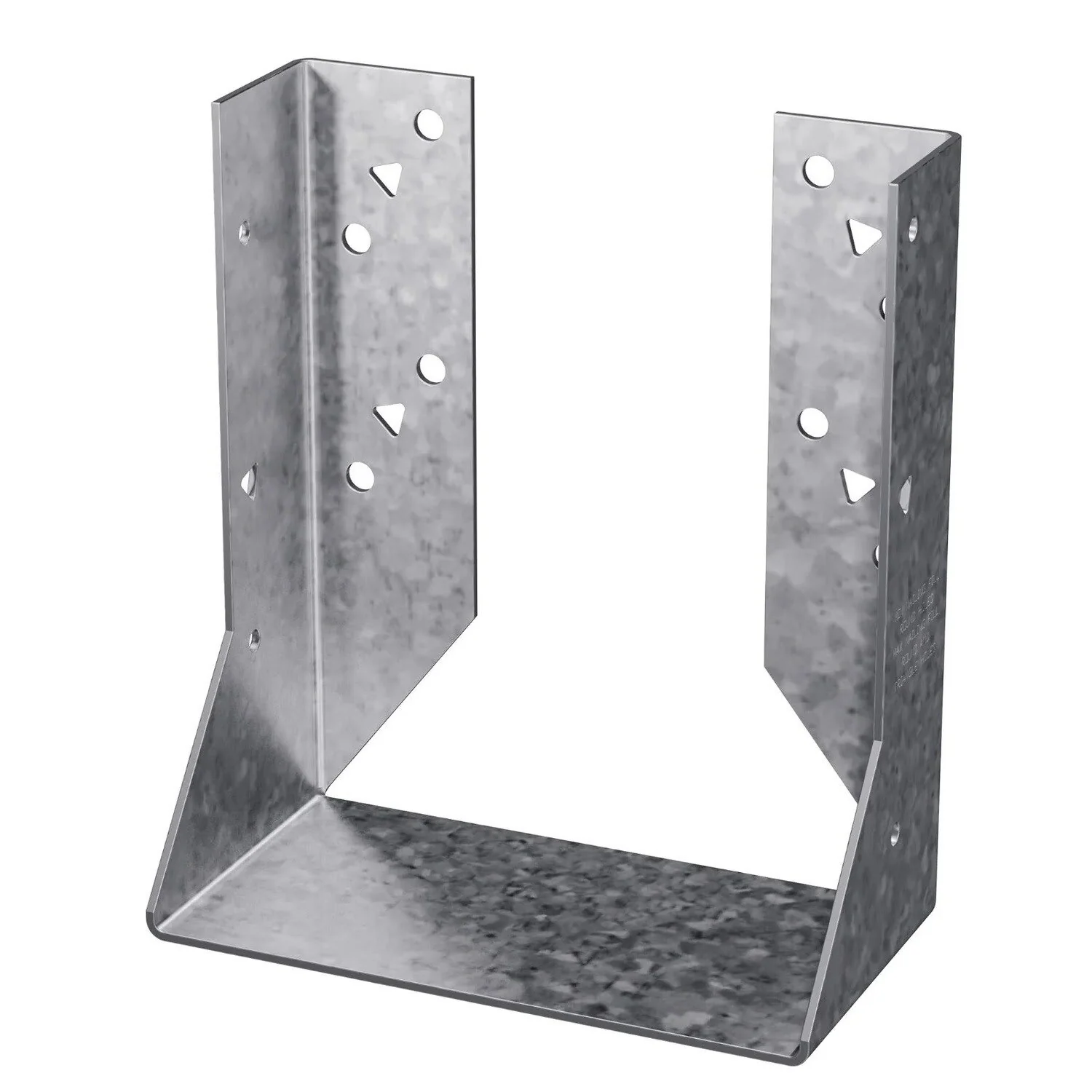

Simpson Strong-Tie HUC26-3 (Triple 2" x 6") Galvanized Face-Mount Concealed-Flange Joist Hanger
Simpson Strong-Tie HUC26-3 Description
The Simpson Strong-Tie HUC26-3 is a concealed flange heavy-duty face-mount hanger designed for triple 2x6 joists, featuring a G90 galvanized finish for durability and corrosion resistance.
Simpson Strong-Tie HUC26-3 Includes
- (1) Galvanized Face-Mount Concealed-Flange Joist Hanger for Triple 2x6
Simpson Strong-Tie HUC26-3 Features
- Concealed flange design for a clean appearance
- G90 galvanized coating for corrosion resistance
- Compatible with triple 2x6 joists
- Heavy-duty construction for enhanced strength
- Designed for schools and structures requiring additional safety factors
Simpson Strong-Tie HUC26-3 Applications
- Structural framing requiring concealed flange hangers
- Schools and buildings needing enhanced strength and safety
- Joist connections for triple 2x6 configurations
Simpson Strong-Tie HUC26-3 Installation Overview
- Use all specified fasteners
- Fill round and triangle holes for maximum load values
- Joists sloped up to 1/4:12 achieve load tables

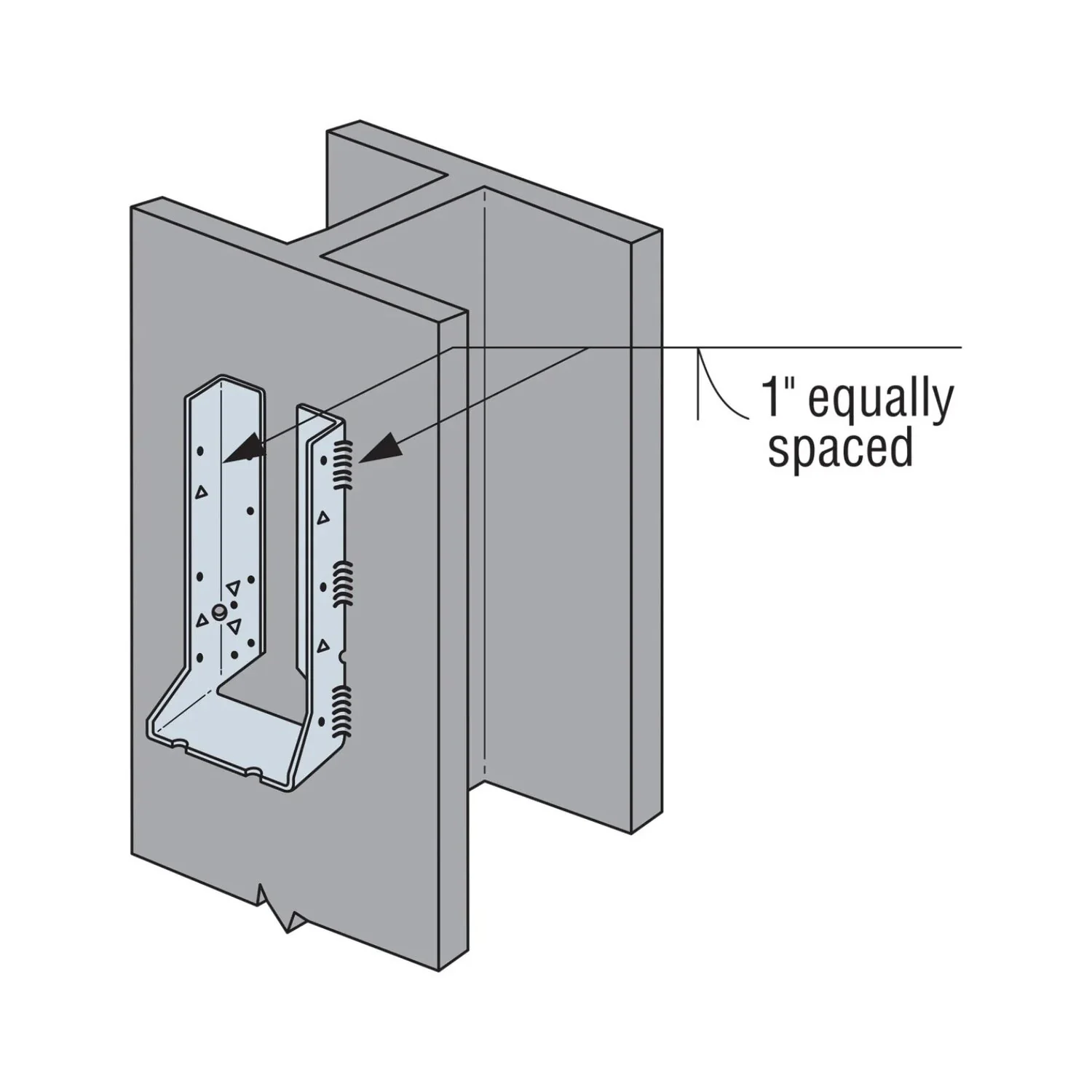

- Can be welded to steel members following technical guidelines
Simpson Strong-Tie HUC26-3 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 4-5/8" |
| Joist size | Triple 2" X 6" |
| Thickness | 14 Gauge |
| Width | 4-11/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
