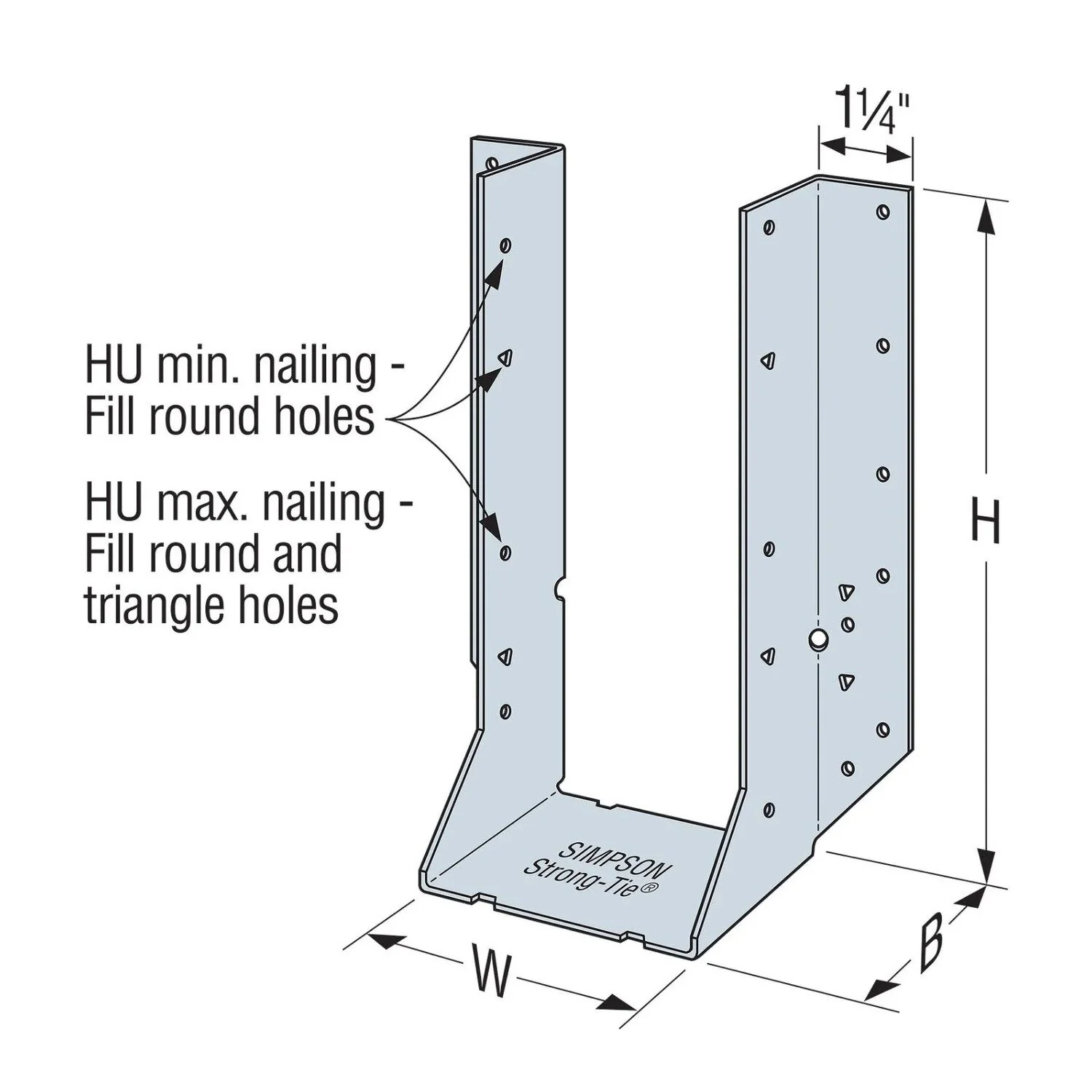

Simpson Strong-Tie HU210-2 (Double 2" x 10") 14-Gauge Galvanized Face-Mount Joist Hanger for Engineered Wood

Product image 1
Product image 2
Product image 3

Simpson Strong-Tie HU210-2 (Double 2" x 10") 14-Gauge Galvanized Face-Mount Joist Hanger for Engineered Wood

Simpson HU210-2 Description

The Simpson HU210-2 Double 2x10 Face-Mount Joist Hanger is a heavy-duty, galvanized steel hanger designed for robust support in wood-to-wood and wood-to-masonry connections.

Simpson HU210-2 Includes

  • (1) Double 2x10 Face-Mount Joist Hanger

Simpson HU210-2 Features

  • G90 Galvanized Finish for corrosion resistance
  • Versatile applications for various joist sizes
  • Code compliance for reliable structural performance
  • Crafted from durable 14-gauge steel

Simpson HU210-2 Applications

  • Deck Framing: Securely fastens joists to beams for added structural support.
  • Floor Systems: Provides strong joist support in residential and commercial flooring.
  • Roof Framing: Used in truss and rafter connections for enhanced stability.
  • Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
  • Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
  • Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson HU210-2 Installation Overview

  1. Use hot-dip galvanized nails for maximum corrosion resistance.
  2. Install into masonry and concrete using specified Titen HD screws.

Simpson HU210-2 Specifications

Material Carbon Steel
Fasteners required Face - (18) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails
For Treated Lumber No
Height 8-13/16"
Joist size Double 2" X 10"
Thickness 14 Gauge
Width 3-1/8"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
