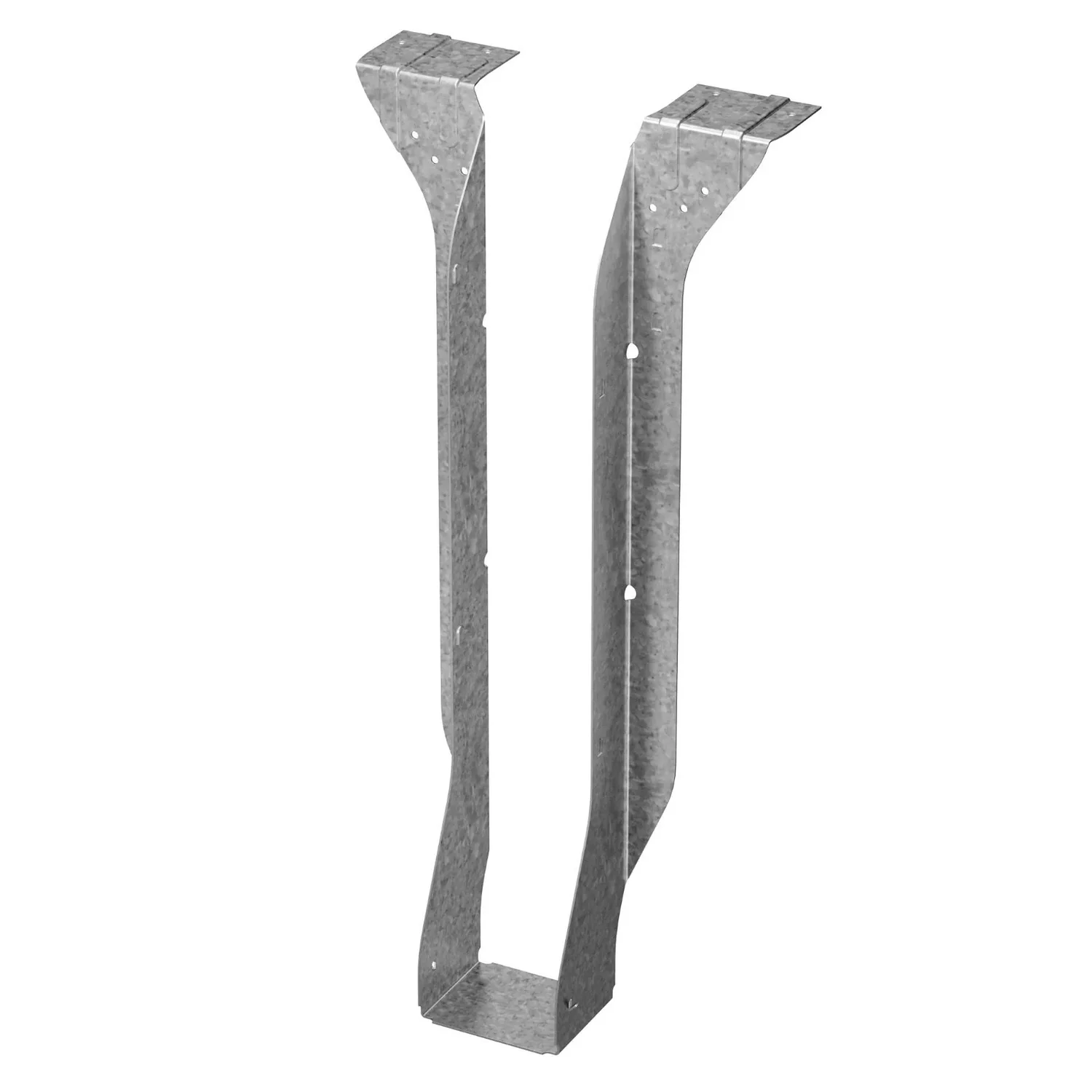

Product image 1
Product image 2
Product image 3

Simpson Strong-Tie HIT420 (3-1/2" x 20") Galvanized Top-Flange Joist Hanger for Engineered Wood

Simpson Strong-Tie HIT420 Description

The Simpson Strong-Tie HIT420 is a galvanized top-flange joist hanger designed for engineered wood, offering high load capacity and durability.

Simpson Strong-Tie HIT420 Includes

  • (1) HIT420 Galvanized Top-Flange Joist Hanger

Simpson Strong-Tie HIT420 Features

  • Time-saving PAN nailing
  • Features two face nails for higher uplift
  • Cost-effective solution for standard 90° connections
  • Made from heavy-gauge steel
  • Engineered for demanding framing applications

Simpson Strong-Tie HIT420 Applications

  • Multi-Family Construction: Offers safe, high-capacity joist support for apartments and condominiums.
  • Light Commercial Projects: Ideal for projects requiring engineered wood framing with code-compliant load capacity.
  • Custom Homes: Delivers secure connections in homes with open floor plans and long spans.
  • Mezzanines and Platform Framing: Ensures structural stability in warehouse and industrial environments using I-joist framing.

Simpson Strong-Tie HIT420 Installation Overview

  1. Install with Simpson Strong-Tie nails or screws as specified.
  2. Ensure joist end bears fully in the hanger seat before fastening.
  3. Top-flange must be fully supported on the header material.
  4. Not designed for skewed or sloped joists.

Simpson Strong-Tie HIT420 Specifications

Finish G90 Galvanized
Material 16 Gauge Steel
Joist Size 3-1/2" x 20"
Width 3-9/16"
Height 20"
Fasteners Required Top - (4) 0.162" x 3-1/2" Nails, Face - (6) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
