Simpson Strong-Tie HHETA40 (36") 12 Gauge Heavy-Duty Galvanized Embedded Truss Anchor

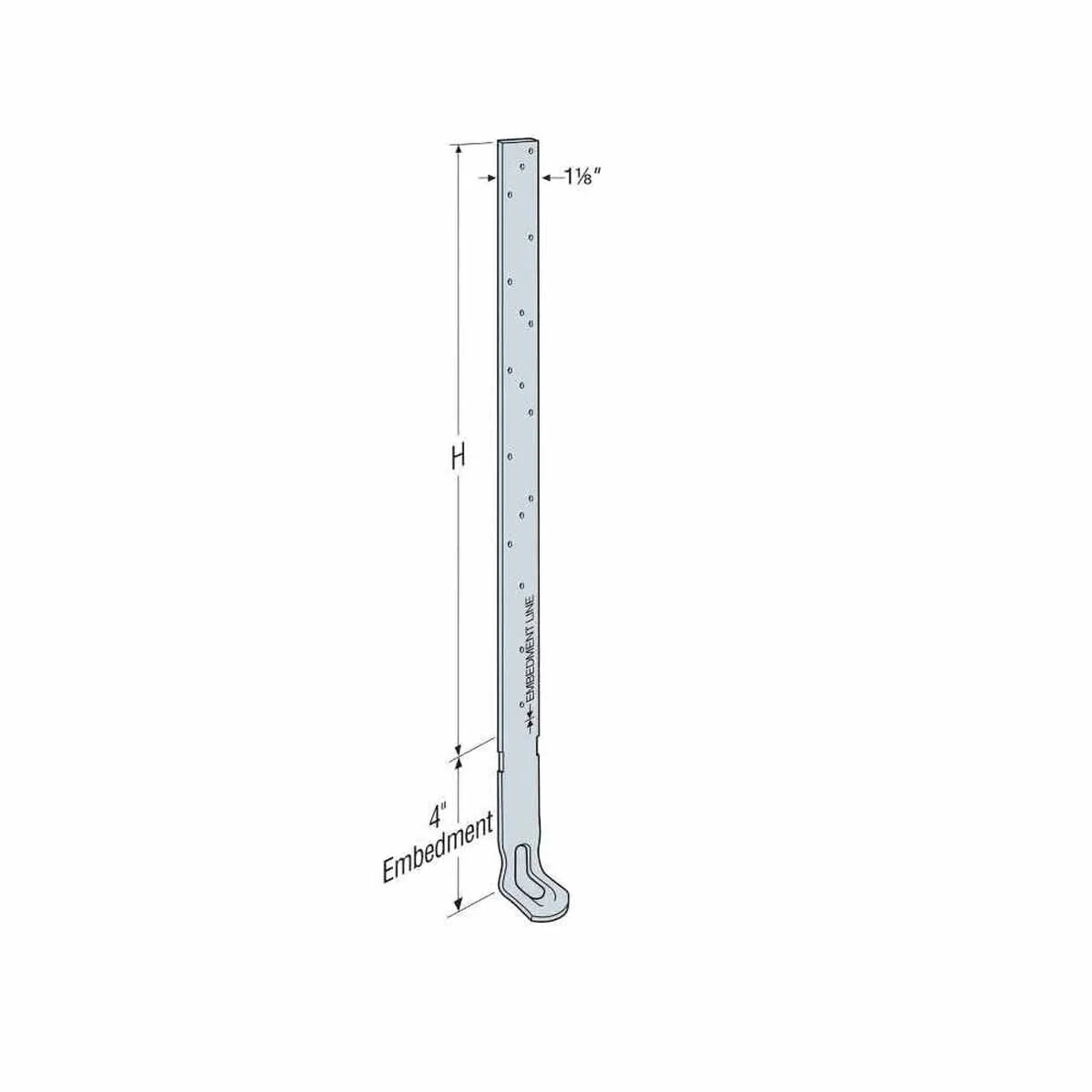

Product image 1

Simpson Strong-Tie HHETA40 (36") 12 Gauge Heavy-Duty Galvanized Embedded Truss Anchor

Simpson Strong-Tie HHETA40 Description

The HHETA40 is a heavy-duty 36-inch galvanized embedded truss anchor designed for secure attachment of roof trusses to concrete and masonry walls, ensuring stability in high-wind and seismic conditions.

Simpson Strong-Tie HHETA40 Includes

  • (1) HHETA40 Embedded Truss Anchor

Simpson Strong-Tie HHETA40 Features

  • Indented embedment line ensures accurate embedment depth
  • Compatible with the Simpson Strong-Tie TSS and TBP8 moisture barrier plate
  • Load rated for wind and seismic forces

Simpson Strong-Tie HHETA40 Applications

  • High-Wind Construction: Securely attaches roof trusses to concrete and masonry walls

Simpson Strong-Tie HHETA40 Installation Overview

  1. Use all specified fasteners as per guidelines.
  2. Embed 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall.
  3. For mislocated truss anchors, provide a shim if the gap is between 1/8 inch and 1 1/2 inches.
  4. Ensure minimum spacing of single anchors is twice the embedment depth for full load.
  5. In double anchor installations, install anchors with spoons facing outward and straps spaced no more than 1/8 inch wider than the rafter/truss width.

Simpson Strong-Tie HHETA40 Specifications

Material 14 gauge
Finish Galvanized
Height 36 inches
Fasteners Required (10) 0.148" x 1-1/2"
For Treated Lumber No

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.

$23.42
