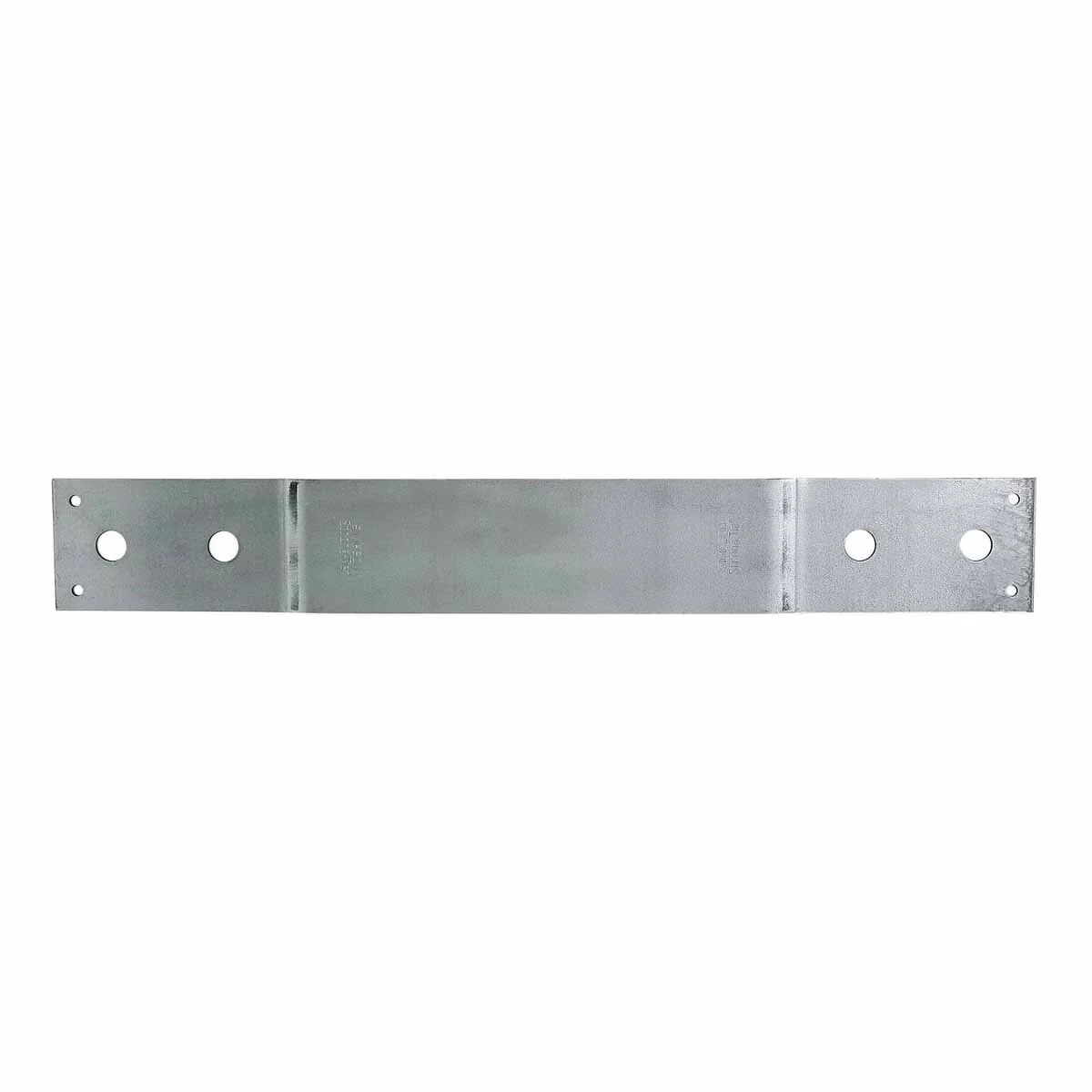

Simpson Strong-Tie HCSTR4 (3 Gauge) Hinge Connector Strap, Gray Paint for Engineered Wood Applications
Simpson Strong-Tie HCSTR4 Description
The HCSTR4 Hinge Connector Strap by Simpson Strong-Tie is designed for engineered wood applications, providing robust support and durability.
Simpson Strong-Tie HCSTR4 Includes
- (1) HCSTR4 Hinge Connector Strap
Simpson Strong-Tie HCSTR4 Features
- 3-gauge thickness for enhanced strength
- Gray paint finish for corrosion resistance
- Designed for use with Simpson Strong-Tie HC hinge connectors
- Suitable for engineered wood applications
Simpson Strong-Tie HCSTR4 Applications
- Engineered wood applications requiring hinge connector straps
- Retrofit applications to strap horizontal wood members together
Simpson Strong-Tie HCSTR4 Installation Overview
- Ensure all bolt holes are 1/32" (minimum) and 1/16" (maximum) larger than the bolt diameter
- Use all specified fasteners for secure installation
Simpson Strong-Tie HCSTR4 Specifications
| Material | 3 Gauge Steel |
| Finish | Gray Paint |

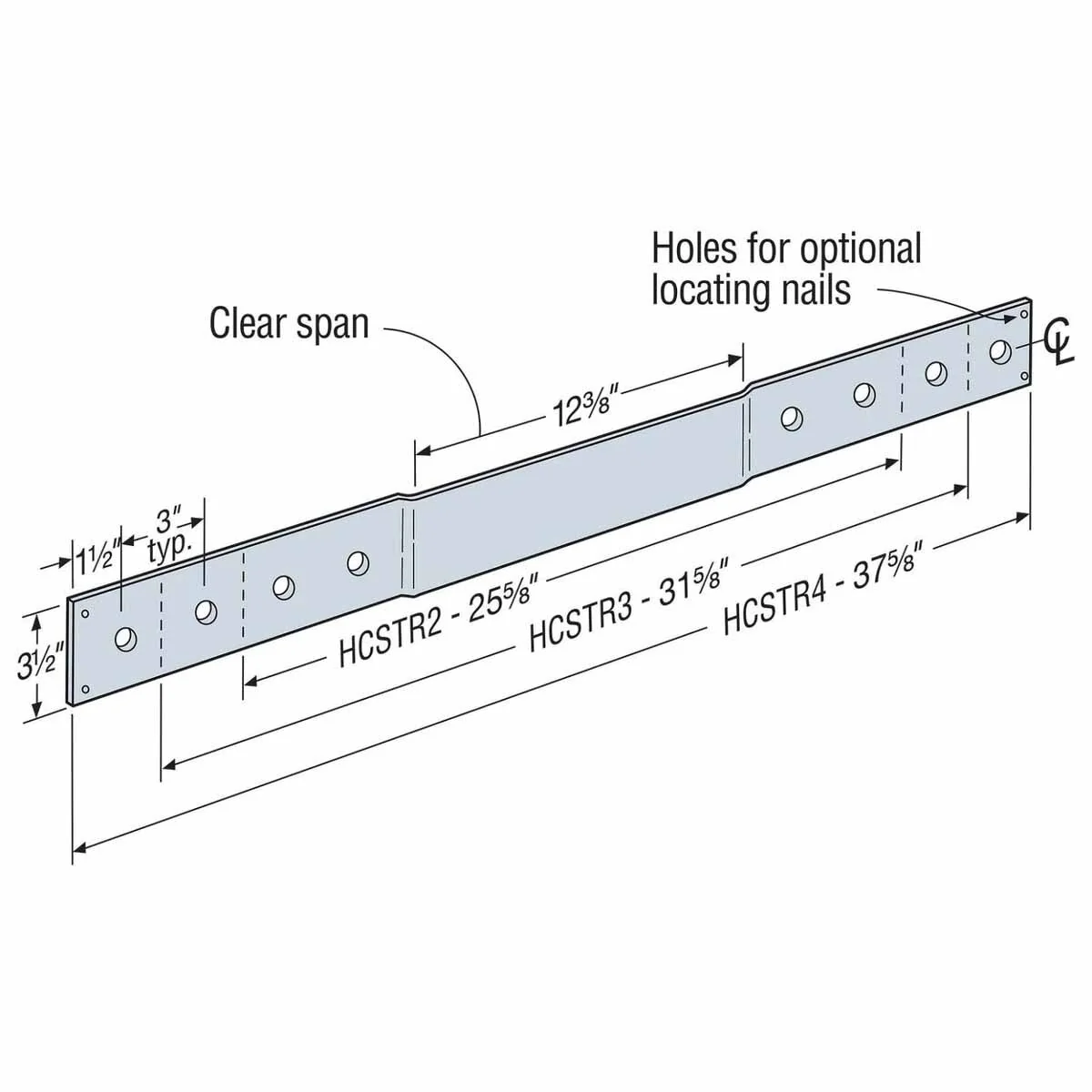

| Length | 37-5/8" |
| Width | 3-1/2" |
| Fasteners Required | (8) 3/4" Diameter |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
$62.39
Simpson Strong-Tie HCSTR4 (3 Gauge) Hinge Connector Strap, Gray Paint for Engineered Wood Applications—
$62.39
