Simpson Strong-Tie H1.81Z Hurricane Tie ZMAX Finish for Engineered Lumber

Product image 1
Product image 2
Product image 3

Simpson Strong-Tie H1.81Z Hurricane Tie ZMAX Finish for Engineered Lumber

Simpson Strong-Tie H1.81Z Description

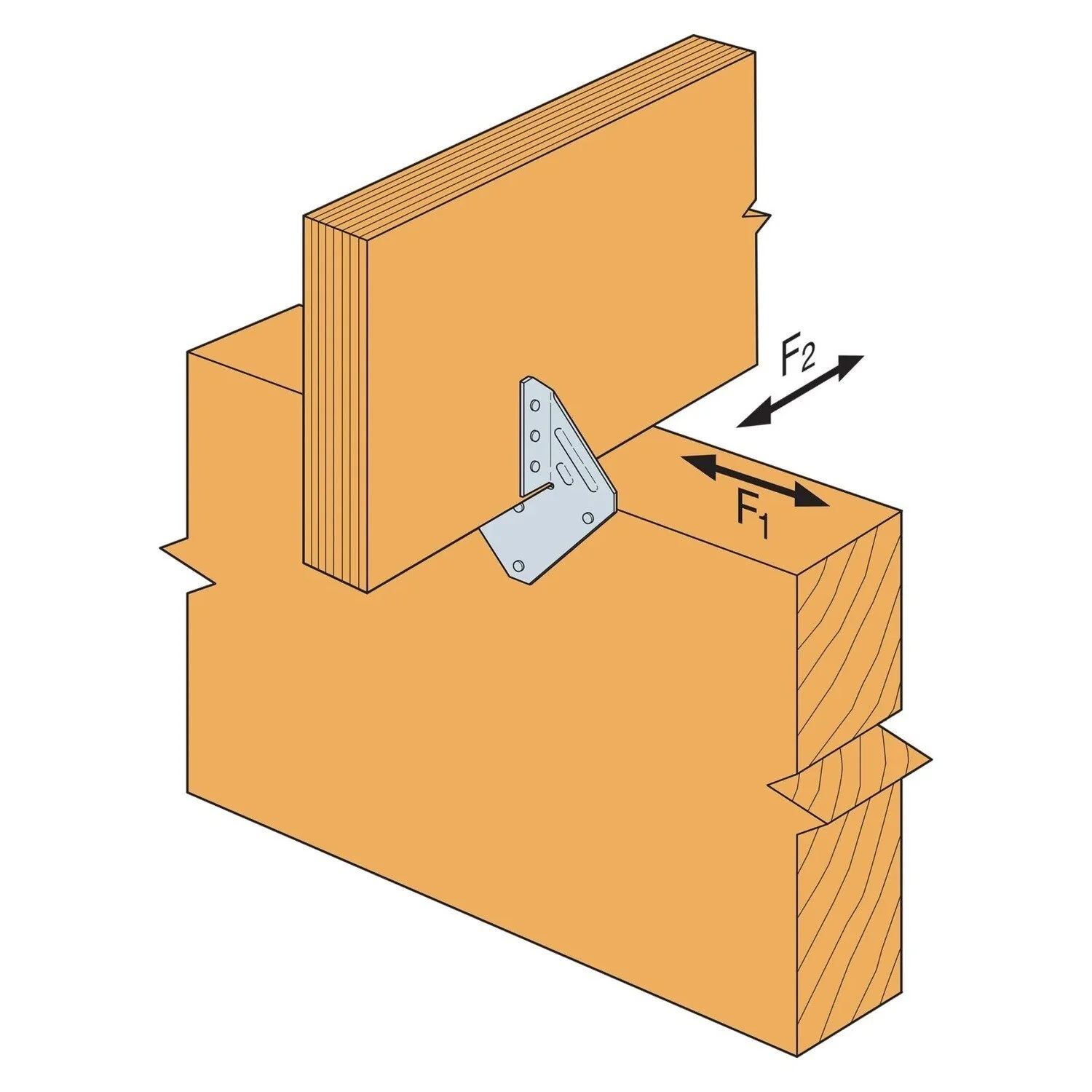

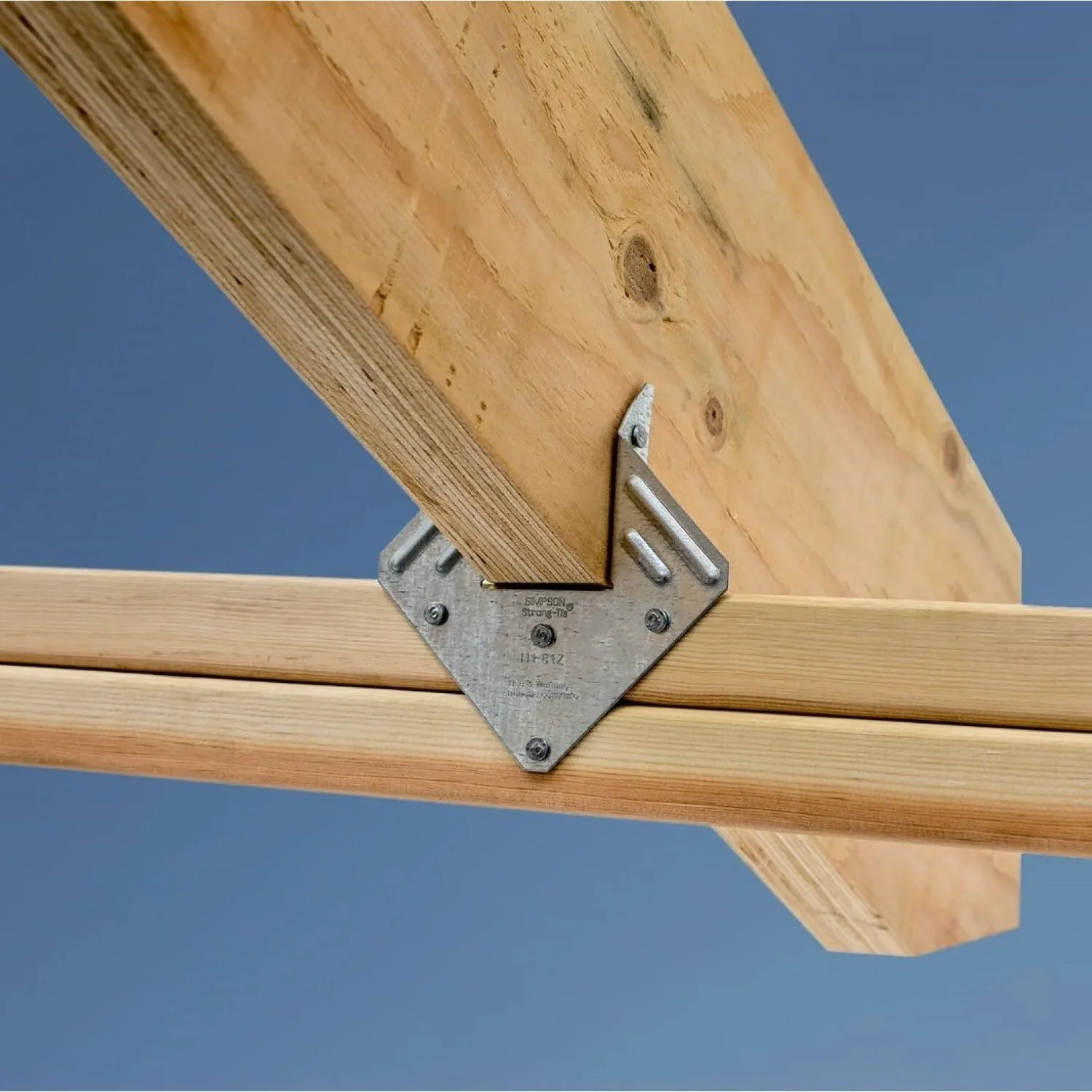

The Simpson Strong-Tie H1.81Z Hurricane Tie provides a secure connection between 1-3/4" LVL rafters and the top wall plate, designed to resist wind and seismic forces.

Simpson Strong-Tie H1.81Z Includes

  • (1) Hurricane Tie

Simpson Strong-Tie H1.81Z Features

  • Positive connection for 1-3/4" LVL rafters and top wall plate
  • G185 ZMAX galvanized finish for corrosion resistance
  • Compatible with hot-dip galvanized fasteners
  • Wider seat for engineered lumber
  • Engineered pre-cut holes for 0.148" x 1-1/2" connector nails

Simpson Strong-Tie H1.81Z Applications

  • Securing LVL rafters to top wall plates in construction
  • Providing resistance against wind and seismic forces

Simpson Strong-Tie H1.81Z Installation Overview

  1. Ensure the use of all specified fasteners
  2. Use hot-dip galvanized nails with ZMAX and HDG connector products
  3. Install with flanges facing inwards or outwards
  4. Do not replace solid blocking with hurricane ties
  5. Fit pre-cut holes with 0.148" x 1-1/2" connector nails

Simpson Strong-Tie H1.81Z Specifications

Finish ZMAX
Fasteners required To Rafters/Truss - (6) 0.131" x 1-1/2" Nails OR (6) SD9112 Screws, Top Plates - (4) 0.131" x 2-1/2" Nails OR (4) SD9112 Screws
For Treated Lumber Yes
Manufacturer name Simpson Strong-Tie

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
