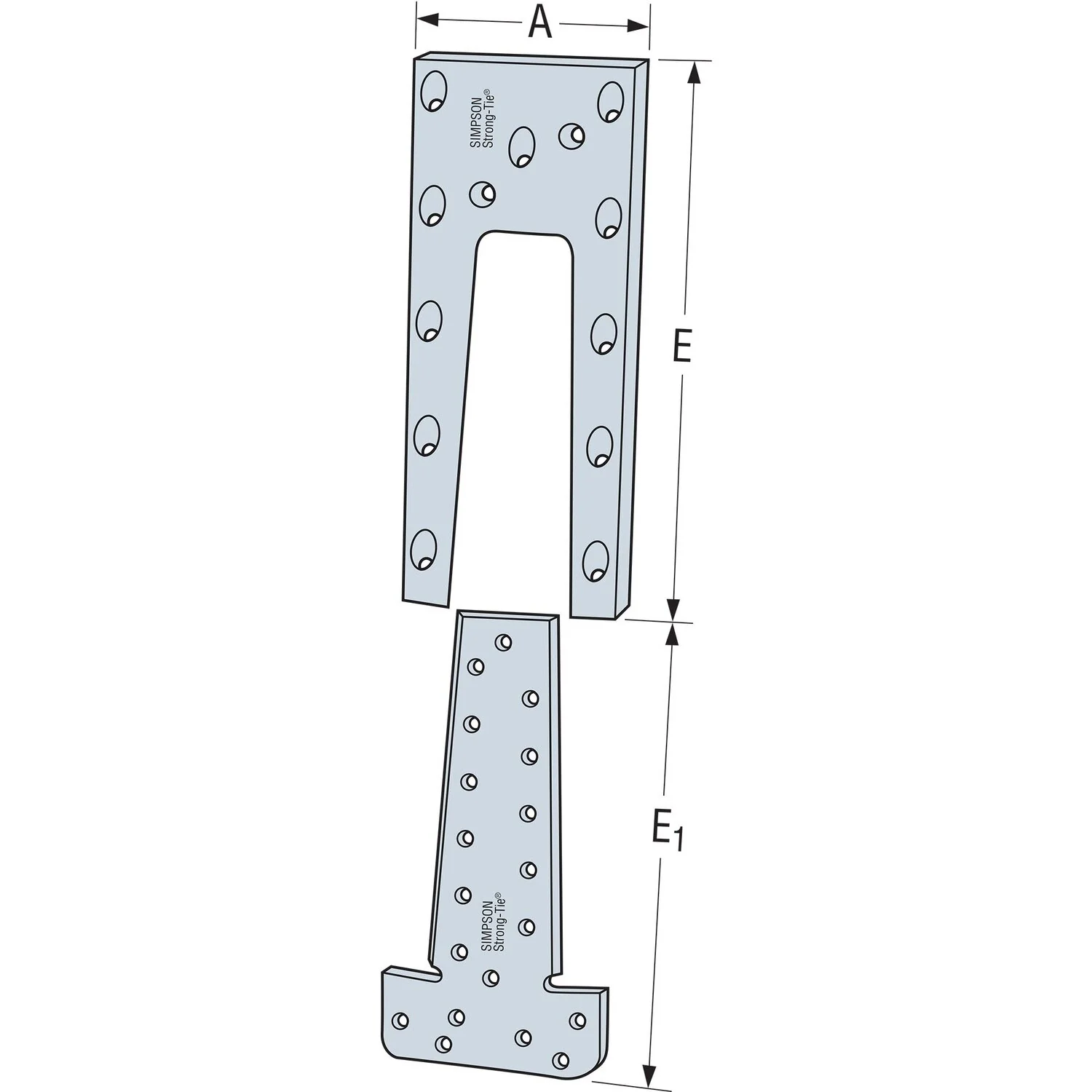

Simpson Strong-Tie ETB160A-SCRB Hidden Timber Connector with Screws for Glulam Beams

Simpson Strong-Tie ETB160A-SCRB Features

• Faster than other time-consuming methods and requires removal of less beam material
• Three sizes address common beam sizes from 4x6 through 6x12
• Connector can be routed into the beam end for a completely flush installation
• Templates available to make accurate installation more efficient

Simpson Strong-Tie ETB160A-SCRB Applications

• Glulam beam connections for structural support
• Indoor architectural projects requiring hidden connectors

Simpson Strong-Tie ETB160A-SCRB Installation Overview

1. Rout a 3/8" (10mm) deep pocket into the side of the supporting beam for the lower plate.
2. Install lower plate with 16d hot-dip galvanized nails (not included in kit).
3. Attach horseshoe plate onto the end of the supported beam using SCRB screws supplied in the kit.
4. Ensure screws are installed at a downward angle (approx. 45°).
