Simpson Strong-Tie ECCQ46SDS2.5 (4x Beam, 6x Post) End Column Cap with SDS Screws
Simpson ECCQ46SDS2.5 Description
The Simpson ECCQ46SDS2.5 End Column Cap provides strong and reliable column-to-beam connections for wood construction, featuring durable steel construction and a gray paint finish.
Simpson ECCQ46SDS2.5 Includes
- (1) End Column Cap
- (14) 1/4" x 2 1/2" SDS Heavy-Duty Connector Screws
Simpson ECCQ46SDS2.5 Features

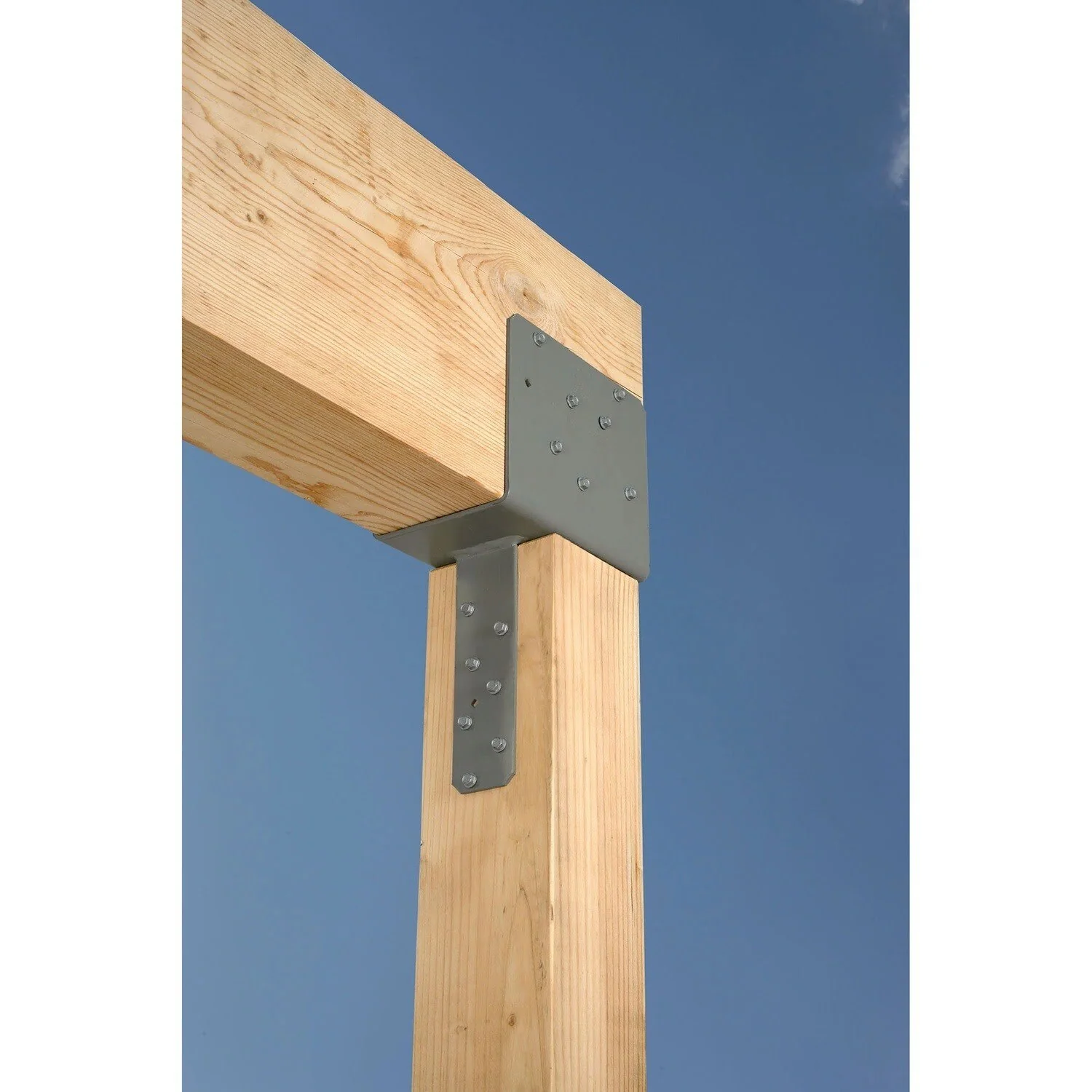

- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable heavy-gauge steel
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson ECCQ46SDS2.5 Applications
- Wood construction requiring column-to-beam connections
- End-of-beam applications for enhanced structural support
- Projects needing increased uplift load capacity for earthquake or wind loading
Simpson ECCQ46SDS2.5 Installation Overview
- Fasten with 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws provided with the column cap
- Use stainless-steel Strong-Drive screws with stainless-steel connectors
- Provide dimensions for rough-cut lumber sizes
- Optional W2 dimension may be specified with any column size given
Simpson ECCQ46SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 4x |
| Post size | 6x |
| Thickness | 7 Gauge |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
