Simpson Strong-Tie ECC44ROT End Column Cap 90 Degree Rotated Straps Gray Paint for 4x Beam and 4x Post

Product image 1
Product image 2

Simpson Strong-Tie ECC44ROT End Column Cap 90 Degree Rotated Straps Gray Paint for 4x Beam and 4x Post

Simpson Strong-Tie ECC44ROT Description

The Simpson ECC44ROT End Column Cap enhances the strength and stability of construction projects, providing durable column-to-beam connections for wood construction.

Simpson Strong-Tie ECC44ROT Includes

  • (1) Simpson ECC44ROT End Column Cap

Simpson Strong-Tie ECC44ROT Features

  • Provides strong end-of-beam connection for column-to-beams.
  • Extended area of the column seat offers additional surface area of bearing to distribute the load.
  • Made from heavy-gauge steel for durability.
  • Finished with Gray Paint coating.
  • Certified welds for strength and loading.
  • Increased uplift loads for earthquake or wind loading.
  • Features diamond holes for temporary fastening during installation.
  • Bolt spacing meets NDS code requirements.

Simpson Strong-Tie ECC44ROT Applications

  • Column-to-beam connections in wood construction.
  • End-of-beam applications requiring enhanced support.
  • Projects requiring increased uplift loads for earthquake or wind loading.

Simpson Strong-Tie ECC44ROT Installation Overview

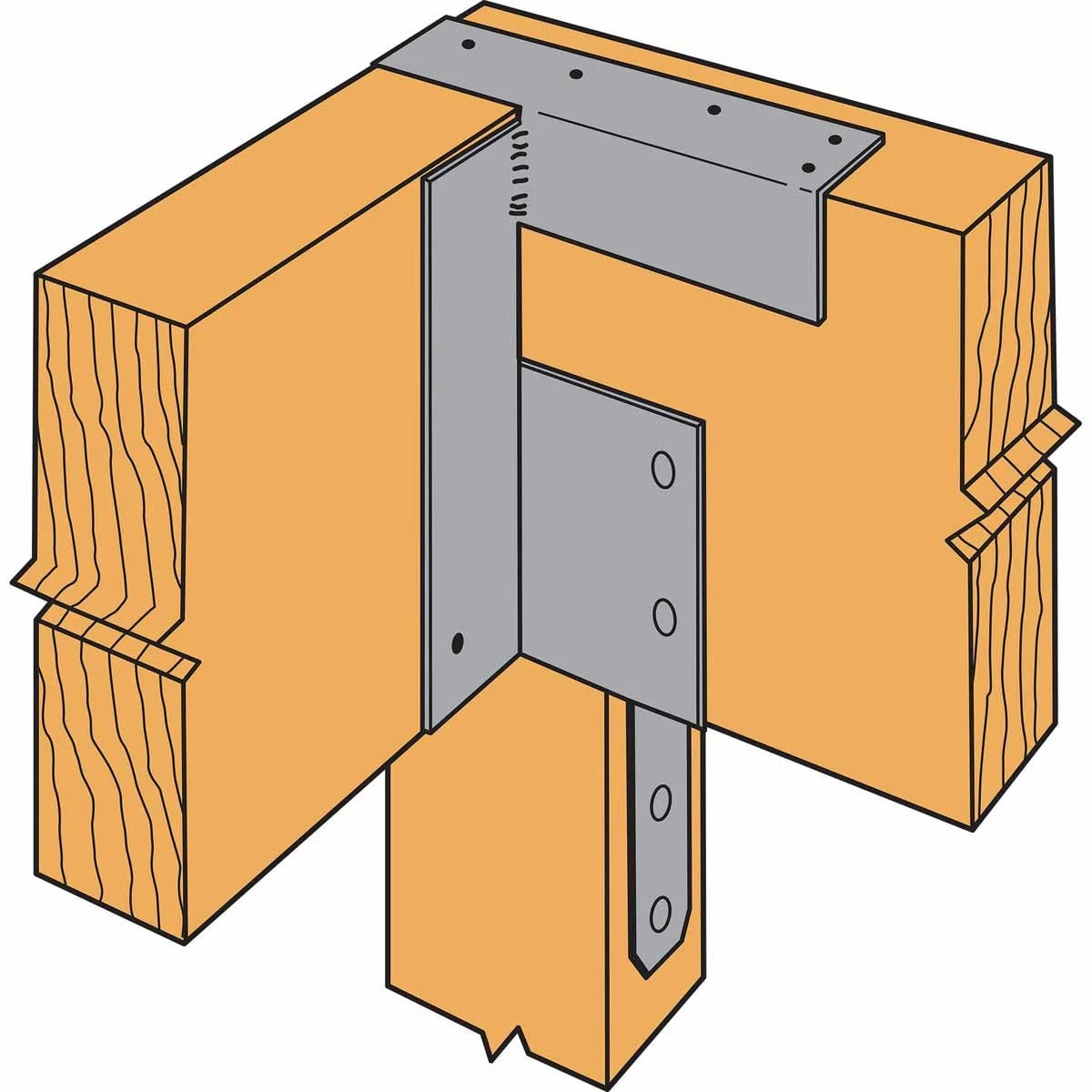

  1. Position the column cap on the post and beam.
  2. Secure temporarily using diamond holes.
  3. Fasten using specified machine bolts.
  4. Ensure bolt spacing meets NDS code requirements.
  5. Verify stability and alignment of the connection.

Simpson Strong-Tie ECC44ROT Specifications

Finish Gray Paint
Material Steel
Beam size 4x
Fasteners required Beam - (1) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts
For Treated Lumber No
Post size 4x
Thickness 7 Gauge
