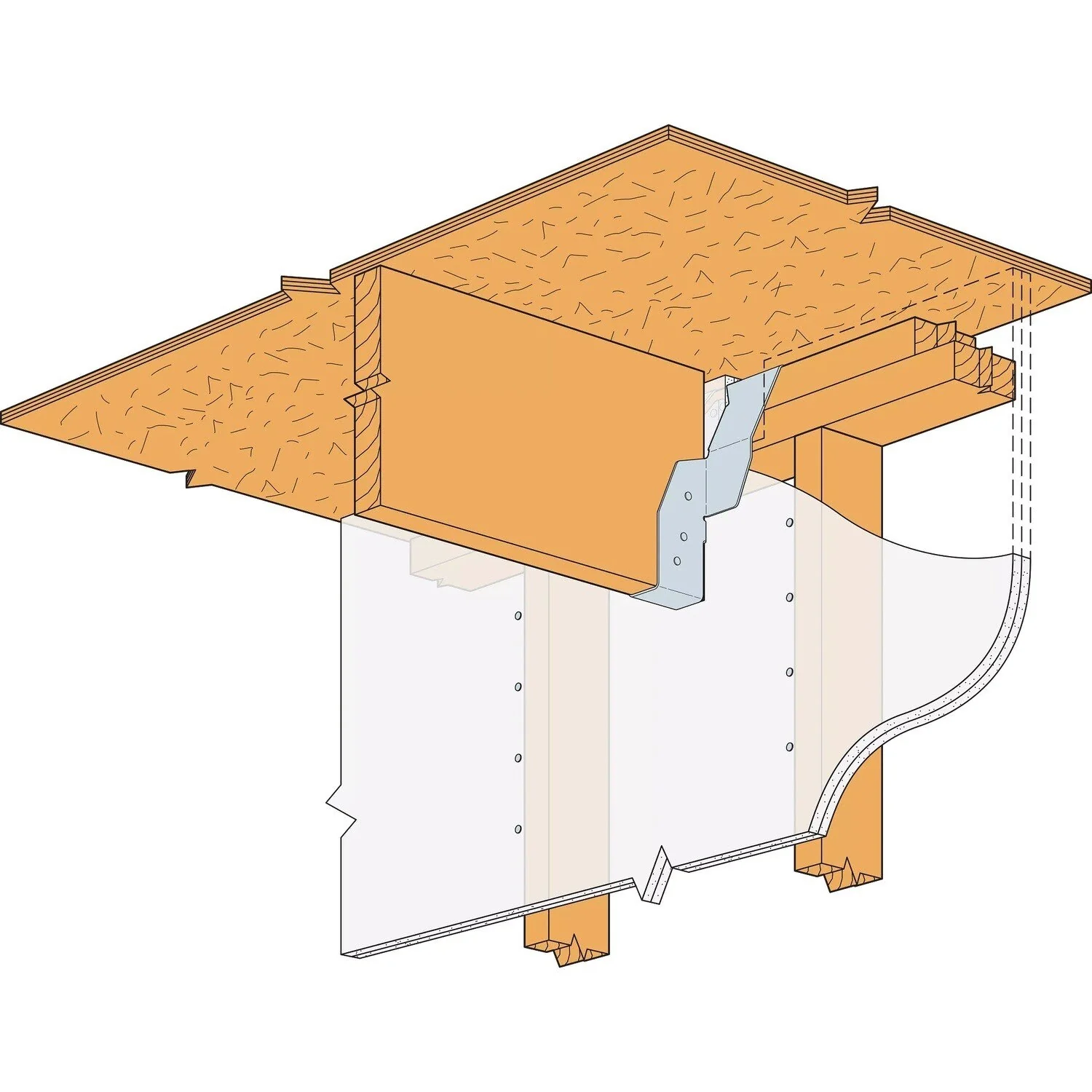

Product image 4

Simpson Strong-Tie DGT3.62/24 (3-1/2" x 24") Top-Flange Fire Wall Hanger for Engineered Wood

Simpson Strong-Tie DGT3.62/24 Description

The Simpson DGT3.62/24 Top-Flange Fire Wall Hanger is designed for robust fire-rated connections in multifamily and multilevel Type III residential constructions.

Simpson Strong-Tie DGT3.62/24 Includes

  • (1) Top-Flange Fire Wall Hanger

Simpson Strong-Tie DGT3.62/24 Features

  • Two-hour fire rating for 2x4 or thicker walls
  • Innovative top-flange design for back-to-back installation on 2x6 walls
  • Space for two layers of 5/8" drywall after framing
  • Compatible with power-driven or hand-installed nails
  • Made from galvanized steel for durability

Simpson Strong-Tie DGT3.62/24 Applications

  • Multifamily Residential Buildings: Provides fire-rated connections essential for apartment complexes and condominiums.
  • Commercial Structures: Ensures compliance with fire safety standards in offices and retail spaces.
  • Type III Construction: Ideal for buildings requiring non-combustible exterior walls with interior wood framing.
  • Retrofit Projects: Suitable for upgrading existing structures to meet fire safety standards.

Simpson Strong-Tie DGT3.62/24 Installation Overview

  1. Use all specified fasteners as per the manufacturer's guidelines.
  2. Install the hanger similarly to standard top-flange hangers.
  3. Ensure stud wall-plate splices occur at stud locations.
  4. For I-joist applications, web stiffeners are required.
  5. When attaching to a steel header, weld the hanger using specified fillet welds and secure with joist nails.

Simpson Strong-Tie DGT3.62/24 Specifications

Finish G90 Galvanized
Material Galvanized Steel
Fasteners required TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails, FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails, POST: (6) 0.148 in. x 1-1/2 in. nails
For Treated Lumber No
Height 23-15/16"
Joist size 3-1/2" X 24"
Manufacturer name Simpson Strong-Tie
Quantity 1
Thickness 12 Gauge
Width 3-5/8"

NOTE: Ensure all specified fasteners are used and installed correctly to achieve the published load values.
