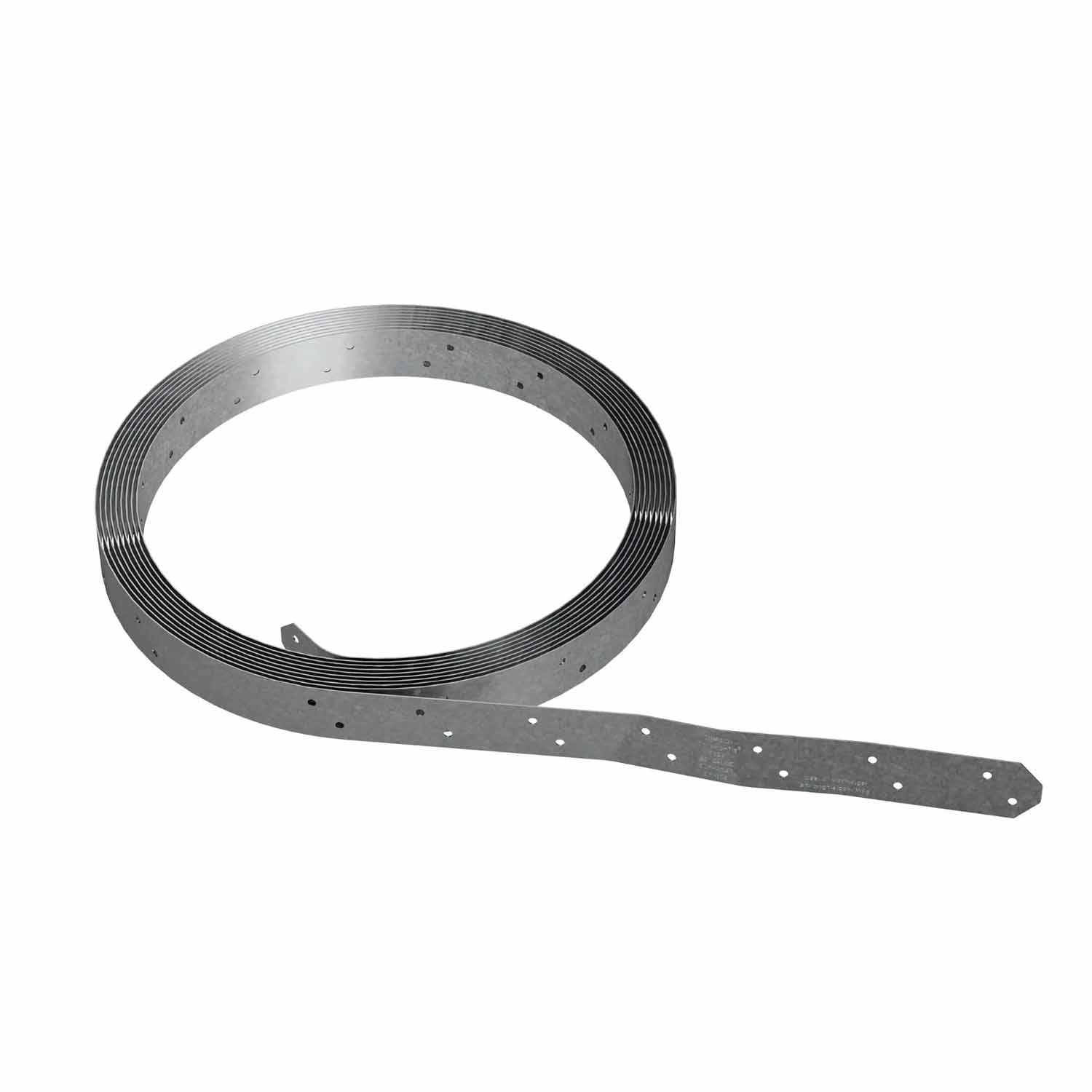

Simpson Strong-Tie CS20-R (20-Gauge 25') Galvanized Coiled Strap

Product image 1
Product image 2
Product image 3

Simpson Strong-Tie CS20-R (20-Gauge 25') Galvanized Coiled Strap

Simpson CS20-R Description

The Simpson Strong-Tie CS20-R strap is a continuous utility strap that can be cut to length on the job site for maximum versatility.

Simpson CS20-R Includes

  • (1) 20-Gauge Galvanized Coiled Strap 25 ft.

Simpson CS20-R Features

  • Available in shorter rolls for smaller projects

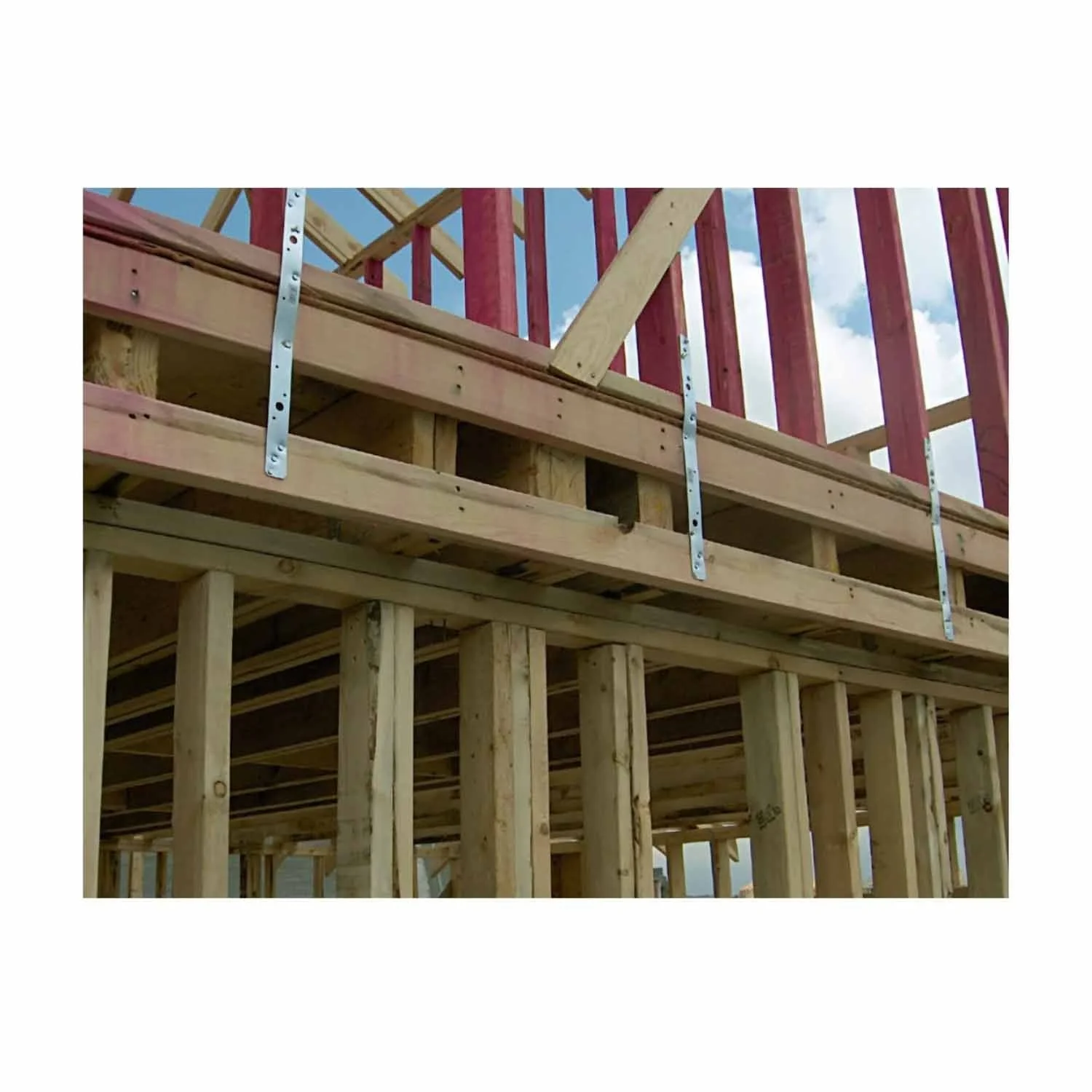

  • Used for roof uplift and shear wall overturning resistance
  • A cost-effective alternative to pre-cut straps

Simpson CS20-R Applications

  • Roof uplift resistance
  • Shear wall overturning resistance
  • General wood-to-wood fastening

Simpson CS20-R Installation Overview

  1. Use all specified fasteners
  2. Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward
  3. Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances
  4. The cut length of the strap shall be equal to twice the 'End Length' noted in the table plus the clear span dimension

Simpson CS20-R Specifications

Gauge 20
Width 1-1/4"
Length 25 ft.
Finish Galvanized (G90)
Weight 3.9 lb

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

$43.50
Simpson Strong-Tie CS20-R (20-Gauge 25') Galvanized Coiled Strap—
$43.50
