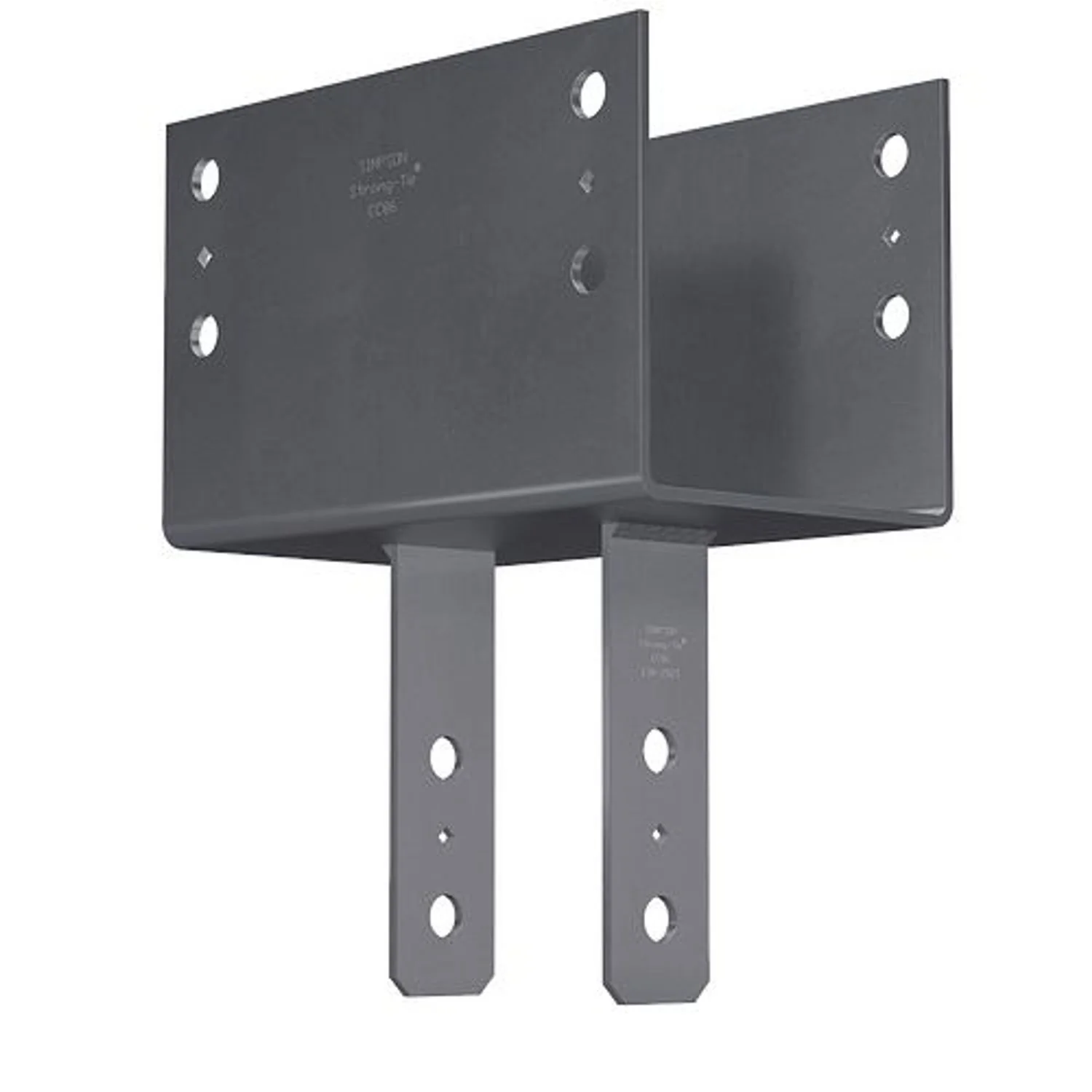

Simpson Strong-Tie CC96 (8-3/4" Beam, 6x Post) Heavy-Duty Column Cap - Structural Wood Connector
Simpson Strong-Tie CC96 Description
The Simpson CC96 Column Cap enhances the strength and stability of your construction projects, providing a durable column-to-beam connection for wood construction.
Simpson Strong-Tie CC96 Includes
- (1) CC96 Column Cap
Simpson Strong-Tie CC96 Features
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Heavy gauge steel construction with gray paint finish
Simpson Strong-Tie CC96 Applications

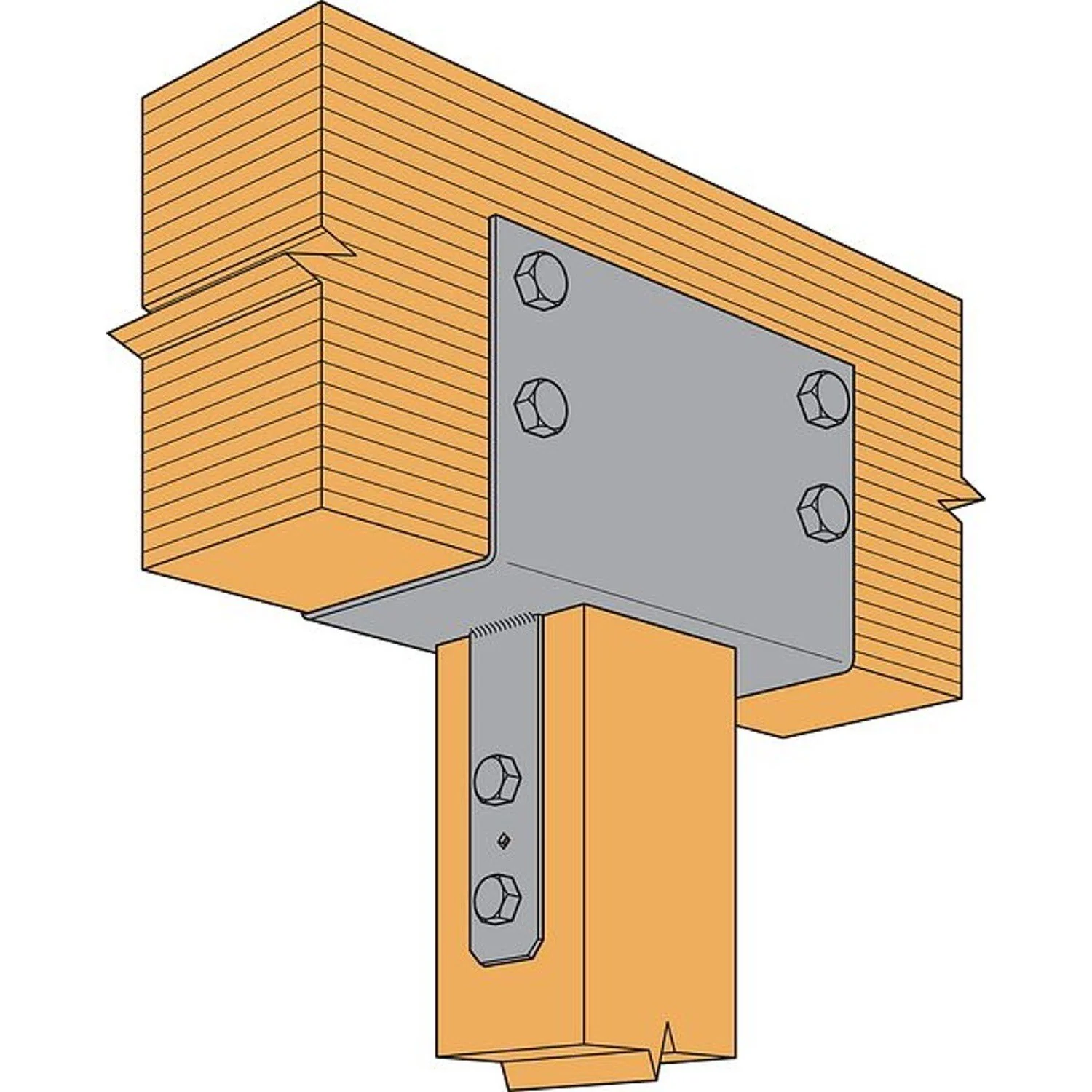

- Wood-to-wood column-to-beam connections
- Construction projects requiring enhanced load distribution
Simpson Strong-Tie CC96 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Ensure alignment of column and beam sides in the same vertical plane

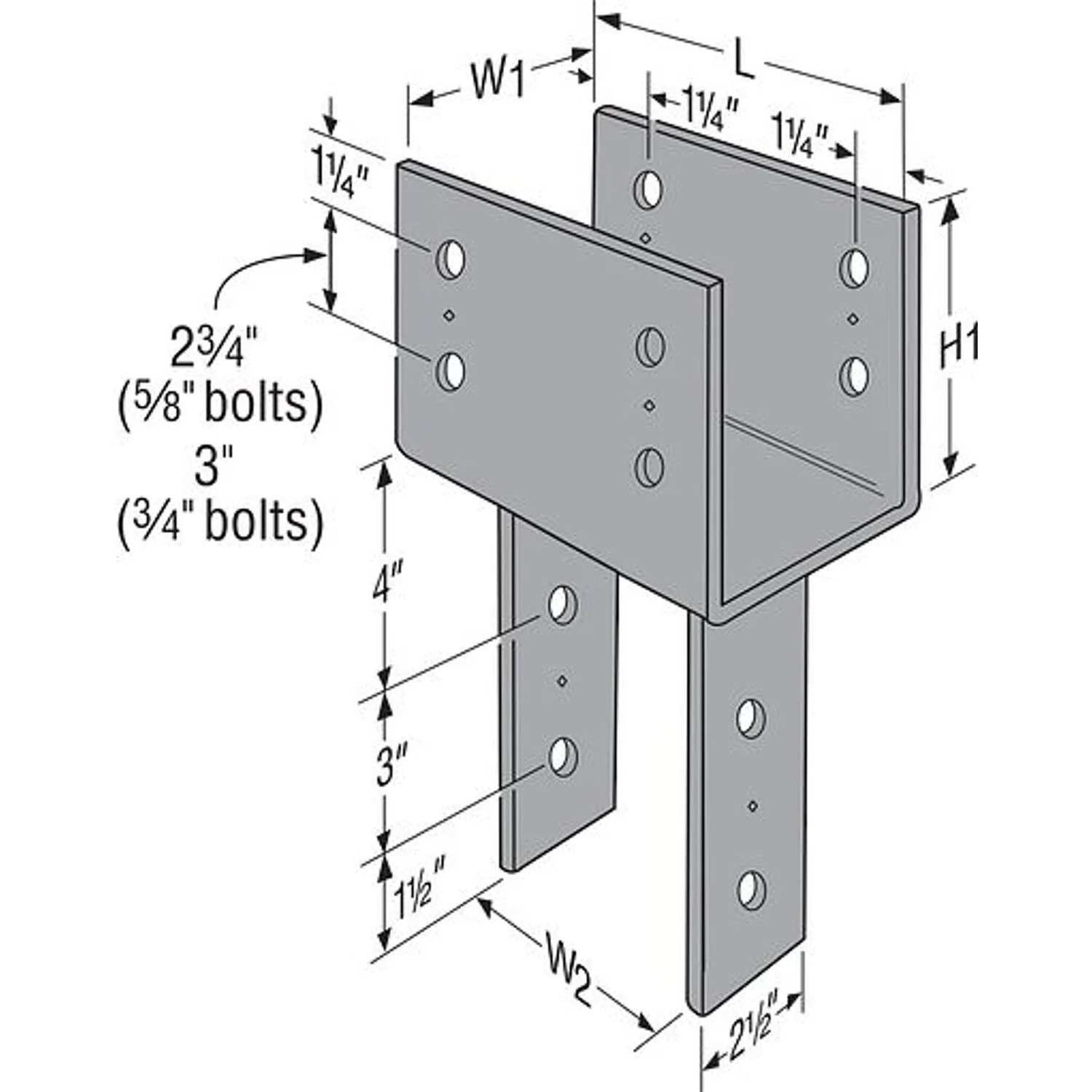

Simpson Strong-Tie CC96 Specifications
| Material | Heavy Gauge Steel |
| Finish | Gray Paint |
| Beam size | 8-3/4" |
| Post size | 6x |
| Thickness | 3 Gauge |
| Fasteners required | Beam - (4) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
NOTE: This item is made to order and is non-returnable.
