Simpson Strong-Tie ATR5/8X8ZP (5/8" x 8") Zinc-Plated All-Thread Rod for Structural Anchoring
Simpson Strong-Tie ATR5/8X8ZP Description
The Simpson Strong-Tie ATR All-Thread Rod is engineered for high-strength anchoring and structural applications, featuring a zinc-plated finish for corrosion resistance.
Simpson Strong-Tie ATR5/8X8ZP Includes
- (1) Zinc-Plated 5/8" x 8" All-Thread Rod
Simpson Strong-Tie ATR5/8X8ZP Features
- Meets ASTM F1554 Grade 36, A36, or A307 standards with 36 ksi yield strength
- Fully threaded design for flexible installation
- Zinc-plated finish enhances durability
- Suitable for ATS, URS, and general structural applications
- Available in various sizes to meet specific project requirements
Simpson Strong-Tie ATR5/8X8ZP Applications
- Structural anchoring in construction projects

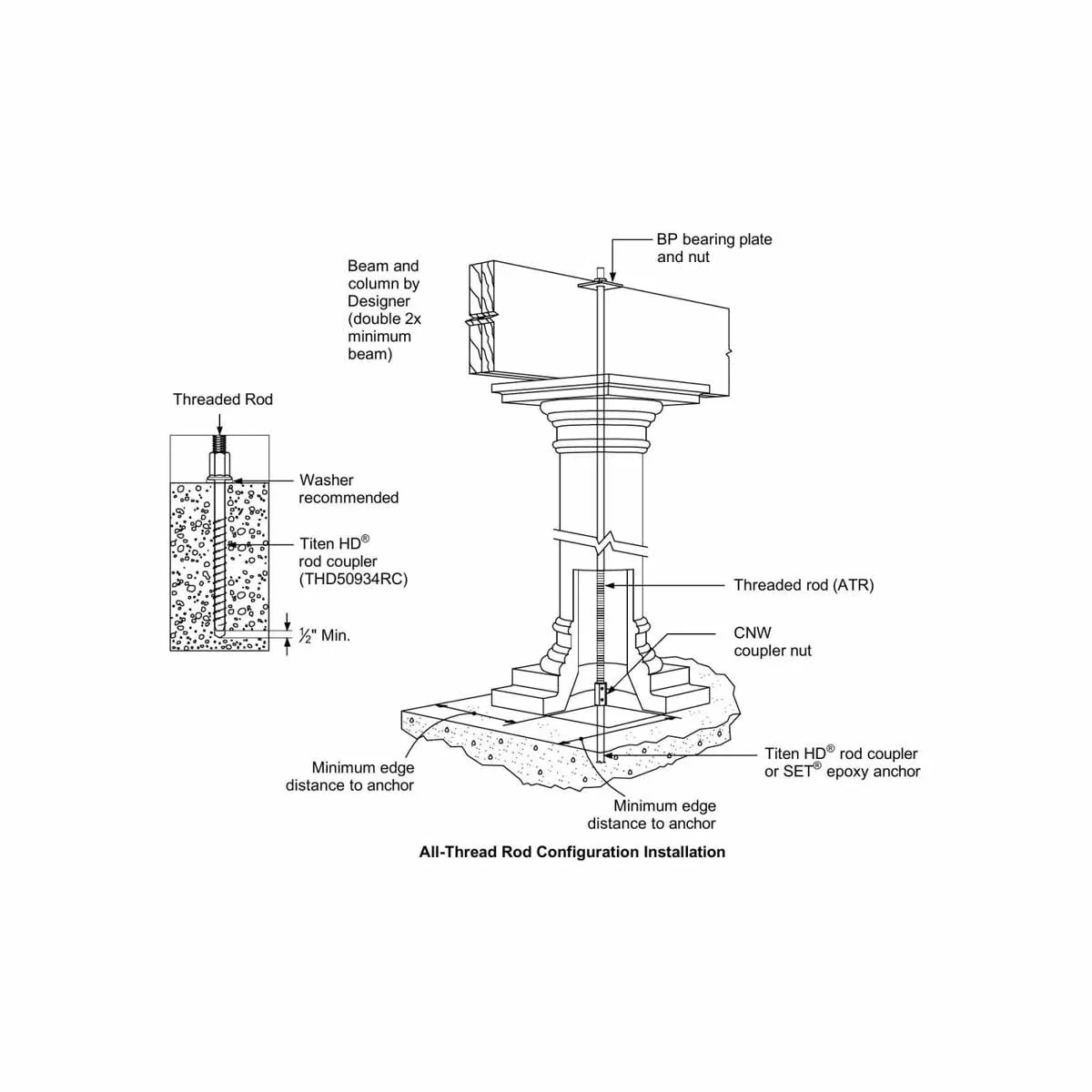

- Shearwall overturning restraint in Simpson Strong-Tie Anchor Tiedown System (ATS)
- Wind Uplift Restraint System (URS)
- General anchoring applications
Simpson Strong-Tie ATR5/8X8ZP Specifications
| Diameter | 5/8" |
| Finish | Zinc |
| Length | 8" |
| Material | Carbon Steel |
| Standard | ATSM F1554 Grade 36, A36 or A307 |
| Tension Capacity | 6,675 lbs. |
| Thread type | Coarse |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
