Simpson Strong-Tie ATR1X24 (1" x 24") Fully Threaded All-Thread Rod for Structural Anchoring and Bracing
Simpson Strong-Tie ATR1X24 Description
The Simpson Strong-Tie ATR1X24 is a fully threaded all-thread rod designed for structural anchoring and bracing applications. Made from low carbon steel, it meets ASTM F1554 Grade 36 standards and offers a plain finish for cost-effective use.
Simpson Strong-Tie ATR1X24 Includes
- (1) Fully Threaded All-Thread Rod
Simpson Strong-Tie ATR1X24 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
Simpson Strong-Tie ATR1X24 Applications
- Structural anchoring and bracing
- Shearwall overturning restraint
- Wind uplift restraint systems
- General tension transfer applications

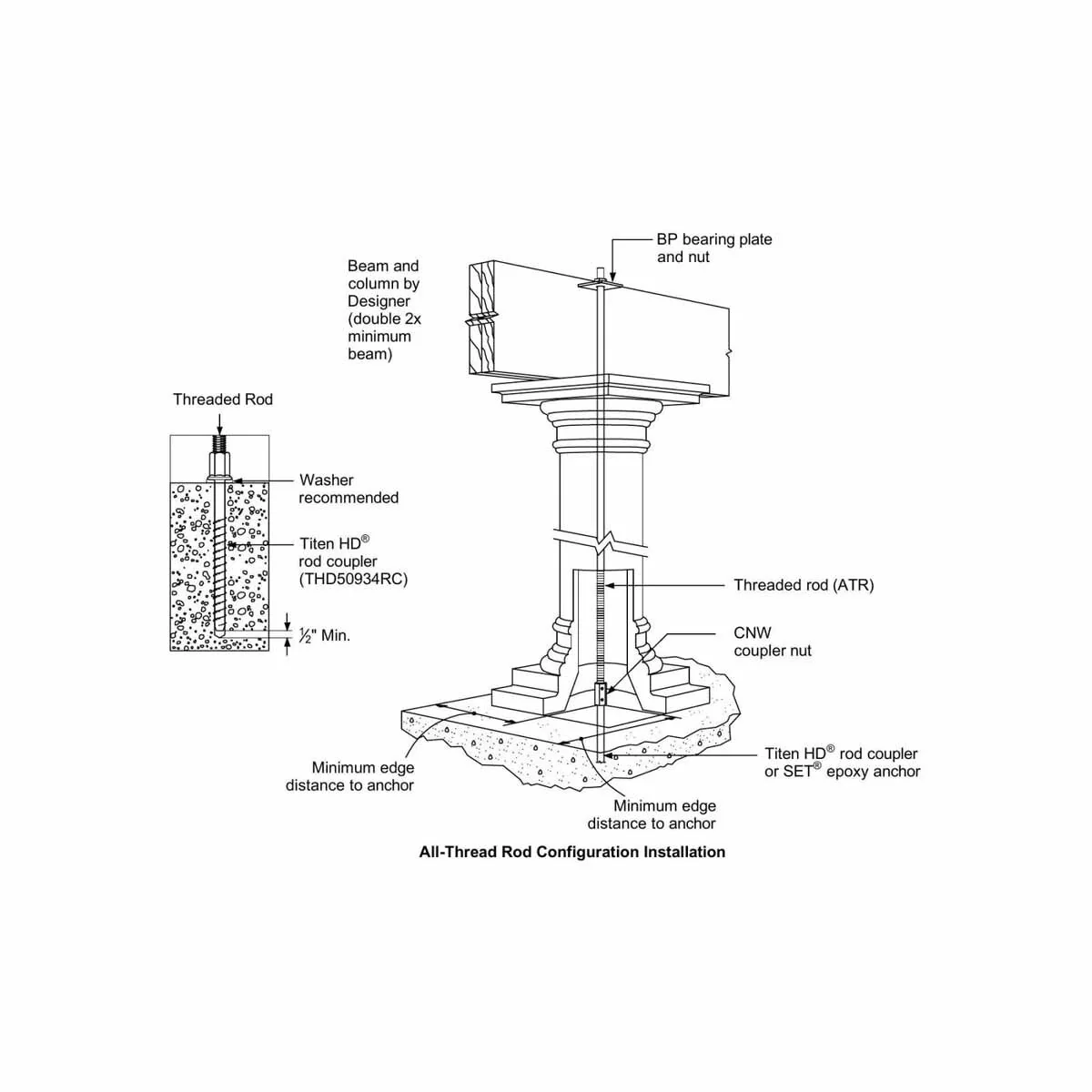

Simpson Strong-Tie ATR1X24 Installation Overview
- Drill holes 1/4" larger than the rod diameter
- Insert the rod through the drilled holes in the flooring system
- Ensure continuous drilling action through the sole plate and flooring system
Simpson Strong-Tie ATR1X24 Specifications
| Diameter | 1" |
| Length | 24" |
| Material | Low carbon steel |
| Finish | Plain |
| Thread Type | UNC Class 2A or 1A |
| Allowable Tension Capacity | 17,080 lbs |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
