3M FP-301-1.5-Black-100 Heat Shrink Thin-Wall Tubing : 100 ft spool length (7000005975) (2 Pack)
3M 7000005975 Description

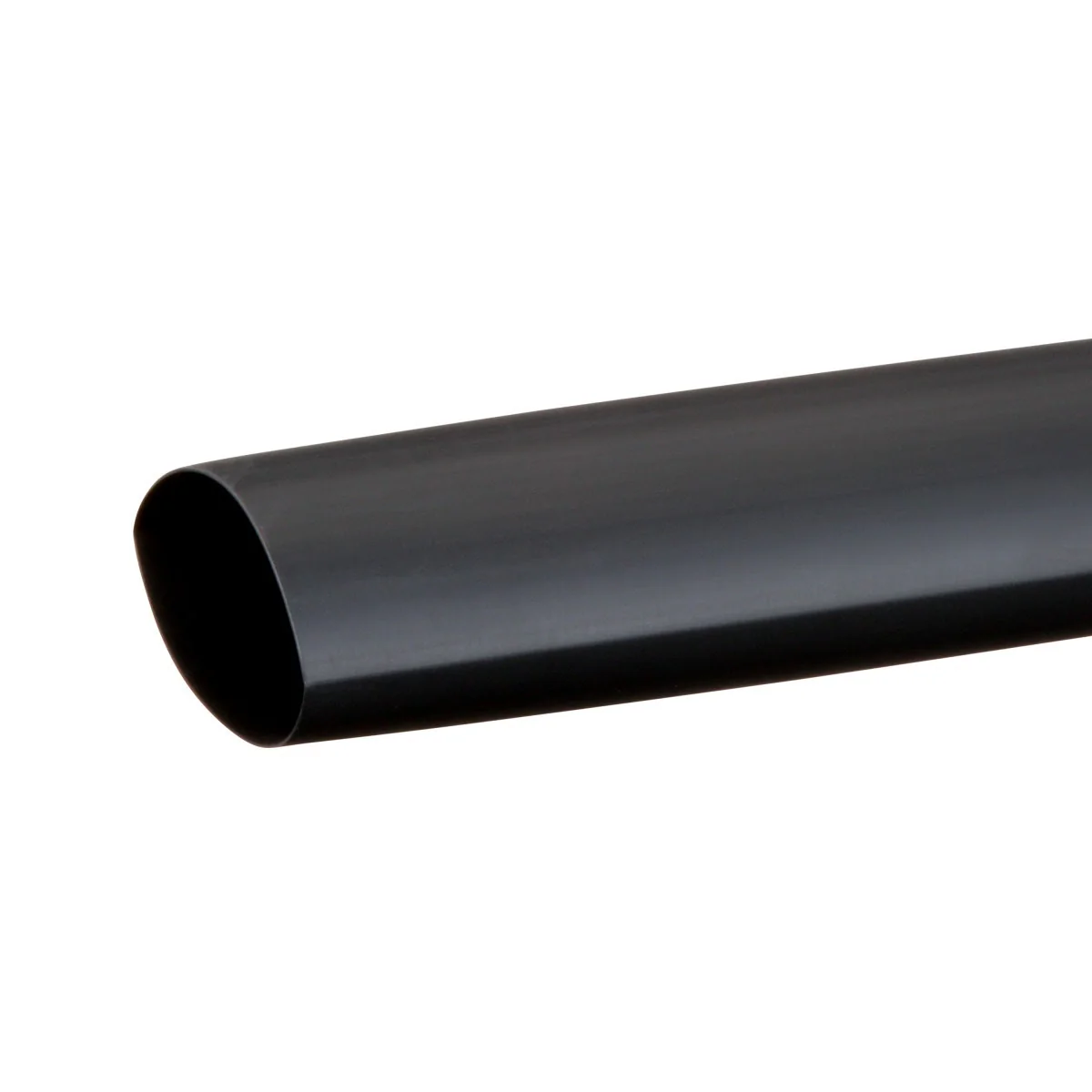

3M Heat Shrink Tubing FP-301 is a general purpose thin wall tubing that provides a balance of electrical physical and chemical properties making it ideal for industrial and military applications. It has a 2 to 1 shrink ratio and provides flame retardant insulation for 600V rated applications. The flexible polyolefin construction offers moisture seal protection.
3M 7000005975 Includes
- (2) - 3M 7000005975 Heat Shrink Thin-Wall Tubing FP-301-1.5-Black-100: 100 ft spool length
3M 7000005975 Features
- 2 to 1 shrink ratio for shrink fit protection
- Flame retardant insulation for applications up to 600V
- Flexible polyolefin construction provides moisture seal protection
- Thin wall single wall tubing for lightweight wire harness covering
- Resists cold flow and is split resistant
- Maximum operating temperature 275 Degree Fahrenheit 135 Degree Celsius
- UL Listed and CSA Certified
- RoHS 2011 65 EU compliant without exemption
3M 7000005975 Specifications
| Color | Black |
| Shrink Ratio | 2:1 |
| Inner Diameter Before Shrink | 1.5 in |
| Inner Diameter After Shrink | 0.75 in |
| Overall Length | 100 ft |
| Material | Flexible Polyolefin |
| Voltage Rating | 600V |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Product Length (in) | 21 |
| Product Width (in) | 21 |
| Product Height (in) | 3 |
| Shipping Weight (lb) | 6.660164940605152 |
