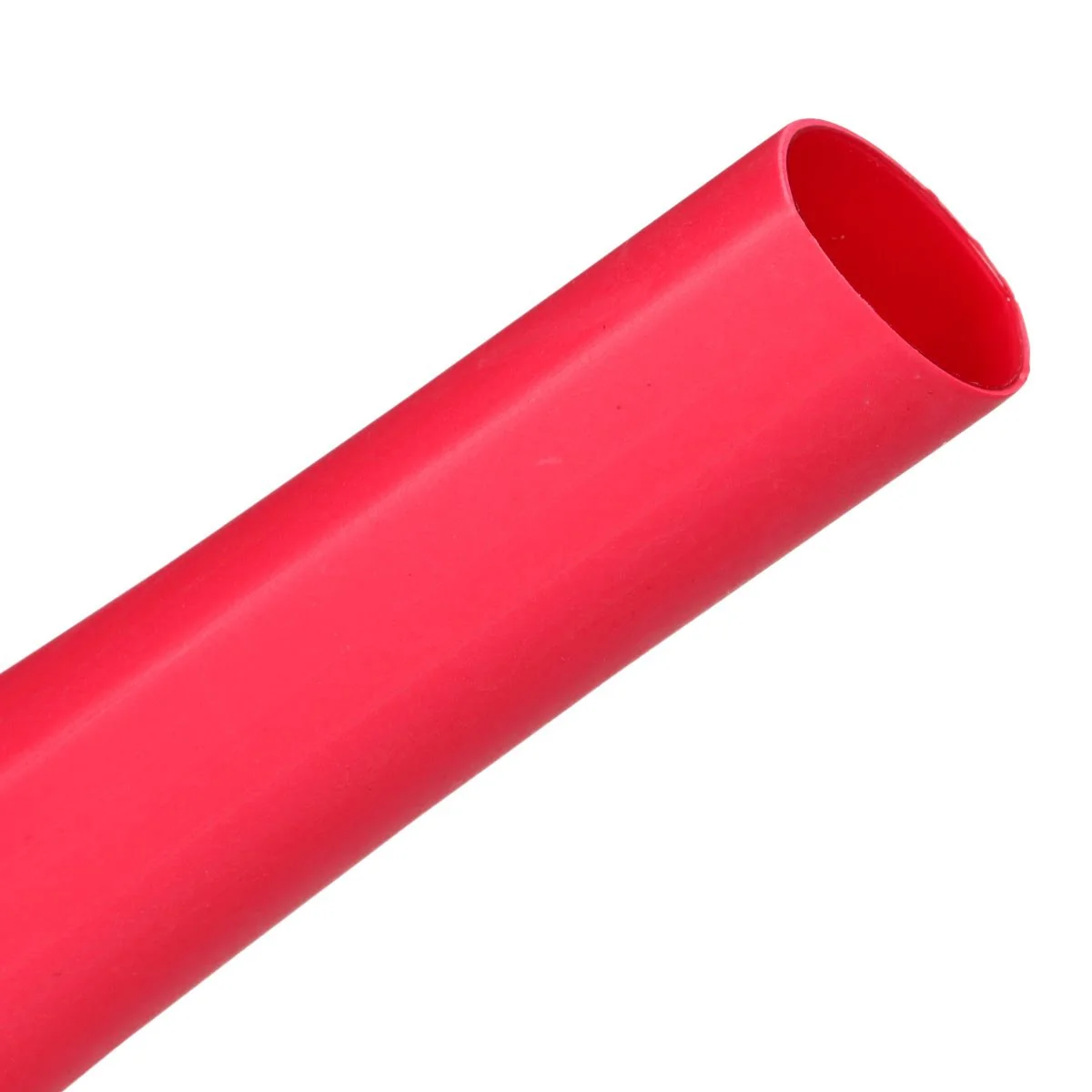

3M E30.750RD6"P Thin-Wall Heat Shrink Tubing EPS-300 Adhesive-Lined Red 3/4 in x 6 in Sticks (7000133686) (100 Pack)
3M 7000133686 Description
3M Heat Shrink Tubing EPS-300 is a dual wall tubing with an integral adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive to help provide a moisture seal for automotive and marine applications.
3M 7000133686 Includes
- (100) - 3M 7000133686 Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/4-6"-Red, 6 in length sticks (E30.750RD6"P)
3M 7000133686 Features
- Dual wall, adhesive lined construction helps seal out moisture
- 3:1 shrink ratio for a snug fit over splices and harnesses
- Flame retardant tubing rated for 600V applications
- Durable polyolefin outer wall resists abrasion
- Suitable for automotive and marine environments
3M 7000133686 Specifications
| Product Type | Heat Shrink Tubing |
| Series | EPS-300 |
| Tubing Type | Dual Wall (Adhesive Lined) |
| Color | Red |
| Material | Polyolefin |
| Shrink Ratio | 3:1 |
| Expanded Inner Diameter | 0.75 in |
| Recovered Inner Diameter | 0.25 in |
| Overall Length | 6 in |
| Voltage Rating | 600V |
| Operating Temperature Range | -67 Degree F to 230 Degree F |
Original: $404.80
-70%$404.80
$121.44Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
3M 7000133686 Description
3M Heat Shrink Tubing EPS-300 is a dual wall tubing with an integral adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive to help provide a moisture seal for automotive and marine applications.
3M 7000133686 Includes
- (100) - 3M 7000133686 Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/4-6"-Red, 6 in length sticks (E30.750RD6"P)
3M 7000133686 Features
- Dual wall, adhesive lined construction helps seal out moisture
- 3:1 shrink ratio for a snug fit over splices and harnesses
- Flame retardant tubing rated for 600V applications
- Durable polyolefin outer wall resists abrasion
- Suitable for automotive and marine environments
3M 7000133686 Specifications
| Product Type | Heat Shrink Tubing |
| Series | EPS-300 |
| Tubing Type | Dual Wall (Adhesive Lined) |
| Color | Red |
| Material | Polyolefin |
| Shrink Ratio | 3:1 |
| Expanded Inner Diameter | 0.75 in |
| Recovered Inner Diameter | 0.25 in |
| Overall Length | 6 in |
| Voltage Rating | 600V |
| Operating Temperature Range | -67 Degree F to 230 Degree F |
