3M E30.500RD6in Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/2 in Red, 6 in Piece (7010396537) (400 Pack)
3M 7010396537 Description

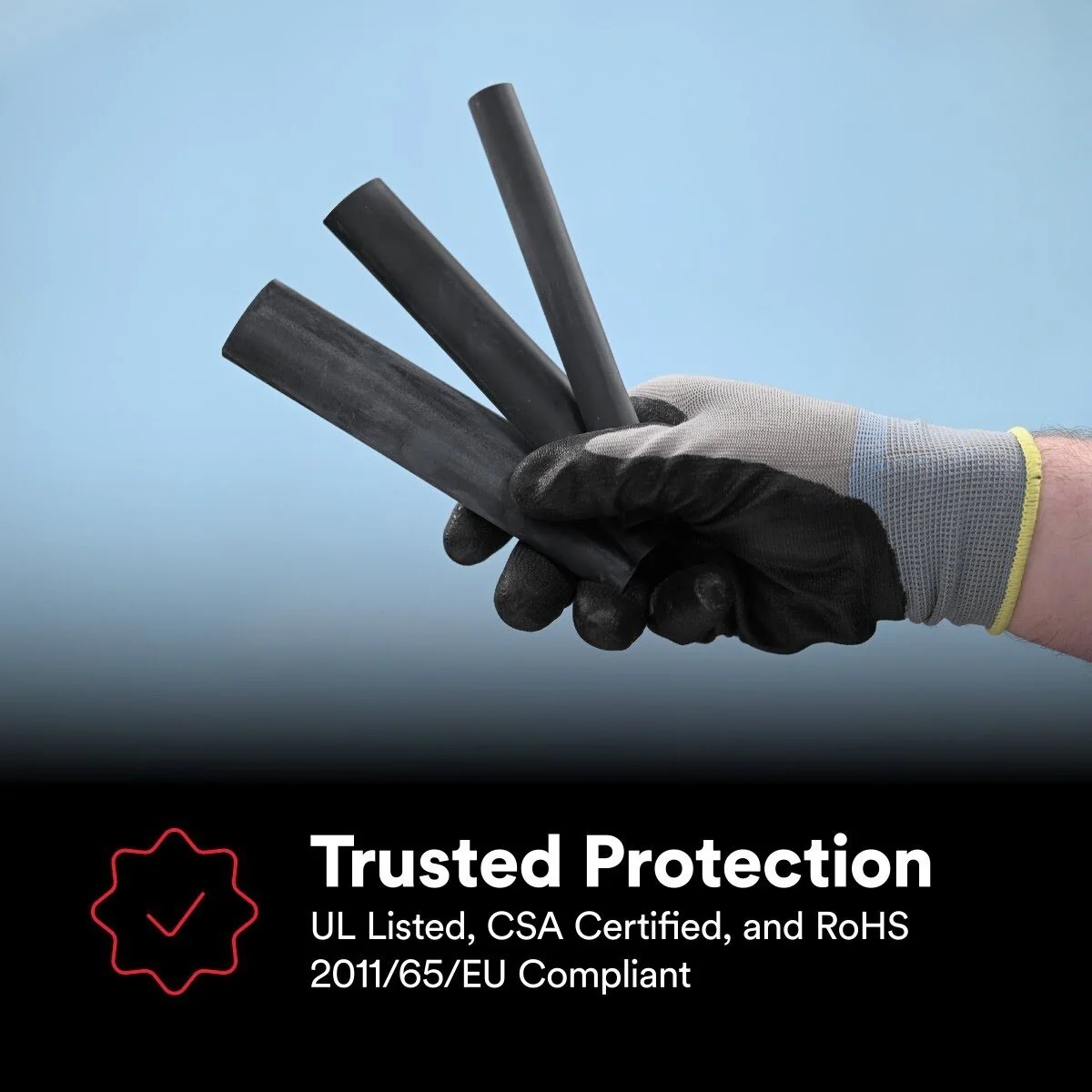

3M Heat Shrink Tubing EPS-300 is a thin-wall, dual-wall, adhesive-lined polyolefin tubing designed to insulate and seal wire splices, bundles, and harness breakouts. It provides moisture-seal protection with a 3:1 shrink ratio, is flame-retardant, and is rated for 600V applications, making it well-suited for automotive and marine environments.
3M 7010396537 Includes
- (400) Heat Shrink Tubing, 6 in Pieces
3M 7010396537 Features
- Dual-wall, adhesive-lined construction helps seal out moisture
- 3:1 shrink ratio for a tight, skintight fit and strain relief
- Flame-retardant tubing for added protection
- Rated for 600V insulation applications
- Flexible polyolefin outer wall helps resist abrasion
- Helps form a permanent, water-resistant barrier after cooling
- Operating temperature range: -67 to 230 Degree F (-55 to 110 Degree C)
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
- Color coded red for quick wire identification
- Ideal for electronic components, wire splices, wire bundles, and harness breakouts
- Suitable for automotive and marine applications
3M 7010396537 Specifications
| Product Type | Thin-Wall Heat Shrink Tubing |
| Series | EPS-300 |
| Construction | Dual wall, adhesive lined |
| Color | Red |
| Shrink Ratio | 3:1 |
| Voltage Rating | 600 V |
| Inner Diameter Before Shrink | 0.5 in |
| Inner Diameter After Shrink | 0.16 in |
| Piece Length | 6 in |
| Maximum Operating Temperature | 230 Degree Fahrenheit (110 Degree Celsius) |
| Operating Temperature Range | -67 to 230 Degree Fahrenheit (-55 to 110 Degree Celsius) |
| Certifications | UL Listed, CSA Certified |
| Compliance | RoHS 2011/65/EU |
| Part Number | E30.500RD6in |
| Case Quantity | 400 |
$448.94
3M E30.500RD6in Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/2 in Red, 6 in Piece (7010396537) (400 Pack)ā
$448.94
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
3M 7010396537 Description
3M Heat Shrink Tubing EPS-300 is a thin-wall, dual-wall, adhesive-lined polyolefin tubing designed to insulate and seal wire splices, bundles, and harness breakouts. It provides moisture-seal protection with a 3:1 shrink ratio, is flame-retardant, and is rated for 600V applications, making it well-suited for automotive and marine environments.
3M 7010396537 Includes
- (400) Heat Shrink Tubing, 6 in Pieces
3M 7010396537 Features
- Dual-wall, adhesive-lined construction helps seal out moisture
- 3:1 shrink ratio for a tight, skintight fit and strain relief
- Flame-retardant tubing for added protection
- Rated for 600V insulation applications
- Flexible polyolefin outer wall helps resist abrasion
- Helps form a permanent, water-resistant barrier after cooling
- Operating temperature range: -67 to 230 Degree F (-55 to 110 Degree C)
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
- Color coded red for quick wire identification
- Ideal for electronic components, wire splices, wire bundles, and harness breakouts
- Suitable for automotive and marine applications
3M 7010396537 Specifications
| Product Type | Thin-Wall Heat Shrink Tubing |
| Series | EPS-300 |
| Construction | Dual wall, adhesive lined |
| Color | Red |
| Shrink Ratio | 3:1 |
| Voltage Rating | 600 V |
| Inner Diameter Before Shrink | 0.5 in |
| Inner Diameter After Shrink | 0.16 in |
| Piece Length | 6 in |
| Maximum Operating Temperature | 230 Degree Fahrenheit (110 Degree Celsius) |
| Operating Temperature Range | -67 to 230 Degree Fahrenheit (-55 to 110 Degree Celsius) |
| Certifications | UL Listed, CSA Certified |
| Compliance | RoHS 2011/65/EU |
| Part Number | E30.500RD6in |
| Case Quantity | 400 |
