3M 804-POUCH Electrical IDC Insulation Displacement Connector, Blue, 18-16 AWG Solid/Stranded, 14 AWG Stranded, Self Stripping, Moisture Resistant (7100167045) (250 Pack)
3M 7100167045 Description

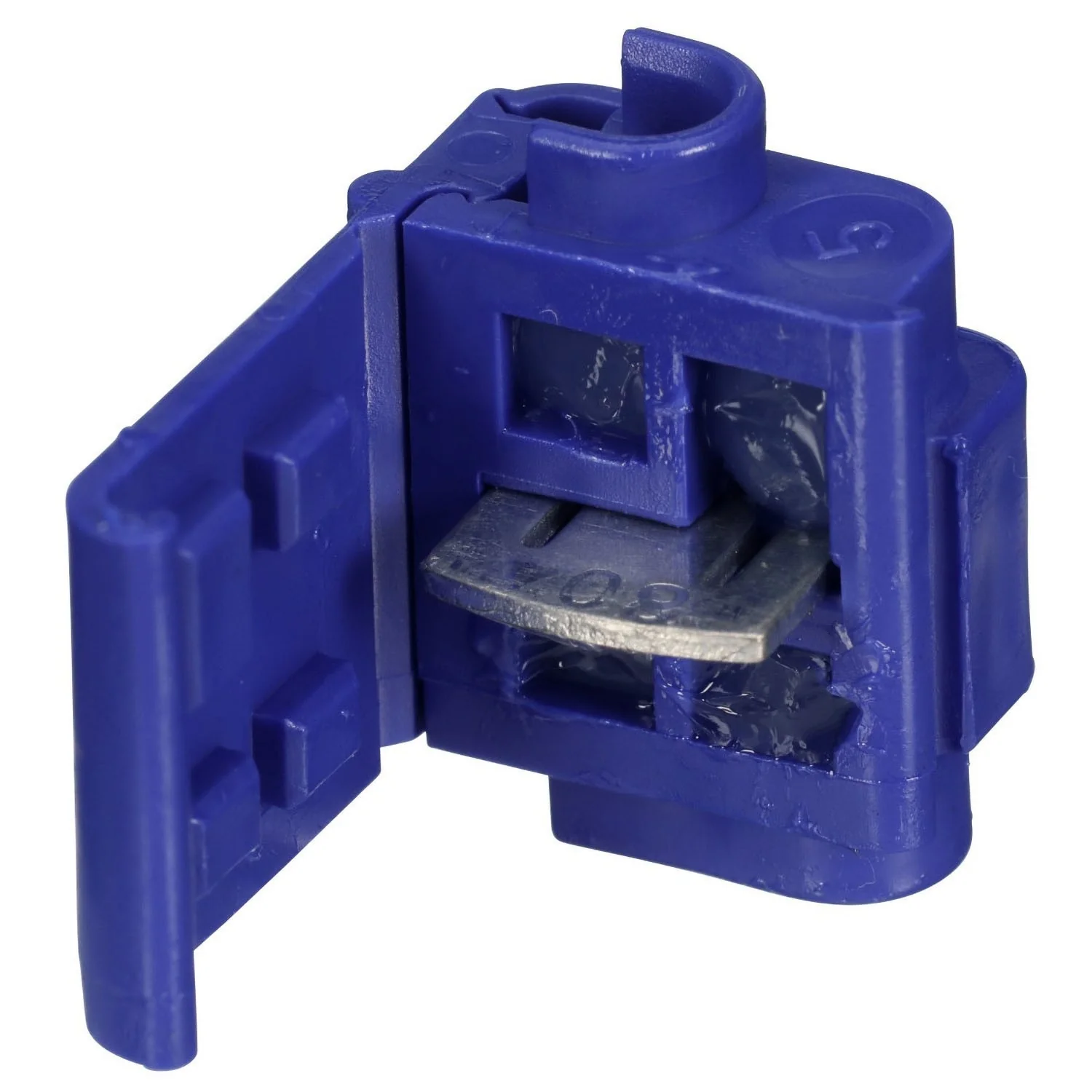

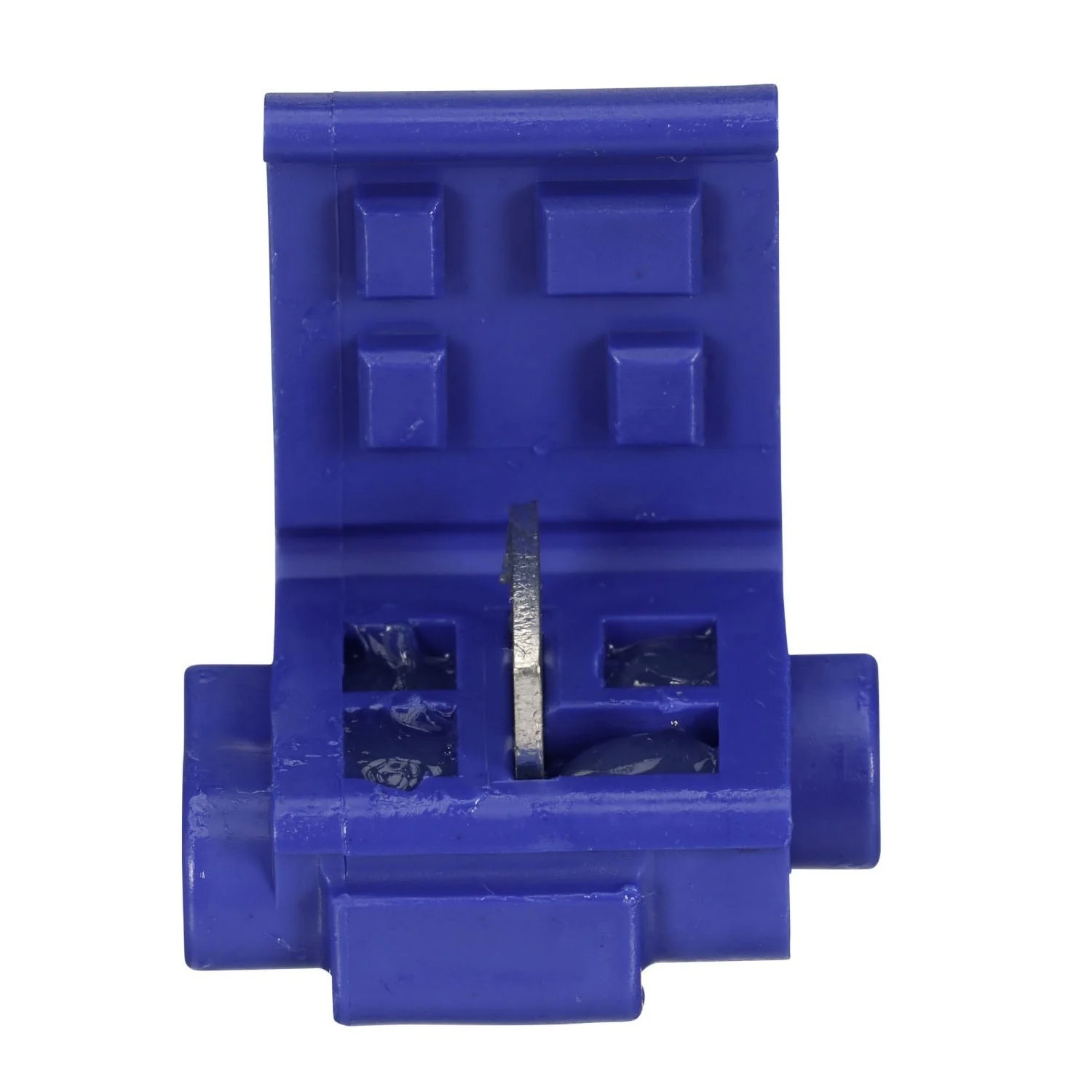

3M Scotchlok Insulation Displacement Connector 804 electrically connects a tap wire to a run (through) wire while insulating the connection. The polypropylene-insulated, self-stripping connector helps provide a moisture-resistant seal and comes 25 per pouch.

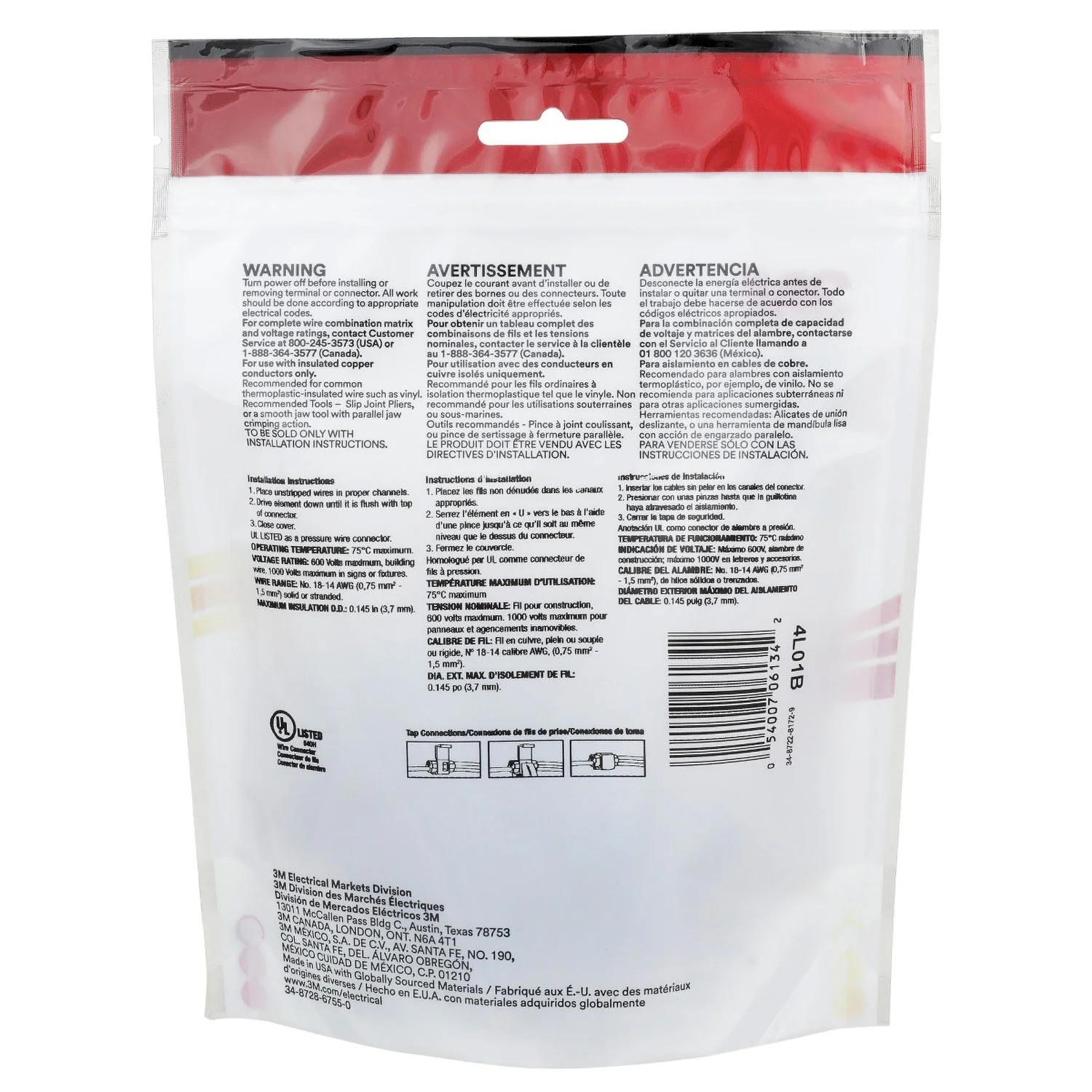

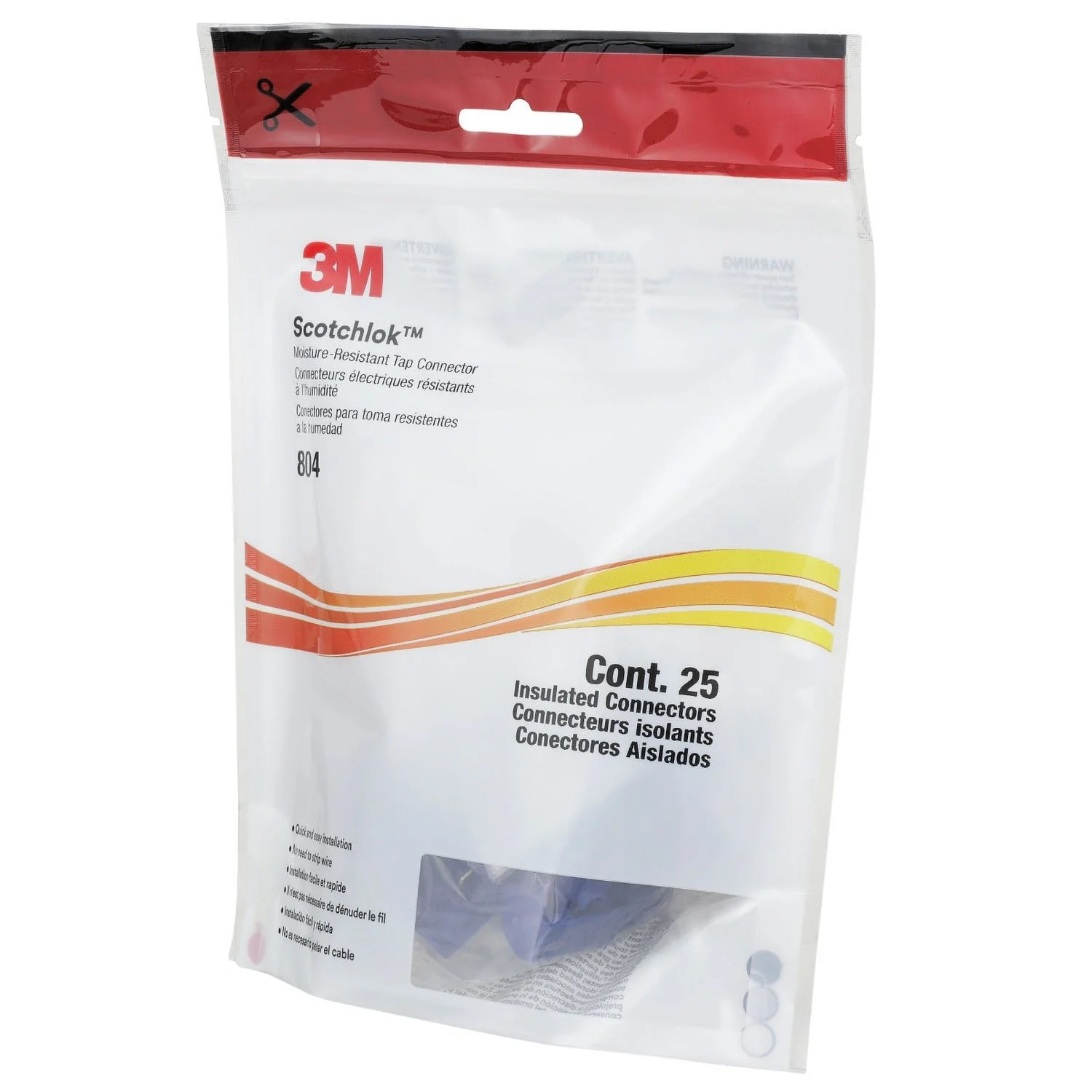

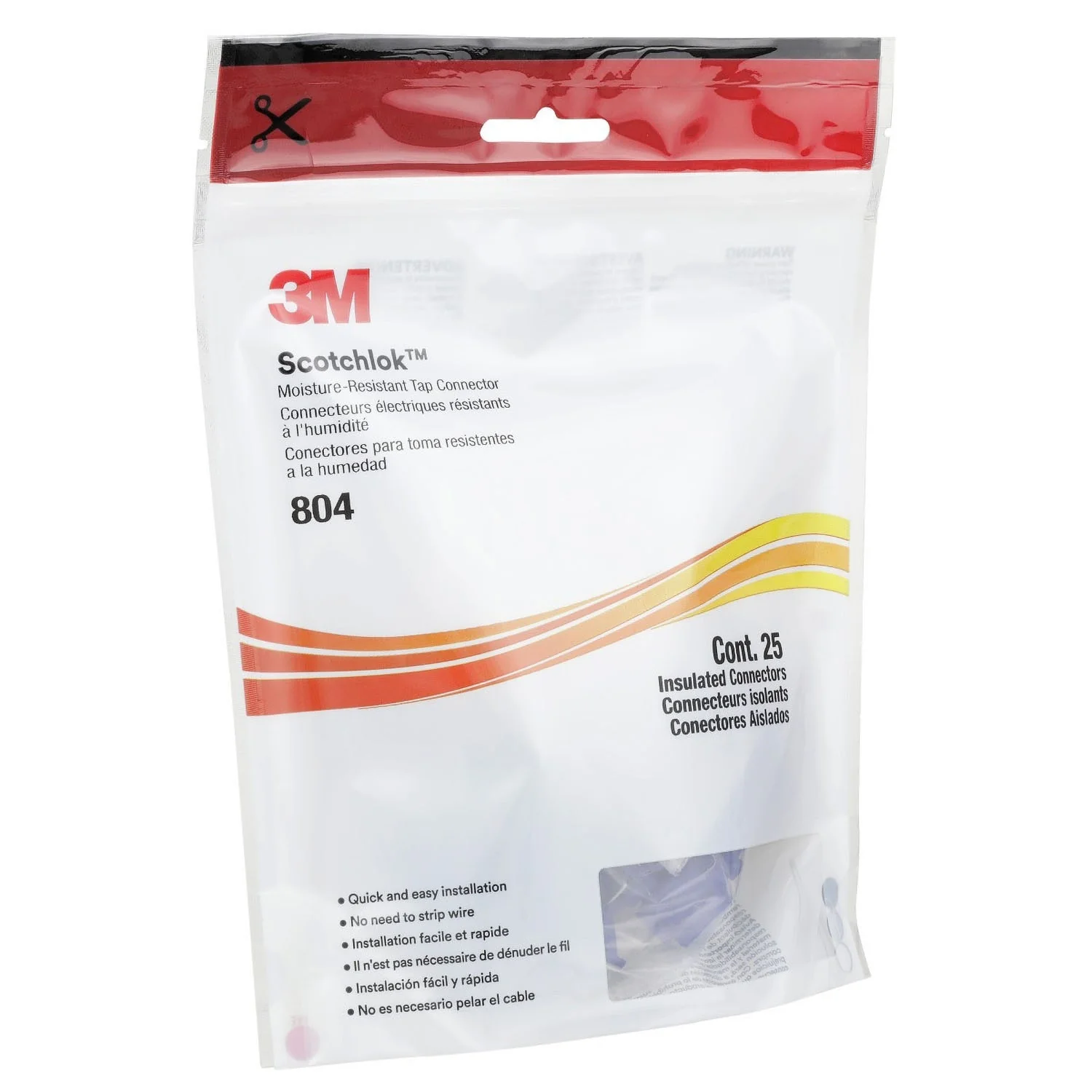

3M 7100167045 Includes
- (250) - 3M 7100167045 Scotchlok Electrical IDC 804-POUCH, Blue, 18-16 AWG (solid/stranded), 14 AWG (stranded), Insulation Displacement Connector 804, Self Stripping
3M 7100167045 Features
- Electrically taps a wire mid-span without cutting the run (through) wire

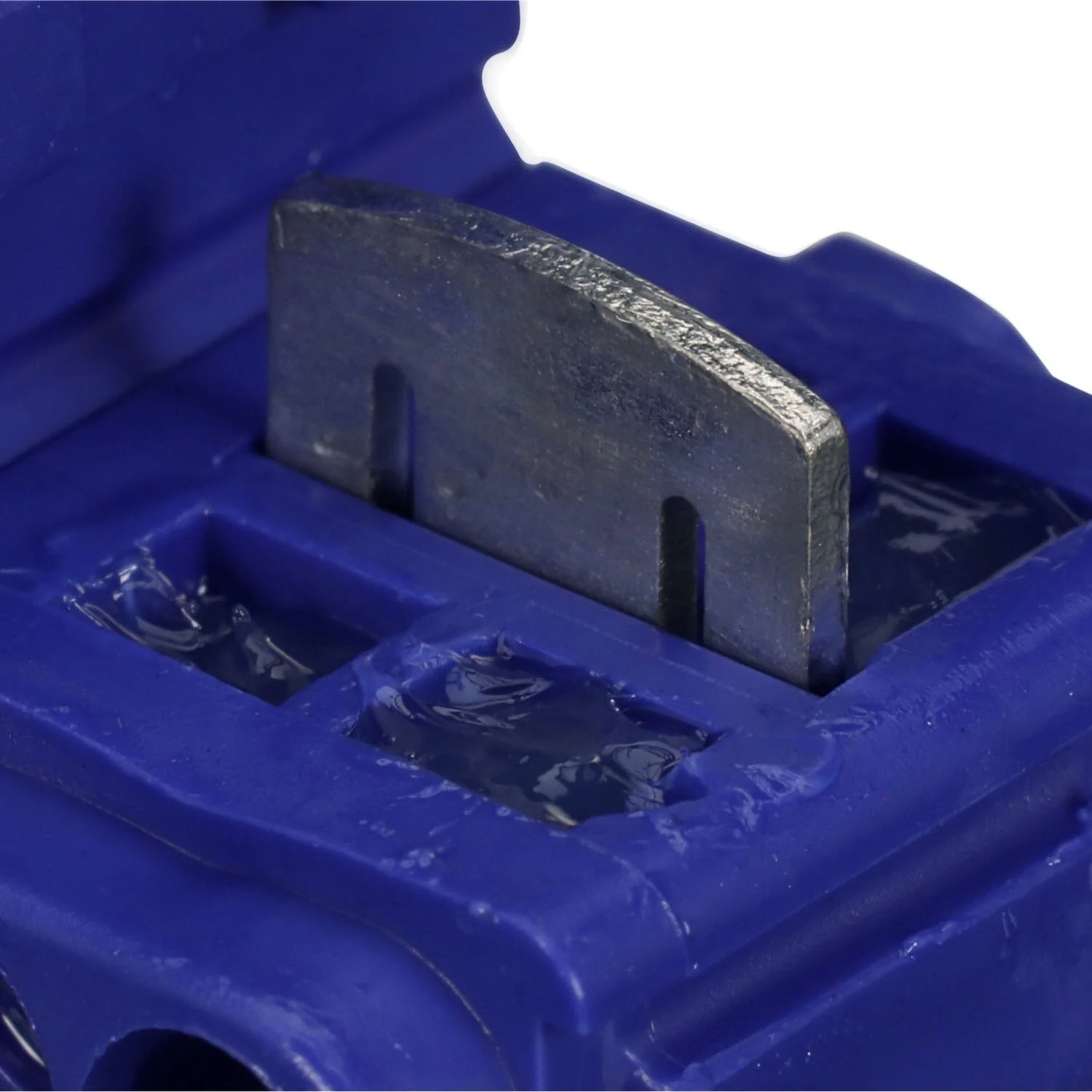

- Self stripping design helps eliminate the need to strip wire insulation
- Moisture resistant seal for more durable connections
- Grease filled to help resist corrosion
- Works with 18-16 AWG (solid/stranded) and 14 AWG (stranded) conductors
- Maximum recommended voltage rating: 600 V
- UL Listed and RoHS 2011/65/EU compliant
- Recommended crimping tools: 3M Crimping Tool E-9BM or 9 in Linemans Pliers
- Maximum operating temperature: 194 Degree Fahrenheit (90 Degree Celsius)

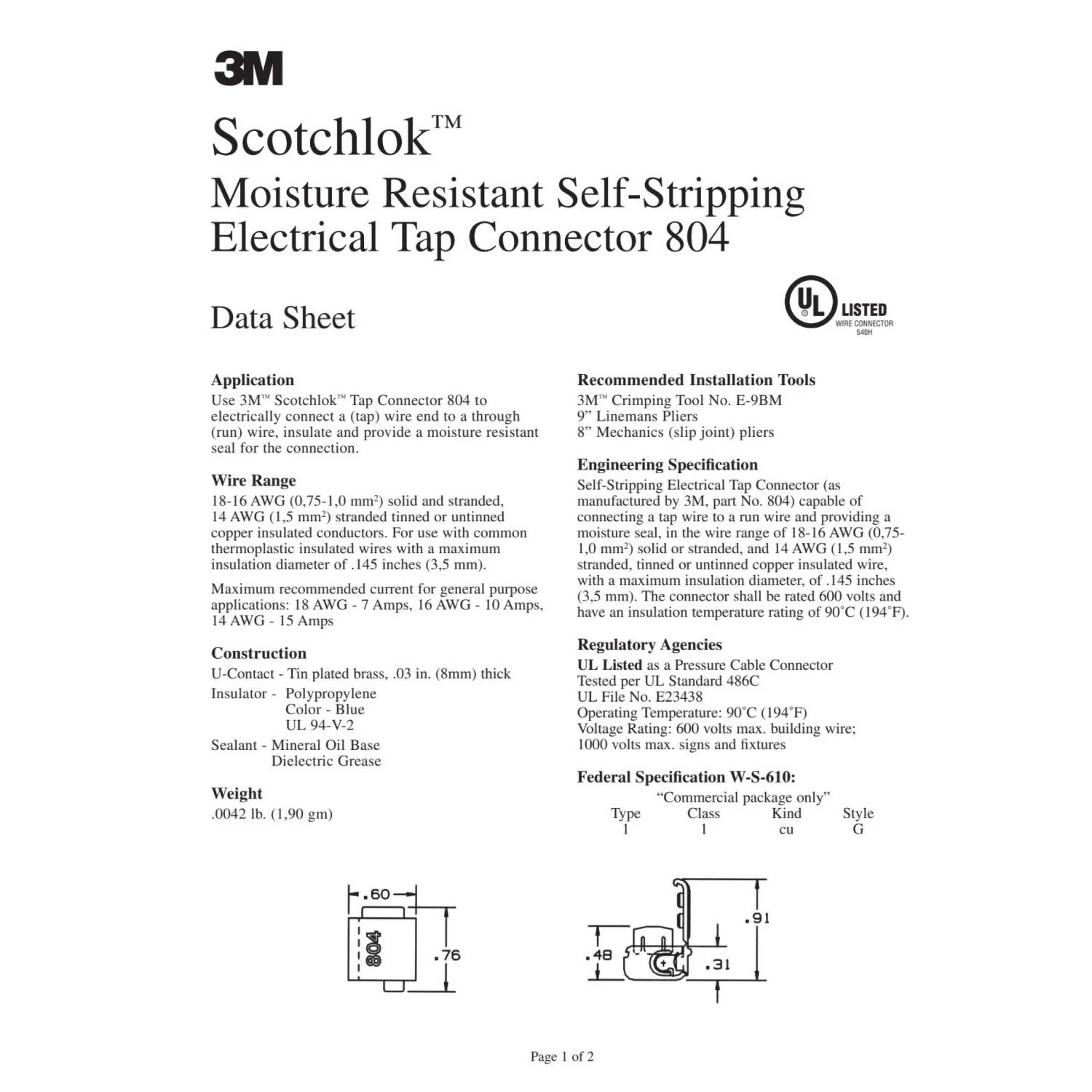

3M 7100167045 Specifications
| Sub Brand | Scotchlok |
| Part Number | 804-POUCH |
| Product Type | Connector |
| Wire Connector Type | IDC Connectors |
| Connector Style | Insulation Displacement |
| Connection Type | Run & Tap |
| Color | Blue |
| Package Quantity | 25 per pouch |
| Minimum Conductor Size | 18 AWG |
| Maximum Conductor Size | 14 AWG (Stranded) |
| Maximum Recommended Voltage Rating | 600 V |
| Moisture Resistant | Yes |
| Grease Filling Against Corrosion | Yes |
| Insulation Material | Nylon |
| Flame Retardant | UL-94 V-2 |
| Recommended Crimping Tool | E-9BM or 9 in Linemans Pliers |
| Maximum Operating Temperature | 194 Degree Fahrenheit (90 Degree Celsius) |
| Product Length (in) | 6.5 |
| Product Width (in) | 3.0 |
| Product Height (in) | 8.5 |
| Shipping Weight (lb) | 0.1674984083 |
